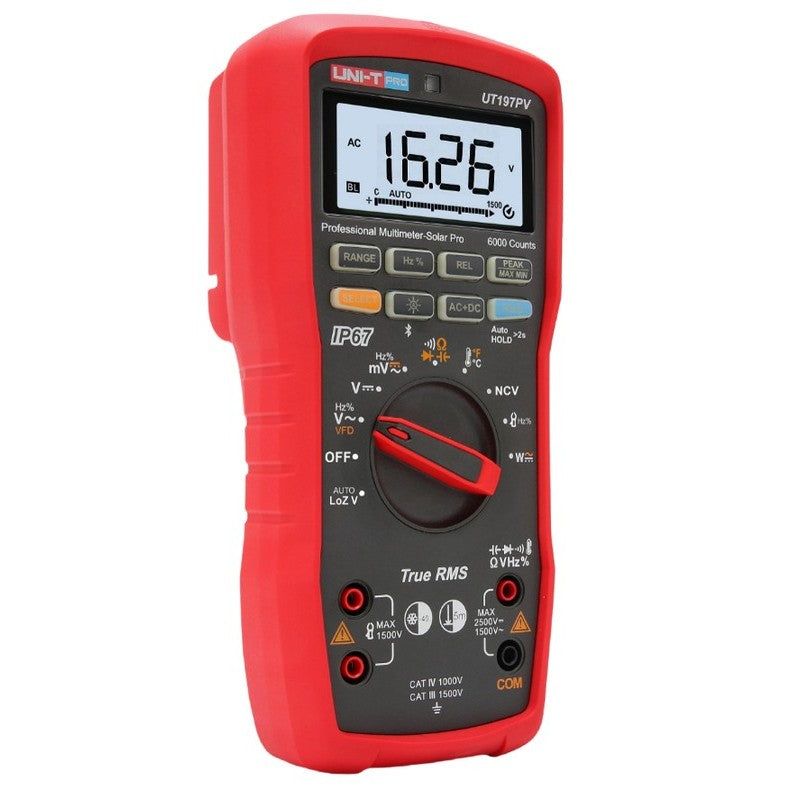

UT197PV Solar Pro Industrial TRMS Digital Multimeter with Bluetooth
$440.00
6000 count True RMS digital multimeter, CAT III 1500V/CAT IV 1000V. Reliable measurement tool for electrical professionals and technicians.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UT197PV Solar Pro Industrial TRMS Digital Multimeter with Bluetooth
Product Details
UPC: 6935750519714
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/Meter%20Datasheets/UT197PV%20datasheet_compressed.pdf
Equipment Type: Industrial Meter
The UT197PV is the photovoltaic build of the rugged True-RMS industrial multimeter: rated CAT IV 1000 V / CAT III 1500 V, sealed to IP67, and rated for a 5 m drop, with voltage ranges raised to 2500 V DC and 1500 V AC for photovoltaic strings and combiners.
Beyond AC/DC voltage and current, it measures power directly — active, apparent, and reactive, with power factor — so load behavior can be read rather than inferred from volts and amps. True-RMS sensing, a low-impedance mode, VFC/VFD mode, a loop-read function, non-contact voltage detection, and a Bluetooth app round out the set.
It suits solar field work and high-voltage industrial measurement where direct power readings are useful.
Key Features
- Max Resistance=60MΩ
Specifications
| DC Voltage In | 2500 V |
| AC Voltage In | 1500 V |
| DC Current In | 1000 A |
| AC Current In | 1000 A |
| AC DC Combined | Yes |
| Frequency | 999.9 kHz |
| Capacitance | 60 mF |
| Max Resistance | 60 MΩ |
| Thermocouple Range | -40 °C to 1000 °C |
| Active Power | 1500 kW |
| Apparent Power | 1500 kVA |
| Reactive Power AC | 1500 kVAr |
| Power DC | 2500 kVA |
| Power Factor | -1 to 1 |
| True RMS | Yes |
| NCV | Yes |
| LoZ Function | Yes |
| VFC VFD | Yes |
| Continuity | Yes |
| Duty Cycle | Yes |
| Loop Read | Yes |
| Auto Ranging | Yes |
| Relative Mode | Yes |
| Max Min | Yes |
| Peak Hold | Yes |
| Bluetooth App | Yes |
| CAT Rating | CAT IV 1000 V , CAT III 1500 V |
| IP Rating | IP67 |
| Drop Rating | 5m |
