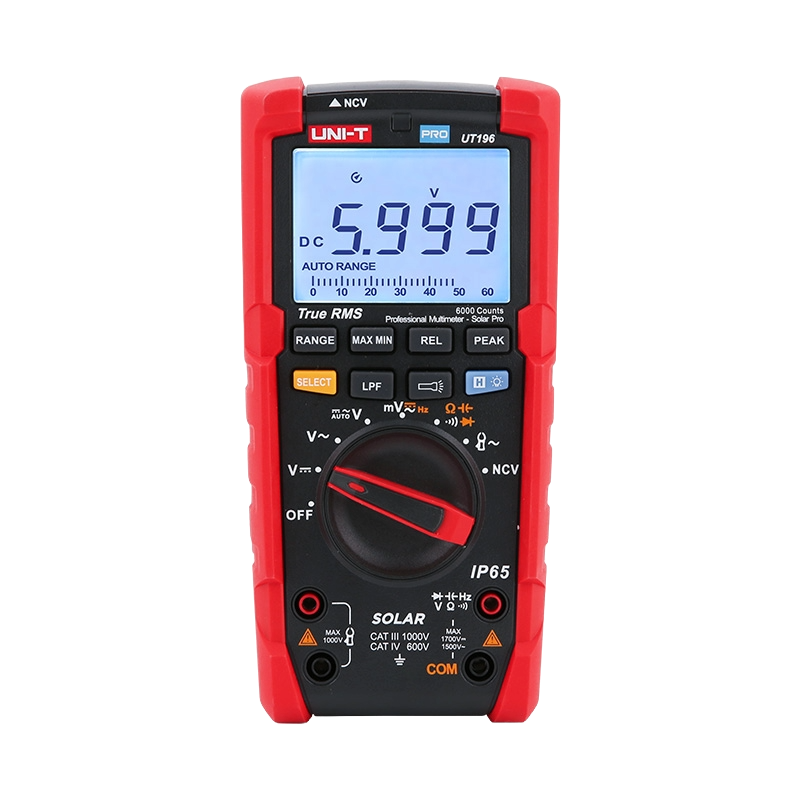

UT196 Solar Pro TRMS Multimeter
$219.00
True RMS multimeter rated to 1700V DC / 1500V AC, CAT III 1000V/CAT IV 600V. Purpose-built for solar installers and PV maintenance professionals.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UT196 Solar Pro TRMS Multimeter
Product Details
UPC: 6935750519622
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/Meter%20Datasheets/UT196%20Data%20Sheet.pdf
Equipment Type: Industrial Meter
The UT196 is a True-RMS digital multimeter built for photovoltaic work, rated to 1700 V DC and 1500 V AC with CAT III 1000 V / CAT IV 600 V safety — the voltage headroom string and combiner measurements need. It is sealed to IP65 and rated for a 2 m drop.
It measures DC voltage to 1700 V, AC voltage to 1500 V, resistance to 60 MΩ, capacitance to 60 mF, and frequency to 1 MHz, and an optional clamp sensor extends AC current measurement to 3000 A. True-RMS sensing handles distorted waveforms, a low-pass filter helps on inverter outputs, and a dual display, analog bar graph, non-contact voltage detection, and built-in flashlight support rooftop and outdoor use.
It suits solar installation and maintenance and other high-voltage field measurement.
Key Features
- Max Resistance=60MΩ
Specifications
| DC Voltage | 1700 V, ±(0.2% + 5) |
| AC Voltage | 1500 V, ±(0.8% + 3) |
| AC Current (with clamp sensor) | up to 3000 A |
| Frequency | 1 MHz, ±(0.08% + 4) |
| Resistance | 60 MΩ, ±(0.8% + 2) |
| Capacitance | 60 mF, ±(1.9% + 5) |
| Display Count | 6000 |
| True RMS | Yes |
| Dual Display | Yes |
| Frequency Response | 45 Hz to 1 kHz |
| Low-Pass Filter (LPF) | Yes |
| NCV | Yes |
| Analog Bar Graph | Yes |
| Safety Rating | CAT III 1000 V, CAT IV 600 V |
| IP Rating | IP65 |
| Drop Protection | 2m |
| Auto Power Off | 15 min |
| Flashlight | Yes |
