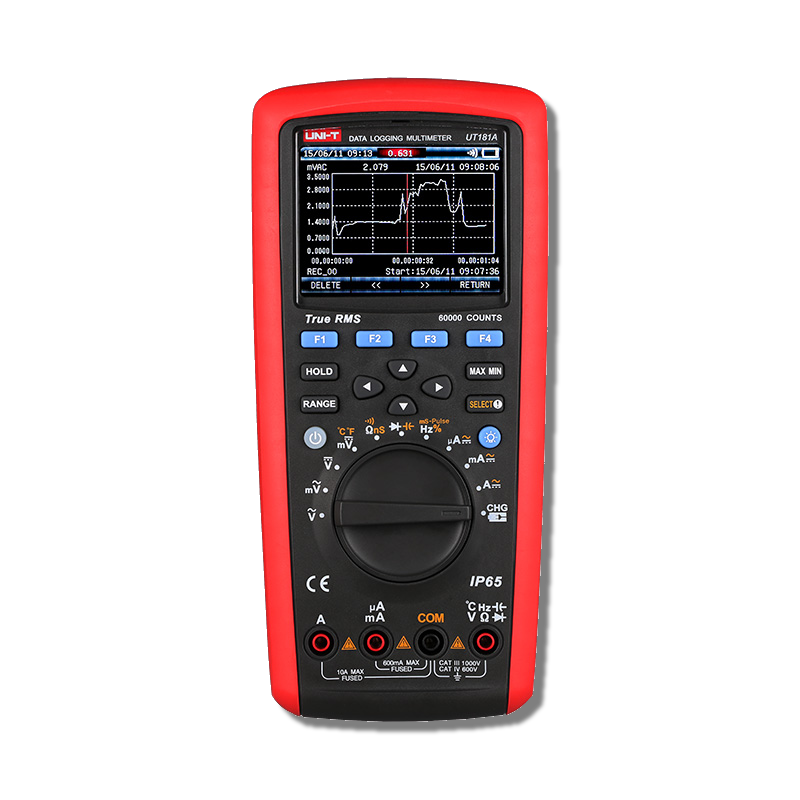

UNI-T UT181A True RMS Datalogging Multimeter

Professional-Grade Measurement with Advanced Data Analysis Capabilities

The UNI-T UT181A represents the pinnacle of portable measurement technology, combining laboratory-grade precision with comprehensive data logging and analysis features. Designed for engineers, industrial technicians, and electrical professionals who demand both accuracy and analytical capabilities, this advanced multimeter transforms complex electrical analysis with its color TFT display, extensive measurement functions, and intelligent data management.

Key Features

• High-Resolution Color Display: 3.5" TFT LCD with 320x240 resolution shows multiple measurements simultaneously
• Professional 60,000 Count Resolution: Delivers exceptional measurement precision for demanding applications
• Comprehensive Data Logging: Store up to 20,000 measurement sets with trend capture visualization
• True RMS Measurement: Ensures accuracy on modern electronic and non-linear loads
• Wide Bandwidth Performance: 100kHz bandwidth for AC with 10kHz for AC+DC measurements
• Dual Temperature Channels: Measure two points simultaneously with differential calculation
• Rechargeable Power System: 2000mAh Li-ion battery with included power adapter
• Rugged Industrial Design: IP65 water and dust protection for harsh environments
• Advanced Connectivity: USB interface with optional Bluetooth capability (UT-D07A adapter)
• Premium Safety Rating: CAT III 1000V and CAT IV 600V certified for industrial applications

UNI-T UT181A Details

Advanced Measurement Technology

The UNI-T UT181A sets a new standard for portable measurement with exceptional accuracy across all measurement functions. The DC voltage measurement delivers laboratory-grade ±(0.025%+5) precision, while True RMS AC measurements maintain accuracy across a wide 100kHz bandwidth. This professional-level performance ensures reliable readings in complex electronic systems, variable frequency drives, and sensitive control equipment.

The multimeter's 60,000 count resolution provides detailed measurement granularity that reveals subtle variations ordinary meters would miss. This precision is essential when calibrating instruments, analyzing sensitive electronic circuits, or troubleshooting complex industrial systems where small measurement variations can indicate significant issues.

Comprehensive Visualization & Analysis

The UNI-T UT181A transforms measurement data into actionable insights through its advanced display and analysis capabilities. The 3.5" color TFT screen presents multiple measurement parameters simultaneously, while the trend capture function creates real-time visual graphs of measurement variations. This graphical representation immediately reveals patterns, transients, and relationships that would be impossible to detect with standard numerical displays.

The intelligent data management system supports MAX/MIN/AVG recording, measurement comparison, and extensive data logging with storage for up to 20,000 measurement sets. This comprehensive approach allows professionals to document system performance over time, identify intermittent issues, and establish performance baselines for preventive maintenance programs.

Industrial-Grade Durability

Engineered for professional use in demanding environments, the UNI-T UT181A features robust IP65 protection against dust and water ingress. The double-molded housing provides impact resistance and secure grip, while premium internal components ensure measurement stability across temperature extremes and harsh industrial conditions.

The professional safety certification to CAT III 1000V and CAT IV 600V standards ensures proper protection when working on industrial equipment, power distribution systems, and utility-level applications. This comprehensive protection allows confidence when measuring in high-energy environments where safety is paramount.

Intelligent Power Management

The UNI-T UT181A features a sophisticated power system built around a rechargeable 7.4V 2000mAh Li-ion battery that provides extended operation for field measurements and long-term data logging. The included power adapter enables convenient recharging without removing the battery, while intelligent power management features maximize operational time between charges.

The smart battery system includes comprehensive charge status indication and controlled shutdown procedures that protect measurement data. This professional approach to power management ensures reliable operation during critical measurements and extended monitoring applications where consistent performance is essential.

Professional Applications

Industrial Maintenance & Troubleshooting

Industrial maintenance professionals rely on the UNI-T UT181A for comprehensive system analysis:

• Motor and drive system performance verification
• Power quality assessment with harmonic analysis
• Temperature differential measurement for thermal analysis
• Long-term monitoring of intermittent equipment issues
• Preventive maintenance data collection and trending

Research & Development Engineering

R&D engineers leverage advanced measurement capabilities for product development:

• Precision component characterization and verification
• Power consumption profiling across operating modes
• Temperature response testing with dual sensors
• Long-term performance stability testing
• Detailed measurement documentation for design validation

Quality Assurance & Manufacturing

Quality specialists depend on accurate verification across production:

• Incoming component verification
• Manufacturing process validation
• Final product performance testing
• Calibration verification for production test equipment
• Statistical data collection for quality trending

Field Service & Commissioning

Field technicians utilize comprehensive capabilities for efficient service:

• System commissioning verification
• Performance validation against specifications
• Issue diagnosis with trend capture
• Documentation of system parameters
• Pre/post service measurement comparison

Technical Specifications

Advanced Features

• Display Count: 60,000
• Auto/Manual Range Selection
• True RMS Measurement
• Bandwidth: 100kHz for AC
• AC+DC Measurement Mode
• Low Pass Filter: 1kHz(-3dB)
• dBV/dBm Measurement
• Continuity Testing with Buzzer
• Diode Test: Approximately 3V
• Duty Cycle: 10%-90%
• Dual Temperature Measurement: T1,T2,T1-T2,T2-T1
• Data Hold and Peak Hold
• Relative Mode Measurement
• Data Logging: 20,000 measurements
• Trend Capture Visualization
• MAX/MIN/AVG Recording
• Date/Time Display
• Data Comparison Functions
• Mis-Plug Alarm Protection
• Auto Power Off
• Rechargeable Battery System
• Input Protection on All Ranges
• Input Impedance: Approximately 10MΩ

General Characteristics

• Power: 7.4V 2000mAh Li-ion Battery
• Display: 3.5" 64k Color TFT LCD (320 x 240)
• Product Color: Red and Grey
• Product Weight: 638.6g
• Product Dimensions: 103mm x 225mm x 59mm
• Environmental Protection: IP65 (dust and water resistant)
• Safety Certification: CAT III 1000V, CAT IV 600V

Package Contents

• UNI-T UT181A True RMS Datalogging Multimeter
• Test Leads
• Temperature Adapter
• Power Adapter for Charging
• Point Contact Temperature Probes (2)
• USB Cable
• Software CD
• Carrying Bag
• User Manual
• Warranty Card

Optional Accessories

• UT-D07A Bluetooth Adapter for smartphone connectivity

Product Comparison

Frequently Asked Questions

How does the trend capture function help with troubleshooting?

The trend capture function provides visual representation of measurement changes over time, immediately revealing patterns and anomalies that would be difficult to detect with standard numerical readings. This graphical visualization helps identify intermittent issues, cyclic variations, and subtle relationships between system parameters. Technicians can see gradual drift, sudden spikes, or oscillations that indicate specific fault conditions, dramatically reducing diagnostic time.

What advantages does the high-count resolution provide?

The 60,000 count resolution provides substantially more measurement detail than standard 6,000 count meters, revealing small variations that would otherwise be undetectable. This precision is critical when evaluating sensitive electronic circuits, verifying compliance with tight specifications, or measuring small signal changes that indicate developing issues before they cause system failure. The higher resolution essentially provides an additional digit of measurement precision.

How does the dual temperature measurement capability benefit maintenance technicians?

The dual temperature measurement allows simultaneous monitoring of two points with automatic differential calculation. This is invaluable for applications like evaluating heat exchangers, monitoring motor bearing temperatures relative to ambient conditions, or verifying thermal gradients across components. The differential calculation eliminates manual subtraction errors and provides immediate feedback on temperature relationships critical for system performance evaluation.

Can the UT181A handle measurements in variable frequency drive systems?

Yes, the UT181A is specifically designed for accurate measurements in modern electronic systems, including variable frequency drives. The True RMS measurement capability ensures accuracy regardless of waveform distortion, while the low-pass filter function eliminates high-frequency carrier signals that would otherwise cause measurement errors. The 100kHz bandwidth accommodates the wide frequency range present in modern motor control systems.

What is the warranty period for the UNI-T UT181A?

UNI-T provides a 12-month warranty on the UT181A, covering manufacturing defects and component failures under normal use conditions.

Customer Testimonials

"As an industrial maintenance engineer, the trend capture on the UT181A has transformed how I troubleshoot intermittent issues. I recently solved a recurring motor problem by logging data overnight and identifying voltage fluctuations that were impossible to catch with standard meters." - Robert J., Manufacturing Maintenance Supervisor

"The dual temperature channels on the UT181A have been essential for my HVAC diagnostic work. Being able to simultaneously measure supply and return temperatures while seeing the differential has cut my service call time significantly. The data logging capability lets me document system performance for customer reports." - Maria C., Commercial HVAC Specialist

"In our R&D lab, we rely on the precision of the UT181A for component characterization. The 60,000 count resolution and excellent accuracy give us confidence in our measurements, and the USB connectivity integrates perfectly with our documentation processes. It's been a workhorse tool for our development team." - Ahmad K., Electronics Design Engineer

Support and Warranty

UNI-T stands behind the UT181A with comprehensive technical support and a 12-month warranty. Our dedicated support team is available to assist with application questions, measurement techniques, and warranty service.

Advanced Analysis in Your Hands

The UNI-T UT181A True RMS Datalogging Multimeter combines laboratory-grade measurement precision with powerful data analysis capabilities in a rugged, field-ready instrument. With its comprehensive measurement functions, intuitive graphical interface, and extensive data management features, the UT181A is the essential tool for professionals who need both accuracy and analytical insight.
