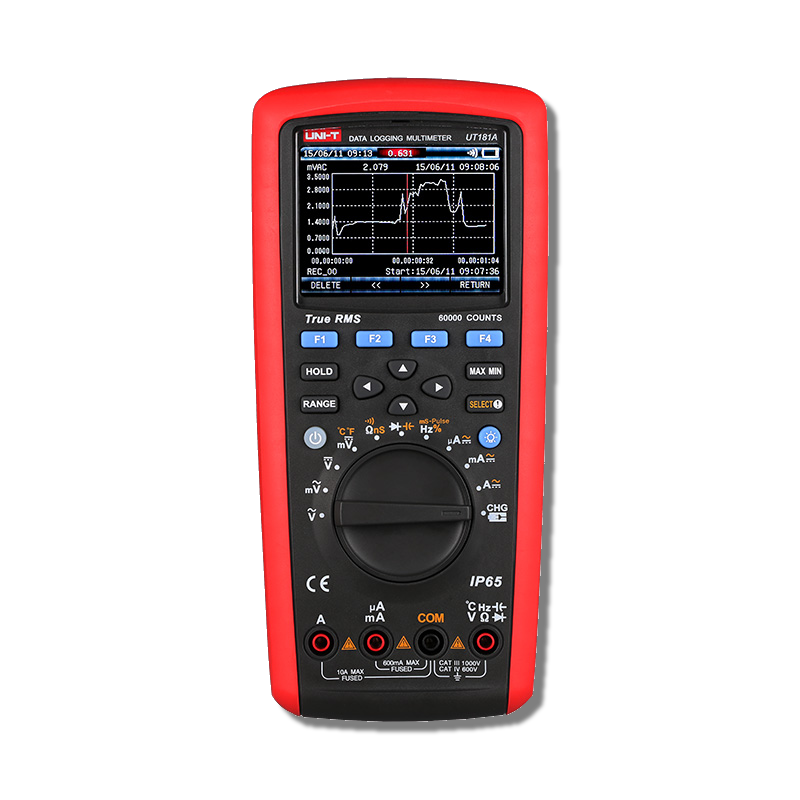

UT181A TRMS Datalogging Digital Multimeter

The UT181A is a 60,000-count True-RMS digital multimeter built around recording and reviewing measurements over time. It logs readings, plots trend graphs on its own display, and pairs to a Bluetooth app, so an intermittent fault or slow drift shows up as a curve rather than being missed between spot readings. It is rated CAT III 1000 V / CAT IV 600 V.

It measures AC/DC voltage to 1000 V, AC/DC current to 10 A, combined AC+DC, resistance to 60 MΩ, capacitance to 60 mF, frequency, and temperature to 1000 °C, with a low-pass filter, dBV/dBm, conductance, continuity, and duty cycle. Auto-ranging is supported throughout.

It suits maintenance and field engineers who need logged measurement and trend capture alongside standard multimeter functions.

Key Features

• Count=60,000
• True RMS=Yes
• CAT Rating=CAT III 1000V, CAT IV 600V
• AC V / A=1000V / 10A
• DC V / A=1000V / 10A
