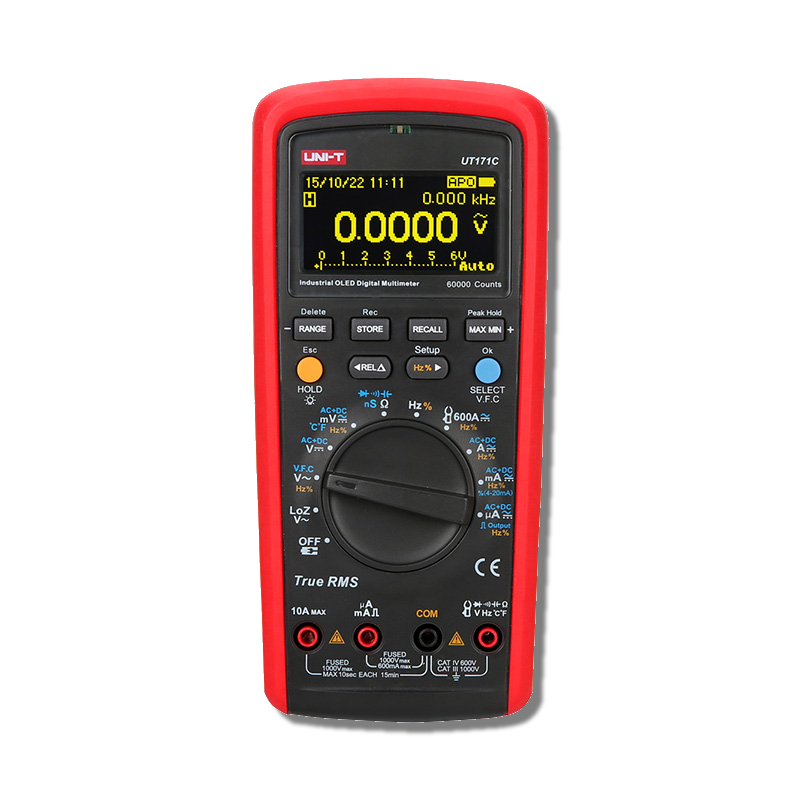

UT171C OLED Industrial Multimeter
$442.00
60,000 count True RMS industrial multimeter with square wave output, OLED display, CAT III 1000V/CAT IV 600V. Built for plant electricians and process technicians working in demanding industrial environments.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UT171C OLED Industrial Multimeter
Product Details
UPC: 6935750517130
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/Meter%20Datasheets/UT171%20Data%20Sheet.pdf
Equipment Type: Digital Multimeter
The UT171C is the OLED-display version of the 60,000-count industrial True-RMS digital multimeter, rated CAT III 1000 V / CAT IV 600 V. The OLED screen gives deep contrast and a wide viewing angle in any light, and the meter adds a square-wave output for testing and calibration.
Measurement matches the series: DC voltage to 1000 V at ±(0.025% + 5), AC voltage to 1000 V, AC and DC current to 10 A, resistance to 60 MΩ, capacitance to 60 mF, frequency from 10 Hz to 10 MHz, and temperature from -40 °C to 1000 °C. A low-impedance AC mode and storage for 9999 readings are included.
It suits industrial electricians and maintenance technicians who want the same industrial measurement set with an OLED display and signal output.
Key Features
- Count=60,000
- True RMS=Yes
- CAT Rating=CAT III 1000V, CAT IV 600V
- AC V / A=1000V / 10A
- DC V / A=1000V / 10A
Specifications
| DC Voltage | 1000 V, ±(0.025% + 5) |
| AC Voltage | 1000 V, ±(0.4% + 40) |
| DC Current | 10 A, ±(0.15% + 10) |
| AC Current | 10 A, ±(0.75% + 20) |
| Resistance | 60 MΩ, ±(0.05% + 2) |
| Admittance | 60 nS, ±(1% + 10) |
| Capacitance | 60 mF, ±(2.5% + 5) |
| Frequency | 10 Hz to 10 MHz, ±(0.01% + 5) |
| Temperature | -40 ℃ to 1000 ℃, ±(1% + 3) |
| Display Count | 60000 |
| Display Type | OLED |
| True RMS | Yes |
| AC Bandwidth | 100 kHz |
| LoZ (ACV) | Around 3 kΩ |
| Input Impedance (DCV) | ≥10 MΩ |
| Data Storage | 9999 readings |
| Power | 7.4 V 2000 mAh Li-ion (rechargeable) |
| Safety Rating | CAT III 1000 V, CAT IV 600 V |
| Drop Protection | 1m |
| Dimensions (W × H × D) | 206 × 95 × 55 mm |
| Weight | 384 g |
