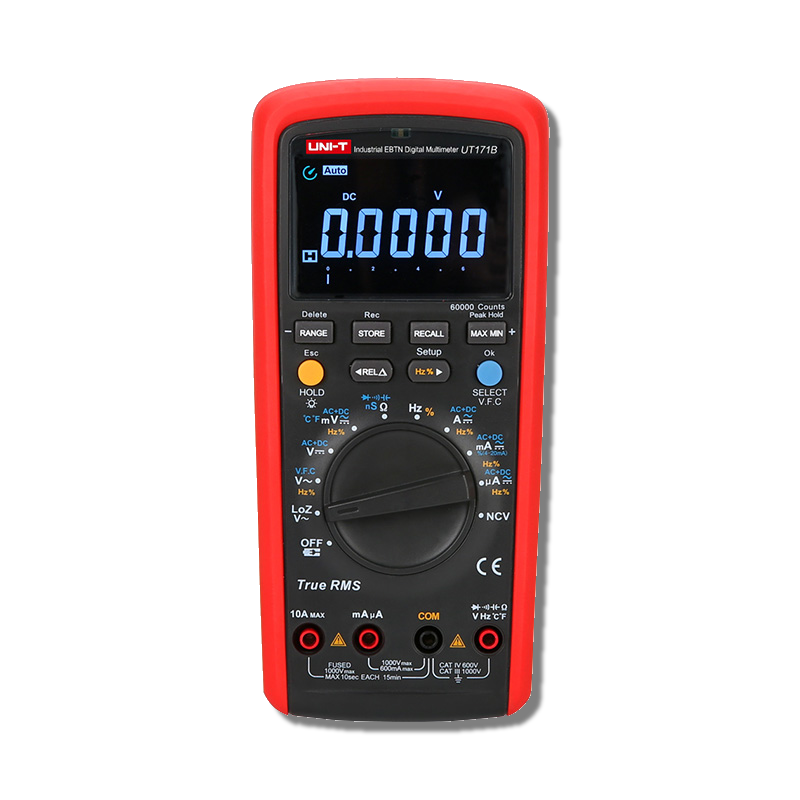

UT171B Industrial TRMS Multimeter
$414.00
60,000 count True RMS industrial multimeter, CAT III 1000V/CAT IV 600V. Built for plant electricians and process technicians working in demanding industrial environments.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UT171B Industrial TRMS Multimeter
Product Details
UPC: 6935750517154
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/Meter%20Datasheets/UT171%20Data%20Sheet.pdf
Equipment Type: Digital Multimeter
The UT171B is a 60,000-count True-RMS digital multimeter for plant and process work, rated CAT III 1000 V / CAT IV 600 V. The high count resolves small changes other meters round off, and True-RMS keeps AC readings accurate on the distorted waveforms around drives and switching loads.
It measures DC voltage to 1000 V at ±(0.025% + 5), AC voltage to 1000 V, AC and DC current to 10 A, resistance to 60 MΩ, capacitance to 60 mF, frequency from 10 Hz to 10 MHz, and temperature from -40 °C to 1000 °C. A high-contrast EBTN display, a low-impedance AC mode, and storage for 9999 readings support plant-floor use.
It suits industrial electricians and maintenance technicians working on motor, drive, and switching circuits.
Key Features
- Count=60,000
- True RMS=Yes
- CAT Rating=CAT III 1000V, CAT IV 600V
- AC V / A=1000V / 10A
- DC V / A=1000V / 10A
- NCV=Yes
Specifications
| DC Voltage | 1000 V, ±(0.025% + 5) |
| AC Voltage | 1000 V, ±(0.4% + 40) |
| DC Current | 10 A, ±(0.15% + 10) |
| AC Current | 10 A, ±(0.75% + 20) |
| Resistance | 60 MΩ, ±(0.05% + 2) |
| Admittance | 60 nS, ±(1% + 10) |
| Capacitance | 60 mF, ±(2.5% + 5) |
| Frequency | 10 Hz to 10 MHz, ±(0.01% + 5) |
| Temperature | -40 ℃ to 1000 ℃, ±(1% + 3) |
| Display Count | 60000 |
| Display Type | EBTN |
| True RMS | Yes |
| AC Bandwidth | 100 kHz |
| LoZ (ACV) | Around 3 kΩ |
| Input Impedance (DCV) | ≥10 MΩ |
| Data Storage | 9999 readings |
| NCV | Yes |
| Power | 7.4 V 2000 mAh Li-ion (rechargeable) |
| Safety Rating | CAT III 1000 V, CAT IV 600 V |
| Drop Protection | 1m |
| Dimensions (W × H × D) | 206 × 95 × 55 mm |
| Weight | 384 g |
