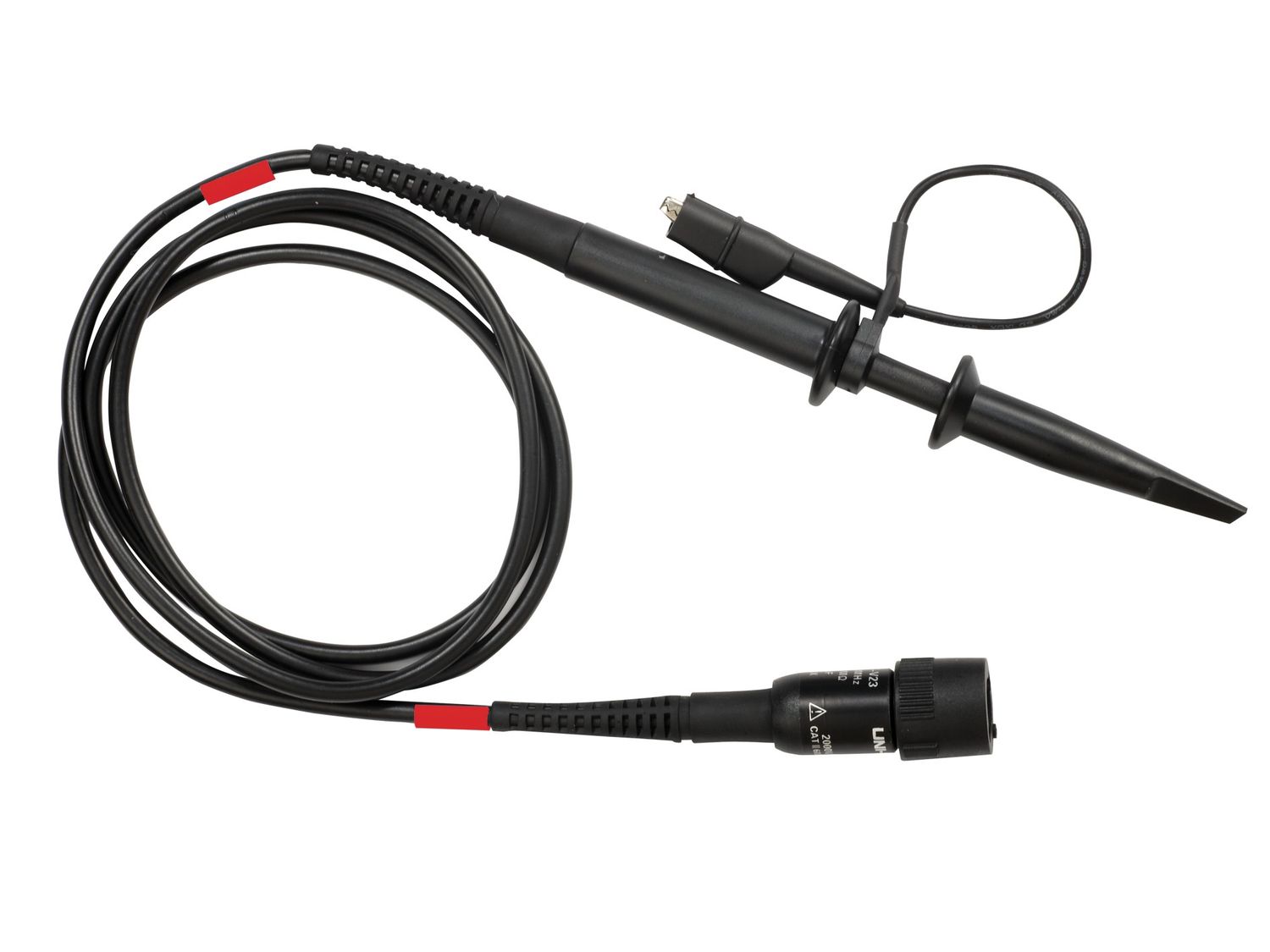

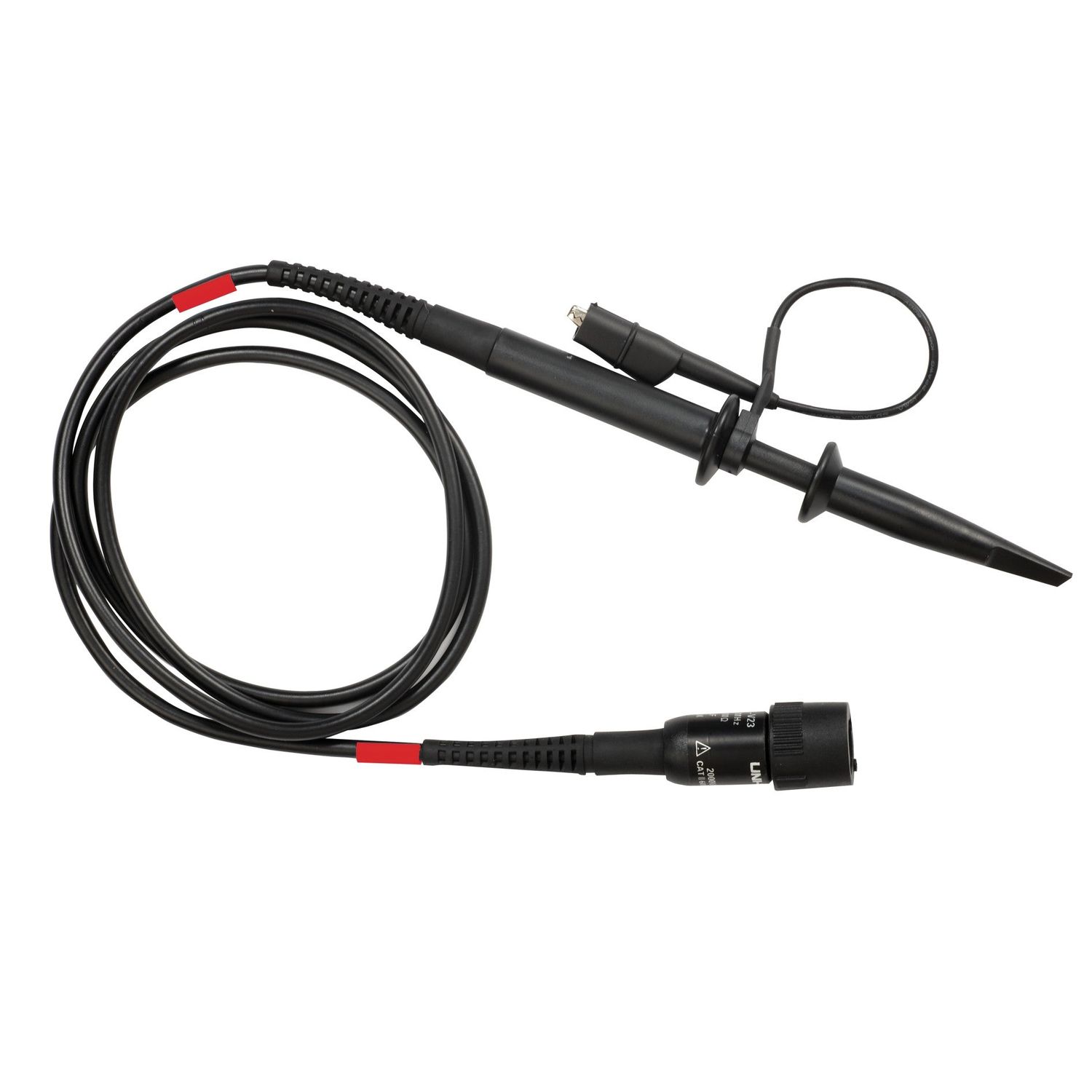

UT-V23 High Voltage Scope Probe
$24.00
100 MHz high-voltage passive probe with 100:1 attenuation rated to 2000 Vpp. Measures power supply rails, inverter outputs, and high-voltage circuits safely on compatible oscilloscopes.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UT-V23 High Voltage Scope Probe
Product Details
UPC: 6935750523117
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/UT-P04-P05-P06-P07-V23_Probe_Compensation.pdf
Equipment Type: Scope Probe
A high-voltage passive oscilloscope probe for measuring elevated voltages beyond a standard 10:1 probe's range. It suits power-electronics and high-voltage bench measurement.
Key Features
- Bandwidth=100MHz
- Attenuation=100:1
- Max Voltage=2000Vpp
- Input Capacitance=10pF
Specifications
| Bandwidth | 100 MHz |
| Probe Attenuation | 100:1 |
| Probe Max Voltage | 2000Vpp |
| Connector Type | BNC |
| Cable Length | 120cm |
| Input Capacitance | 10 pF |
| Input Resistance | 100 MΩ |
| Compensation Range | 10 pF-50 pF |
