UT-P08A 350 MHz 10:1 General Purpose Oscilloscope Probe
$49.00
350 MHz 10:1 passive oscilloscope probe for general-purpose signal measurement. Compatible with UNI-T and most oscilloscopes with BNC inputs.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UT-P08A 350 MHz 10:1 General Purpose Oscilloscope Probe
Product Details
UPC: 6935750508015
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/UT-P08A_User_Manual.pdf
Equipment Type: Scope Probe

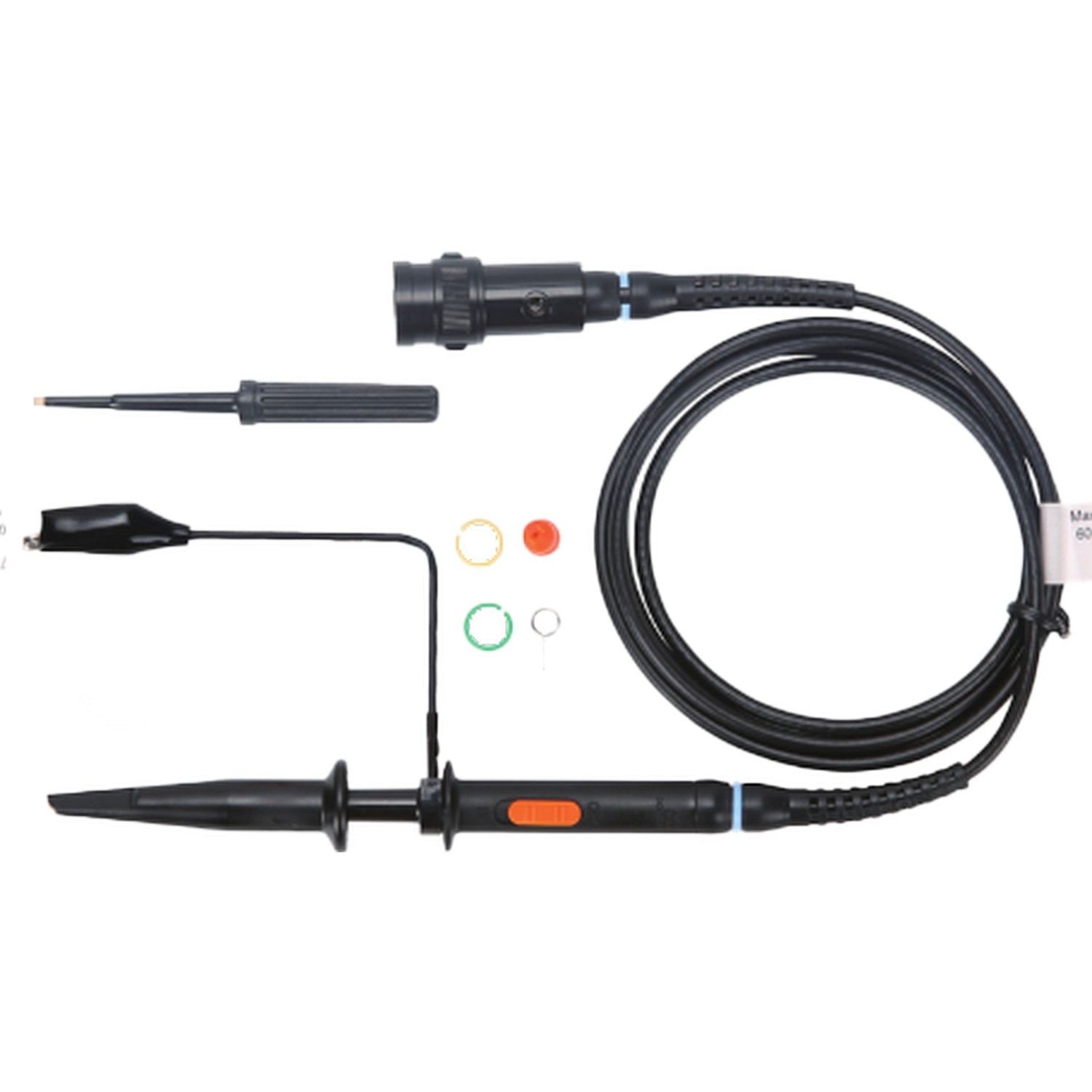

A 350 MHz 10:1 passive oscilloscope probe for general-purpose measurement. The switchable 10:1 / 1:1 attenuation, sprung hook tip, ground lead, and compensation adjustment make it a standard bench and field accessory for matching scope inputs to the signal under test.
Key Features
- Bandwidth=350MHz
- Attenuation=10:1
- Max Voltage=600Vpp
- Input Capacitance=6.5pF-14.5pF
Specifications
| CAT Rating | CAT II 300 V |
| Bandwidth | 350 MHz |
| Probe Attenuation | 10:1 |
| Probe Max Voltage | 600Vpp |
| Connector Type | BNC |
| Cable Length | 130cm |
| Input Capacitance | 6.5 pF-14.5 pF |
| Input Resistance | 10 MΩ |
| Compensation Range | 10 pF-40 pF |
| Operating Temperature | -10 °C - 50 °C |
