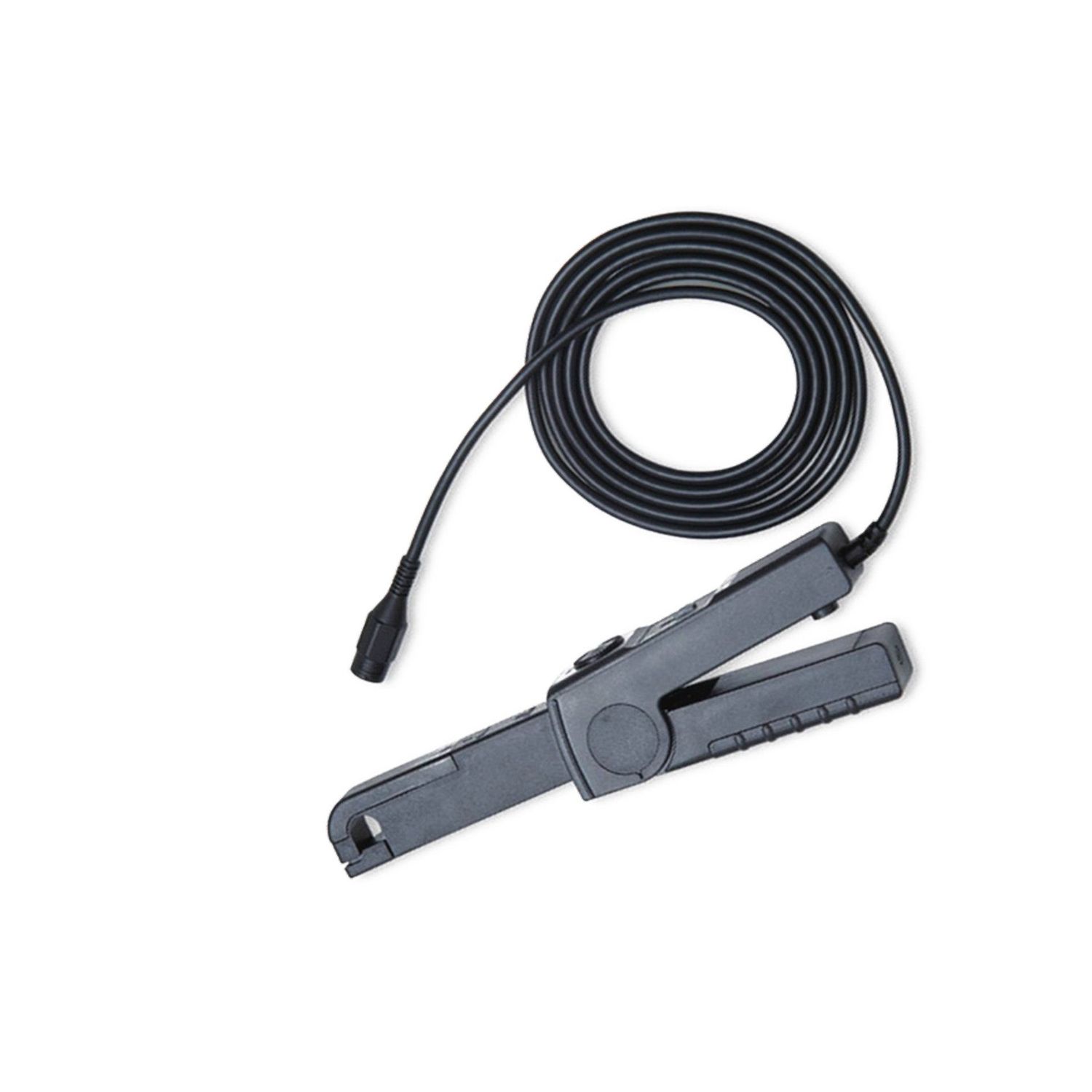

UT-P40 DC-100 kHz 60A AC/DC Current Probe
$430.00
100kHz bandwidth, 60A AC/DC current probe for oscilloscopes. Measures current waveforms non-invasively in power electronics, motor drives, and switch-mode circuits.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UT-P40 DC-100 kHz 60A AC/DC Current Probe
Product Details
UPC: 6935750540817
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/UT-P40_User_Manual.pdf
Equipment Type: Scope Probe
An AC/DC current probe for oscilloscopes (DC to 100 kHz, 60 A). It clamps around a conductor to convert current into a voltage the scope reads, so current waveforms can be captured without breaking the circuit.
Key Features
- Bandwidth=100kHz
- Max Current=60A
- Cable Length=200cm
Specifications
| CAT Rating | CAT III 600 V |
| Battery | 9 V |
| Weight | 310 g |
| Dimensions | 231 × 67 × 36 mm |
| Storage Temperature | -20 °C - 80 °C |
| Bandwidth | 100 kHz |
| Rise Time | 2.5µs |
| Cable Length | 200cm |
| Operating Temperature | 0 °C - 50 °C |
| Output Sensitivity | 5 mV/A / 50 mV/A |
| Max Current | 60 A |
| DC Accuracy | ±2% ±0.4 A (50 mV/A range); ±2% ±1 A (5 mV/A range) |
| Noise | 2mVpp |
| Max Conductor Size | 10.3mm |
