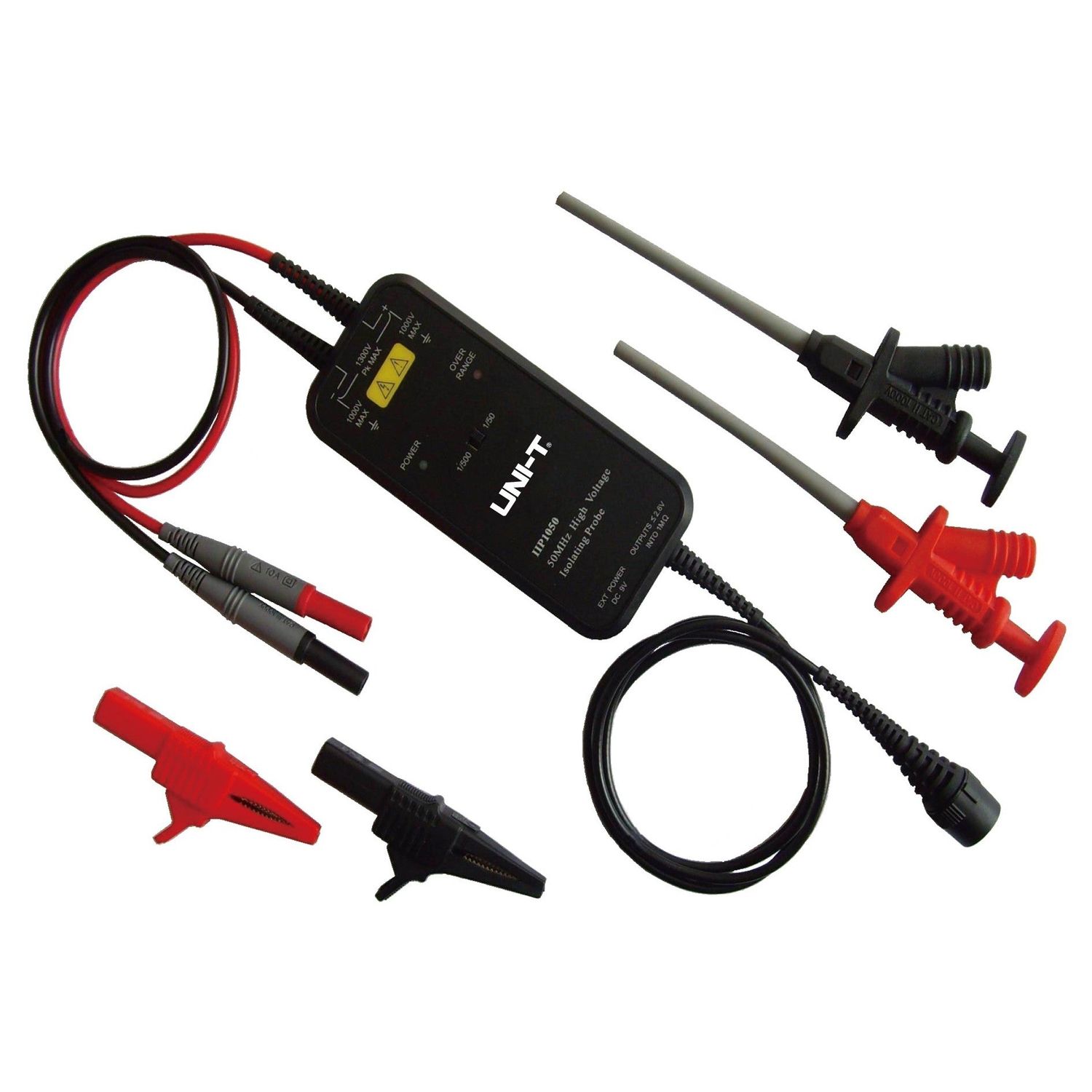

UT-P36 100 MHz 200:1/500:1 Differential Oscilloscope Probe
$437.00
100 MHz differential oscilloscope probe (200:1/500:1 attenuation) for safely measuring floating voltages across motor drives, power converters, and bridge circuits.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UT-P36 100 MHz 200:1/500:1 Differential Oscilloscope Probe
Product Details
UPC: 6935750540800
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/UT-P35_UT-P36_User_Manual.pdf
Equipment Type: Scope Probe
A 100 MHz active differential oscilloscope probe with switchable 200:1 / 500:1 attenuation. It measures the voltage between two points without a ground reference, which suits floating, power-electronics, and motor-drive measurements where a single-ended probe cannot be used safely.
Key Features
- Bandwidth=100MHz
- Diff Input Voltage=5600Vpp
- CMRR=≥80dB DC, ≥60dB 100Hz, ≥50dB 1MHz
- Common-Mode Voltage=2800Vrms
Specifications
| CAT Rating | CAT I 2800 V / CAT II 1400 V |
| Weight | 160 g |
| Storage Temperature | -10 °C - 45 °C |
| Bandwidth | 100 MHz |
| Probe Attenuation | 200:1, 2000:1 |
| Probe Max Voltage | 5600Vpp |
| Rise Time | 3.5ns |
| Cable Length | 30cm input / 90cm output |
| Input Capacitance | 2 pF |
| Input Resistance | 32 MΩ |
| Operating Temperature | 0 °C - 40 °C |
| Noise | ≤ 1.5mVrms (1/200); ≤ 1mVrms (1/2000) |
| Differential Input Voltage | 5600Vpp |
| Common Mode Voltage | 2800Vrms |
| CMRR | ≥ 80 dB DC, ≥ 60 dB 100 Hz, ≥ 50 dB 1 MHz |
