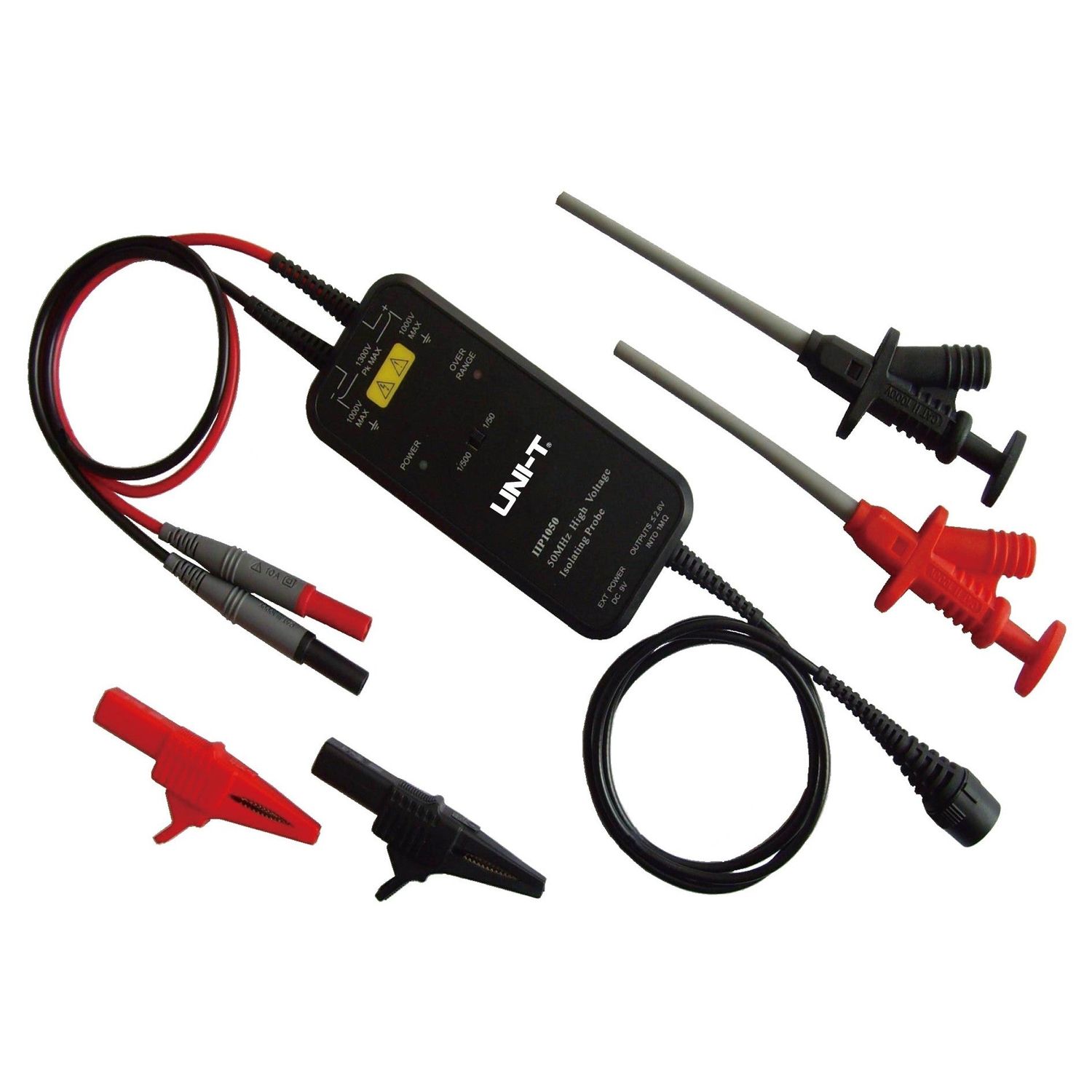

UT-P35 50 MHz 50:1/500:1 Differential Oscilloscope Probe
$376.00
50 MHz differential oscilloscope probe (50:1/500:1 attenuation) for safely measuring floating voltages across motor drives, power converters, and bridge circuits.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UT-P35 50 MHz 50:1/500:1 Differential Oscilloscope Probe
Product Details
UPC: 6935750540794
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/UT-P35_UT-P36_User_Manual.pdf
Equipment Type: Scope Probe
A 50 MHz active differential oscilloscope probe with switchable 50:1 / 500:1 attenuation. It measures the voltage between two points without a ground reference, which suits floating, power-electronics, and motor-drive measurements where a single-ended probe cannot be used safely.
Key Features
- Bandwidth=50MHz
- Diff Input Voltage=1300Vpp
- CMRR=≥80dB DC, ≥60dB 100Hz, ≥50dB 1MHz
- Common-Mode Voltage=1000Vrms
Specifications
| CAT Rating | CAT I 1000 V / CAT II 600 V |
| Weight | 160 g |
| Storage Temperature | -10 °C - 45 °C |
| Bandwidth | 50 MHz |
| Probe Attenuation | 50:1, 500:1 |
| Probe Max Voltage | 1300Vpp |
| Rise Time | 7ns |
| Cable Length | 60cm input / 90cm output |
| Input Capacitance | 3.5 pF |
| Input Resistance | 8 MΩ |
| Operating Temperature | 0 °C - 40 °C |
| Noise | ≤ 1.5mVrms (1/50); ≤ 1mVrms (1/500) |
| Differential Input Voltage | 1300Vpp |
| Common Mode Voltage | 1000Vrms |
| CMRR | ≥ 80 dB DC, ≥ 60 dB 100 Hz, ≥ 50 dB 1 MHz |
