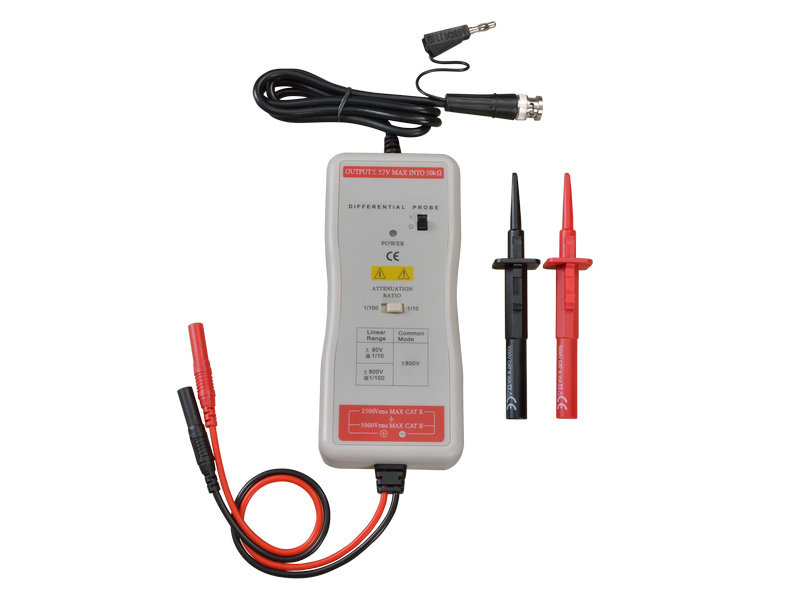

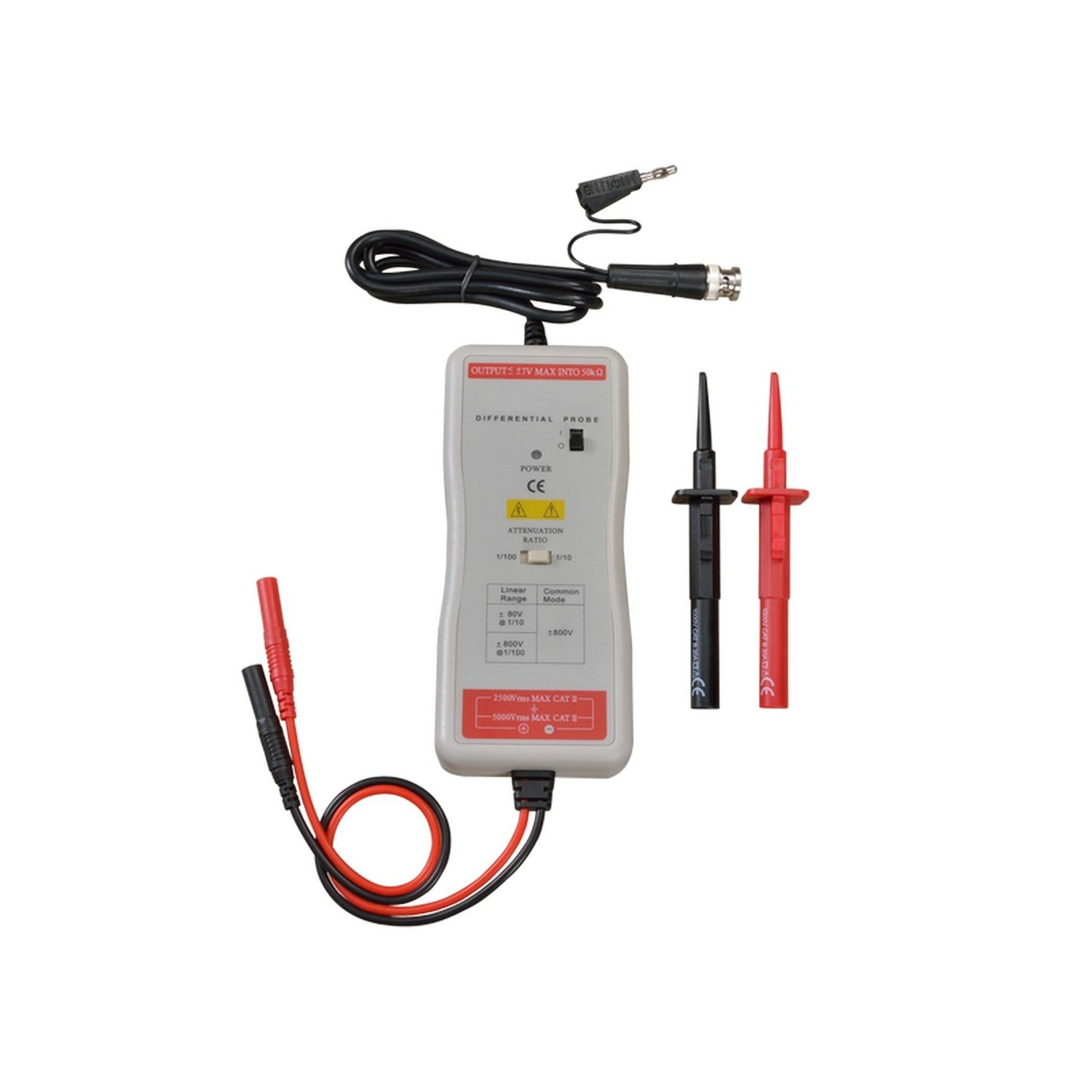

UT-P30 100 MHz 10:1/100:1 Differential Oscilloscope Probe
$379.00
100 MHz differential oscilloscope probe (10:1/100:1 attenuation) for safely measuring floating voltages across motor drives, power converters, and bridge circuits.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UT-P30 100 MHz 10:1/100:1 Differential Oscilloscope Probe
Product Details
UPC: 6935750540756
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/UT-P30_User_Manual.pdf
Equipment Type: Scope Probe
A 100 MHz active differential oscilloscope probe with switchable 10:1 / 100:1 attenuation. It measures the voltage between two points without a ground reference, which suits floating, power-electronics, and motor-drive measurements where a single-ended probe cannot be used safely.
Key Features
- Bandwidth=100MHz
- Diff Input Voltage=800Vpp
- CMRR=>80dB @ 60Hz, >60dB @ 100Hz, >50dB @ 1MHz
- Common-Mode Voltage=5kVrms
Specifications
| CAT Rating | CAT III |
| Dimensions | 69 × 26 × 165 mm |
| Bandwidth | 100 MHz |
| Probe Attenuation | 10:1, 100:1 |
| Probe Max Voltage | 800Vpp |
| Rise Time | 3.5ns |
| Input Capacitance | 1.3 pF |
| Input Impedance | 4 MΩ / 1.3 pF |
| Operating Temperature | 0 °C - 50 °C |
| Differential Input Voltage | 800Vpp |
| Common Mode Voltage | 5kVrms |
| CMRR | > 80 dB @ 60 Hz, > 60 dB @ 100 Hz, > 50 dB @ 1 MHz |
