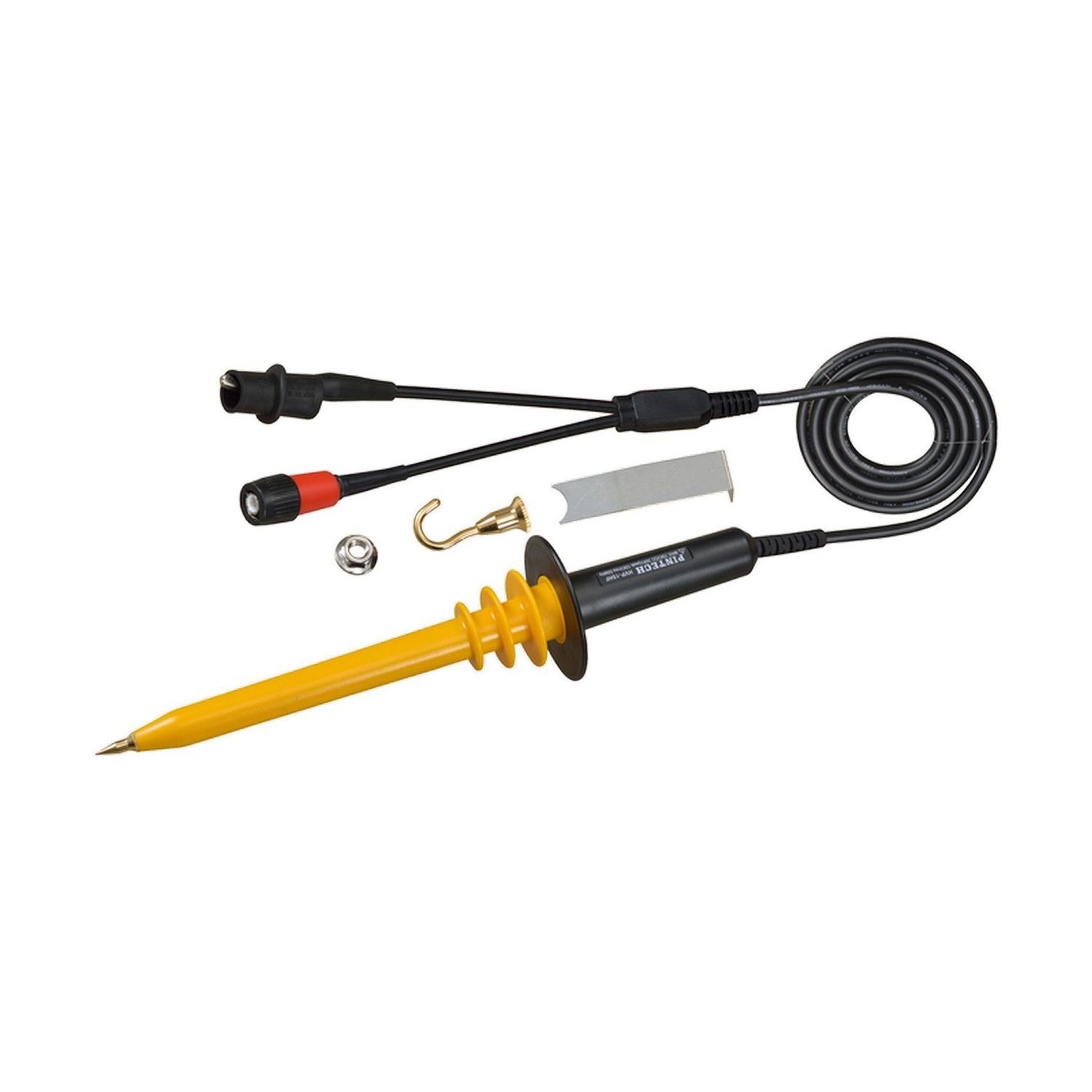

UT-P21 50 MHz 1000:1 High Voltage Oscilloscope Probe
$410.00
40 MHz high-voltage passive probe (1000:1 attenuation) for measuring power supply rails, inverters, and high-voltage circuits up to several kV.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UT-P21 50 MHz 1000:1 High Voltage Oscilloscope Probe
Product Details
UPC: 6935750540749
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/UT-P21_User_Manual.pdf
Equipment Type: Scope Probe
A 50 MHz 1000:1 high-voltage passive oscilloscope probe. The 1000:1 attenuation supports very high voltage measurement on power and high-voltage circuits where a standard probe cannot be used.
Key Features
- Bandwidth=40MHz
- Attenuation=1000:1
- Max Voltage=DC 10kV / AC 7kVrms
- Input Capacitance=3.0pF
Specifications
| Weight | 250 g |
| Dimensions | Φ80mm×340mm |
| Storage Temperature | -20 °C - 70 °C |
| Bandwidth | 40 MHz |
| Probe Attenuation | 1000:1 |
| Probe Max Voltage | DC 10 kV / AC 7kVrms |
| Rise Time | ≤ 8.8ns |
| Connector Type | BNC |
| Cable Length | 200cm |
| Input Capacitance | 3.0 pF |
| Input Resistance | 100 MΩ |
| Compensation Range | 5 pF-50 pF |
| Operating Temperature | 0 °C - 50 °C |
