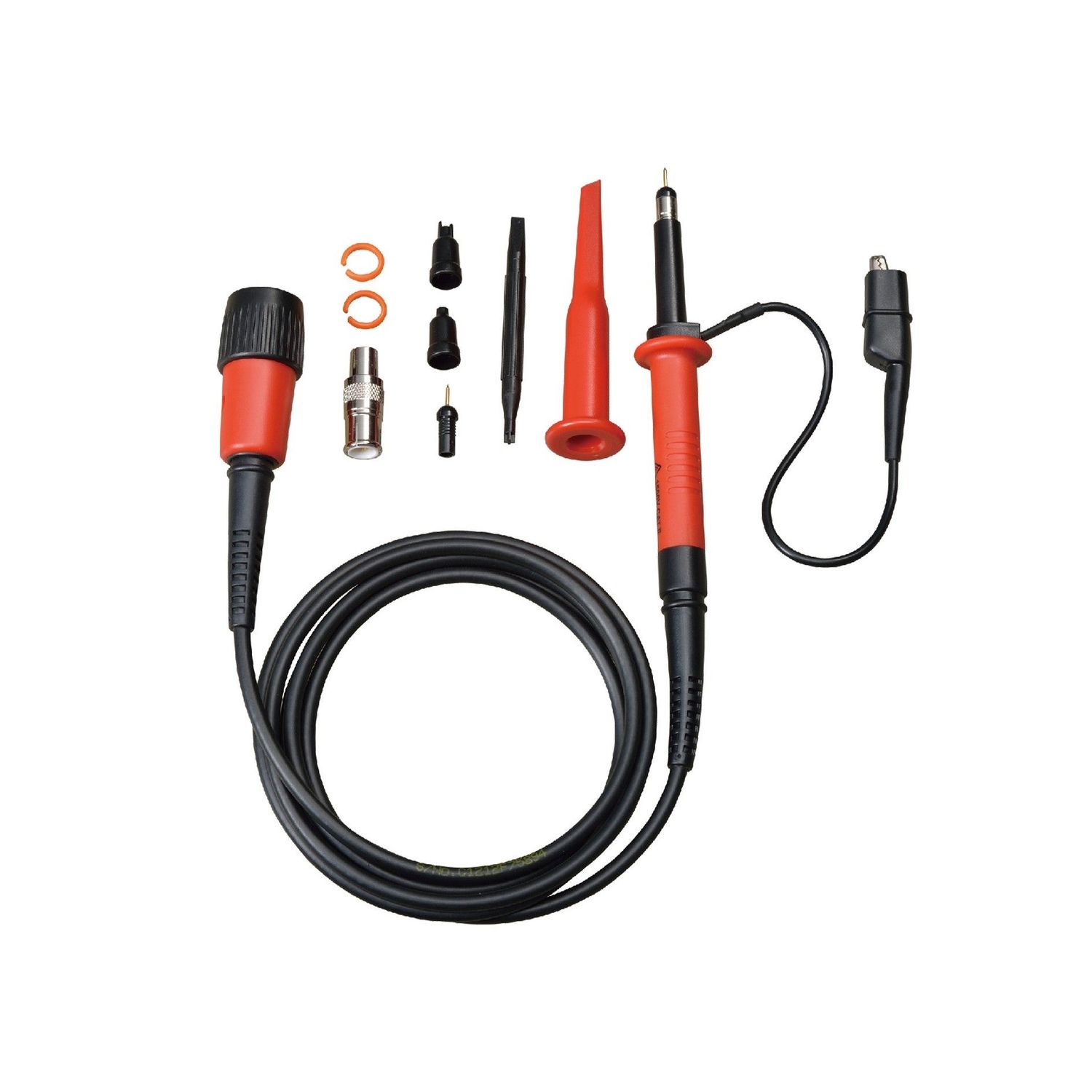

UT-P20 250 MHz 100:1 High Voltage Oscilloscope Probe
$54.00
250 MHz high-voltage passive probe (100:1 attenuation) for measuring power supply rails, inverters, and high-voltage circuits up to several kV.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UT-P20 250 MHz 100:1 High Voltage Oscilloscope Probe
Product Details
UPC: 6935750540732
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/UT-P20_DataSheet.pdf
Equipment Type: Scope Probe
A 250 MHz 100:1 high-voltage passive oscilloscope probe for measuring elevated voltages that exceed a standard 10:1 probe's rating. The 100:1 attenuation extends the safe input range for power-electronics and high-voltage bench work.
Key Features
- Bandwidth=250MHz
- Attenuation=100:1
- Max Voltage=1500Vrms
- Input Capacitance=5.5pF
Specifications
| CAT Rating | CAT II 1500 V |
| Bandwidth | 250 MHz |
| Probe Attenuation | 100:1 |
| Probe Max Voltage | 1500Vrms |
| Rise Time | 1.4ns |
| Connector Type | BNC |
| Input Capacitance | 5.5 pF |
| Input Resistance | 100 MΩ |
| Compensation Range | 10 pF-30 pF |
| Operating Temperature | 0 °C - 50 °C |
