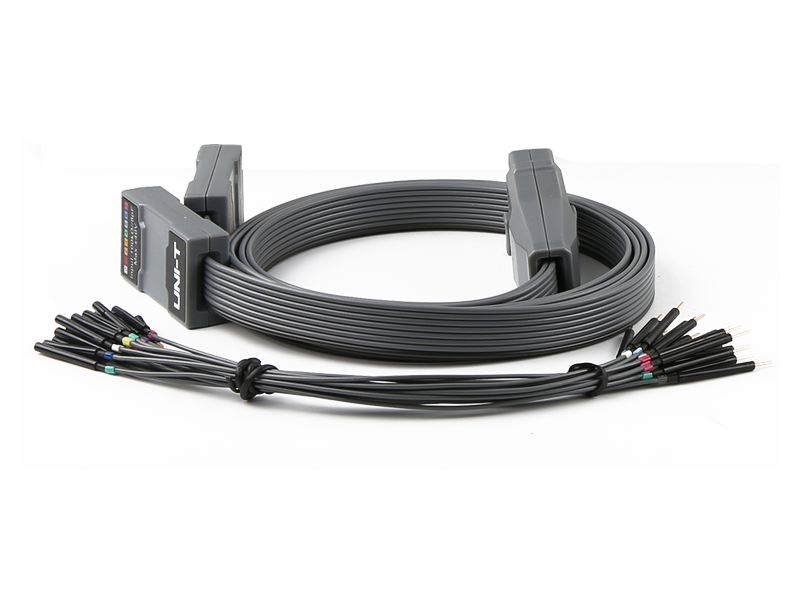

UT-M15 Logic Pod for UPO/MSO Oscillosocopes

Unlock the Full Power of Your UNI-T MSO Oscilloscope

The UT-M15 Logic Probe adds up to 16 digital channels to your UNI-T MSO-series oscilloscopes, transforming them into full mixed-signal oscilloscopes. With this accessory, you can analyze both analog waveforms and digital logic signals side-by-side, giving you the complete picture of how your designs behave in the real world.

---

Why Add Digital Channels? (WIIFM)

• See the Whole System: Instead of switching between multiple tools, capture analog and digital signals together to understand exactly how they interact.
• Find Problems Faster: Debug mixed-signal systems by correlating digital bus activity (I²C, SPI, UART, CAN, etc.) with analog performance issues.
• Future-Proof Your Lab: One oscilloscope with the UT-M15 probe can replace multiple instruments, saving space and budget while expanding capability.
• Learn the Right Way: For students, digital channels help build real-world troubleshooting skills in embedded systems, electronics, and control design.

---

Applications Across Industries

🚗 Automotive Engineering

• Debug CAN and LIN buses in modern vehicles.
• Analyze sensor outputs alongside ECU control signals.
• Validate timing relationships in hybrid/EV power electronics.

✈️ Aerospace & Defense

• Capture ARINC 429 and MIL-STD-1553 digital channels with simultaneous analog power supply monitoring.
• Verify safety-critical timing margins in flight control systems.
• Perform mixed-signal validation on communication and navigation systems.

📡 Industrial & Embedded Systems

• Monitor digital control lines while viewing motor drive analog waveforms.
• Debug PLC communication protocols side by side with analog I/O signals.
• Accelerate troubleshooting of factory automation and robotics systems.

🎓 Education & Research

• Teach students how digital logic and analog circuits interact in embedded design.
• Provide hands-on experience with real-world protocol decoding and timing analysis.
• Enable labs to cover both analog electronics and digital systems without separate instruments.

---

Key Benefits of the UT-M15

Feature	Benefit
16 Digital Channels	Capture full logic buses and multiple control lines at once
Seamless Integration	Works directly with UNI-T MSO scopes for synchronized analysis
Protocol Decode Support	Decode UART, SPI, I²C, CAN, LIN, and more right on your oscilloscope
Mixed-Signal Debug	See both analog waveforms and digital timing together

---

Who Should Use the UT-M15?

• Engineering Students: Build confidence working with real mixed-signal systems in labs and capstone projects.
• Embedded Developers: Debug microcontroller peripherals and sensor interfaces faster.
• Professional Engineers: Save time and increase confidence when analyzing complex automotive, aerospace, or industrial systems.

Frequently Asked Questions (FAQ)

❓ What is the UT-M15 Logic Probe?

The UT-M15 Logic Probe is a digital channel expansion accessory for UNI-T mixed signal oscilloscopes (MSOs). It adds up to 16 digital inputs, allowing you to capture, trigger, and analyze digital signals alongside your oscilloscope’s analog channels. This turns your UNI-T MSO into a powerful mixed-signal debug tool for embedded systems, automotive electronics, aerospace systems, and more.

❓ Why would I want digital channels on my oscilloscope?

With the UT-M15, you can view analog waveforms (voltages, signals, noise, power rails) at the same time as digital bus activity (I²C, SPI, UART, CAN, LIN, etc.). This saves time, improves troubleshooting, and makes it easier to understand system-level behavior. Instead of using a separate logic analyzer, the UT-M15 integrates everything directly into your UNI-T MSO oscilloscope, ensuring precise time correlation between analog and digital signals.

❓ Do I really need the UT-M15 Logic Pod?

If you are only testing simple analog circuits, you can use your oscilloscope without it. But if you are working with embedded systems, microcontrollers, or communication buses, the UT-M15 is almost essential. It lets you:

• Debug firmware-hardware interactions
• Capture protocol data like CAN, SPI, or I²C
• Validate timing margins in digital circuits
• Correlate digital control signals with analog outputs

For students, it’s an opportunity to learn real-world mixed-signal debugging skills. For professional engineers, it’s a productivity booster that makes troubleshooting faster and more reliable.

❓ What industries benefit from mixed-signal analysis with the UT-M15?

The UT-M15 is used across many fields:

• Automotive: Debugging CAN and LIN buses, verifying ECU and sensor signals, analyzing EV power electronics.
• Aerospace & Defense: Capturing ARINC 429 or MIL-STD-1553 digital signals alongside analog power systems.
• Industrial Automation: Troubleshooting PLC communication, motor drives, and robotics systems where digital control meets analog power stages.
• Consumer Electronics: Debugging microcontroller-based circuits, IoT devices, and sensor interfaces.
• Education: Teaching students the relationship between digital logic and analog circuits in embedded design and electronics labs.

❓ Which UNI-T oscilloscopes are compatible with the UT-M15?

The UT-M15 Logic Probe is compatible with UNI-T MSO (Mixed Signal Oscilloscopes), including the MSO2000X, MSO3000X, and MSO7000X series. Simply connect the probe, and your scope’s software automatically unlocks digital channel functionality.

❓ Can the UT-M15 decode serial protocols?

Yes. When paired with a UNI-T MSO oscilloscope, the UT-M15 supports decoding of popular digital protocols such as I²C, SPI, UART, CAN, and LIN. Some scopes also support advanced protocol options (e.g., ARINC429, MIL-STD-1553, SENT, FLEXRAY) through unlockable software packages, making the UT-M15 a key part of your mixed-signal analysis toolkit.

❓ How many channels can I capture with the UT-M15?

The UT-M15 adds 16 digital channels. Combined with the analog channels of your MSO oscilloscope, you can simultaneously capture, display, and analyze both digital logic and analog waveforms in one synchronized view.

❓ What’s the main WIIFM (What’s In It For Me)?

With the UT-M15, you gain the ability to:

• Diagnose faster: See digital and analog issues side-by-side in one capture.
• Learn deeper: For students, it demonstrates how microcontrollers and analog hardware interact.
• Engineer smarter: For professionals, it cuts debug time in industries where mixed-signal systems dominate (automotive, aerospace, industrial control, IoT).

In short: The UT-M15 makes your UNI-T MSO a true mixed-signal oscilloscope, replacing multiple instruments and providing unmatched insight into modern electronic designs.
