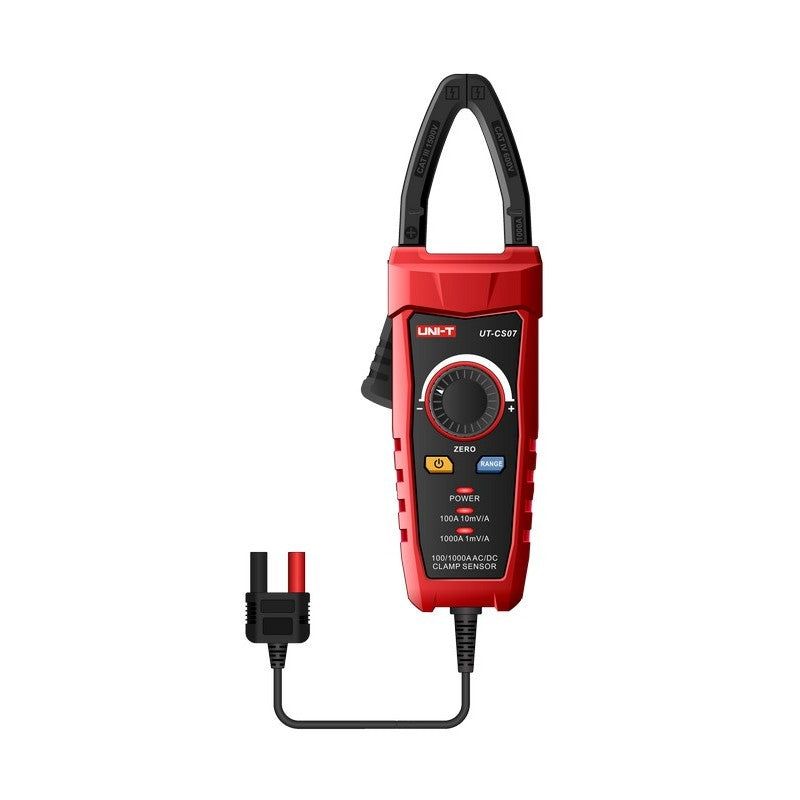

UT-CS07 1000A AC/DC Current Probe for DMMs
$199.00
1000A AC/DC current probe for digital multimeters, covering 50 Hz–400 Hz with CAT III 1500V / CAT IV 600V safety ratings. Designed for solar PV, EV charging, and industrial high-current measurements on bench and handheld DMMs.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UT-CS07 1000A AC/DC Current Probe for DMMs
Product Details
UPC: 6935750507018
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/Meter%20Datasheets/UT-CS07_datasheet.pdf
Equipment Type: Accessory
A 1000 A AC/DC current probe for digital multimeters. It clamps around a conductor and outputs a signal the meter reads, extending current measurement to 1000 A without breaking the circuit.
Key Features
- Compatible with UNI-T multimeters and clamp meters=For use with UNI-T multimeters and clamp meters .
- Specifications=UNI-T UT-CS07 1000A AC/DC Current Clamp Sensor Professional Current Measurement Expansion for UNI-T Multimeters The UNI-T UT-CS07 is a high-reliability AC/DC current clamp sensor designed to expand the measurement capabilities of compatible digital multimeters.
- Non-Invasive Current Measurement=Clamp-on design extends multimeter current measurement range without breaking the circuit.
Specifications
| Frequency Range | 50 Hz - 400 Hz |
| CAT Rating | CAT III 1500 V / CAT IV 600 V |
| Battery | 2×AA |
| Storage Temperature | -10 °C - 50 °C (< 80%RH) |
| Drop Rating | 1m |
| Cable Length | 1.1m |
| Operating Temperature | 0 °C - 40 °C (< 75%RH) |
| Output Sensitivity | 1 mV/A / 10 mV/A |
| Max Current | 1000 A |
| DC Accuracy | ±(1.5%+0.5 A) at 100 A; ±(2.0%+0.5 A) at 1000 A |
| AC Accuracy | ±(1.5%+0.5 A) 45-200 Hz at 100 A; ±(2.0%+0.5 A) 200-400 Hz at 100 A; ±(2.0%+0.5 A) 45-200 Hz at 1000 A; ±(2.5%+0.5 A) 200-400 Hz at 1000 A |
| Max Conductor Size | 35mm / 65×8mm busbar |
| Input Protection | 1000 A |
| Zero Function | Yes |
