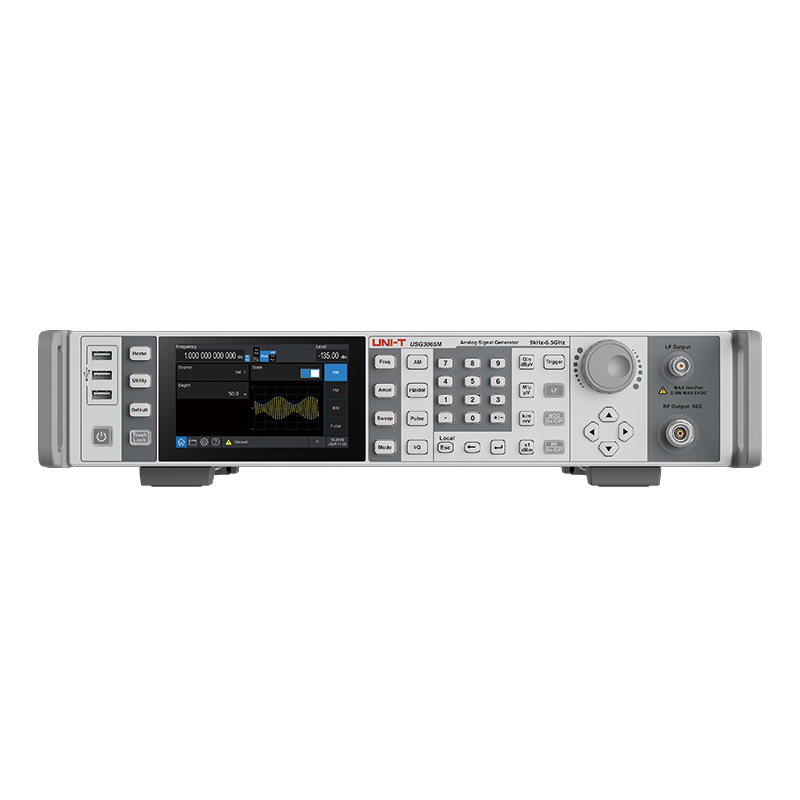

USG3065M 6.5 GHz Analog RF Signal Generator
$9 999.00
6.5 GHz analog RF signal generator. Suited for Wi-Fi, Bluetooth, sub-6 GHz 5G, IoT, and general wireless device testing.
Add-on Options
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
USG3065M 6.5 GHz Analog RF Signal Generator
Product Details
UPC: 6935750530771
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://instruments.uni-trend.com/download?cate=107
Equipment Type: RF Generator
The USG3065M is an analog RF signal generator covering 9 kHz to 6.5 GHz with 0.001 Hz frequency resolution and a level range of −135 dBm to +25 dBm. Single-sideband phase noise is typically below −122 dBc/Hz at 1 GHz (20 kHz offset), amplitude accuracy is ≤0.7 dB typical, and frequency switching is ≤40 ms, suiting both bench R&D and automated test.
It delivers AM, FM, and phase (ΦM) analog modulation from a built-in 50 MHz function/arbitrary waveform generator or an external input, with a standard electronic step attenuator (0 to 110 dB) for fast, contact-free level switching in high-cycle automation. Step and list sweep (2 to 65,535 step points, 1 to 500 list points), a high-stability internal reference (≤±0.2 ppm/year aging, ≤10 ppb temperature effect), and a 10 MHz reference in/out support multi-instrument synchronization. Optional pulse and narrow-pulse modulation (80 dB on/off ratio) extends the instrument into pulsed-RF and radar-component test. A 5-inch touch screen with a signal-flow interface, LAN, USB Host, and USB Device are standard (GPIB optional), with SCPI automation and browser-based web control; an optional license adds power readback and flatness correction with a user-supplied USB power sensor.
As an analog source it suits stimulus work that depends on spectral purity and level accuracy: component characterization, amplifier and filter test, mixer and LNA evaluation, receiver and spectrum-analyzer calibration, and production-line RF stimulus. Certified to CE, cETLus, and RoHS.
Key Features
- Frequency Range=9kHz - 6.5GHz
- Level Range=-135dBm - +25dBm
- Phase Noise=<-122dBc/Hz (1GHz@20kHz)
- Modulation Types=AM, FM, ΦM, Pulse
- LF Generator=Yes
Specifications
| Frequency range | 9 kHz to 6.5 GHz |
| Frequency resolution | 0.001 Hz |
| Phase offset step | 0.1° |
| Frequency switching speed | ≤40 ms (SCPI / list / step sweep) |
| Level settable range | -135 dBm to +25 dBm |
| Level resolution | 0.01 dB |
| Amplitude accuracy (Typ.) | ≤0.7 dB |
| Attenuator type | Electronic attenuator standard (0 to 110 dB, 10 dB steps) |
| Max output (mech.) — 1.2 GHz band | +24 dBm |
| Max output (mech.) — 3.6 GHz band | +22 dBm |
| Max output (elec.) — 1.2 GHz band | +20 dBm |
| Max output (elec.) — 3.6 GHz band | +18 dBm |
| Phase noise (Typ.) | <-122 dBc/Hz @ 1 GHz, 20 kHz offset |
| Oscillator aging rate | ≤ ±0.2 ppm/year |
| Temperature effects | ≤ ±10 ppb |
| Initial calibration accuracy | ≤ ±40 ppb |
| Analog modulation | AM, FM, ΦM (internal / external / internal+external) |
| Pulse modulation (option) | 80 dB on-off ratio, customizable pulse trains |
| Narrow pulse (option) | Min width / resolution: 20 ns / 10 ns |
| USB power sensor (option USG3000-PK) | License-activated; flatness correction with user-supplied USB power sensor |
| Sweep modes | Step sweep, list sweep (frequency, amplitude) |
| Step sweep points | 2 to 65535 |
| List sweep points | 1 to 500 |
| Dwell time | 100 μs to 100 s |
| Built-in AWG | 50 MHz function / arbitrary waveform generator |
| Reference (10 MHz) | 10 MHz (in/out, 50 Ω) |
| Display | 5.0-inch touch screen, signal-flow-guided interface |
| Standard interfaces | LAN, USB Host, USB Device (GPIB optional) |
| Remote control | SCPI, Web Control (browser), Device Manager (PC software, V2.5.0+) |
| Certifications | CE | cETLus |
| RoHS | Compliant |
