UPO6038LP 350 MHz 8Ch 12-Bit Rack-Mount Oscilloscope
$11 999.00
12-bit 350 MHz 8-channel rack-mount oscilloscope with 5 GSa/s sample rate and 500 Mpts memory depth. R12™ ADC platform designed for high-channel-count automated test and production validation racks.
Decode Bundle
Add-on Options
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UPO6038LP 350 MHz 8Ch 12-Bit Rack-Mount Oscilloscope
Product Details
UPC: 6935750560440
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://instruments.uni-trend.com/download?cate=126
Equipment Type: Digital Oscilloscopes

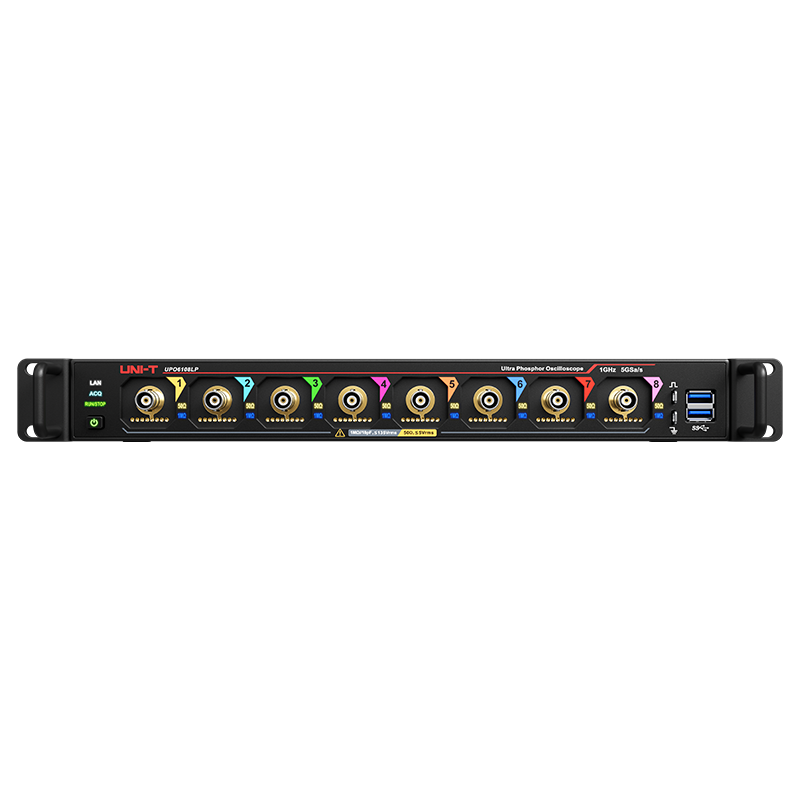

The UPO6038LP is a 350 MHz eight-channel 12-bit oscilloscope on a 1U headless rack-mount platform with external HDMI display. It provides a 5 GSa/s interleaved real-time sample rate (2.5 GSa/s per channel non-interleaved), up to 500 Mpts per-channel memory depth, and an Ultra Phosphor 3.0 acquisition engine reaching 500,000 wfms/s (1,000,000 wfms/s in sequence mode); the typical rise time is ≤ 1.00 ns, and a high-resolution mode extends effective vertical resolution to 16 bits.
Twelve serial-protocol families are supported — RS-232/422/485/UART, I²C, and SPI standard, with CAN, CAN-FD, LIN, FlexRay, SENT, audio, MIL-STD-1553, ARINC 429, and Manchester optional — alongside a 5 Mpts FFT, 56 automated measurements, zone triggering, and hardware mask test. Optional single-phase power analysis (13 measurement types) and three-phase power analysis are available.
Up to 16 chassis synchronize for up to 128-channel acquisition. Connectivity covers four USB Host ports, USB Device, LAN (VXI-11), HDMI, and a 10 MHz reference in/out, with full SCPI 1999.0 / IEEE-488.2 control and web-browser remote access, suiting it to automated test racks, multi-channel system test, and production.
Key Features
- Bandwidth=350MHz
- Channels=8Ch
- Sample Rate=5GSa/s
- Memory Depth=500Mpts
- Vertical Resolution=12 bits
Specifications
| Parameter | UPO6038LP |
| Bandwidth | 350 MHz (-3 dB, 50 Ω termination) |
| Rise time (typ.) | ≤1.00 ns |
| Sample rate | 5 GSa/s interleaved; 2.5 GSa/s non-interleaved per channel |
| Memory depth | 500 Mpts per channel maximum |
| Vertical resolution | 12 bits native; up to 16 bits in HR mode |
| Vertical scale | 500 µV/div to 10 V/div (1 MΩ); 500 µV/div to 1 V/div (50 Ω) |
| Channels | 8 analog channels |
| Waveform capture rate | 500,000 wfm/s standard; 1,000,000 wfm/s in sequence mode |
| FFT | Up to 5 Mpts |
| Automated measurements | 56 parameters |
| Frequency counter | 7-digit, multi-channel |
| DVM | 4-digit RMS |
| Serial protocol decode | 12 families (3 standard, 9 optional) |
| Function/arbitrary waveform generator | Not available on 8-channel chassis |
| Power analysis | Optional UPO6000LP-PWR (13 single-phase measurements); UPO6000LP-3PWR (5 three-phase measurements) |
| Display | External via HDMI; chassis is headless 1U rack-mount |
| Interface | USB Host ×4, USB Device, LAN (VXI-11), HDMI, AUX (Trig/Pass-Fail/DVM), EXT trigger, 10 MHz Ref In/Out |
| Remote control | WebServer, SCPI 1999.0 / IEEE-488.2, UNI-T instrument management software |
| Multi-machine synchronization | Up to 16 chassis (128 channels combined) |
| Form factor | 1U rack-mount, headless |
| Certifications | CE, cETLus |
