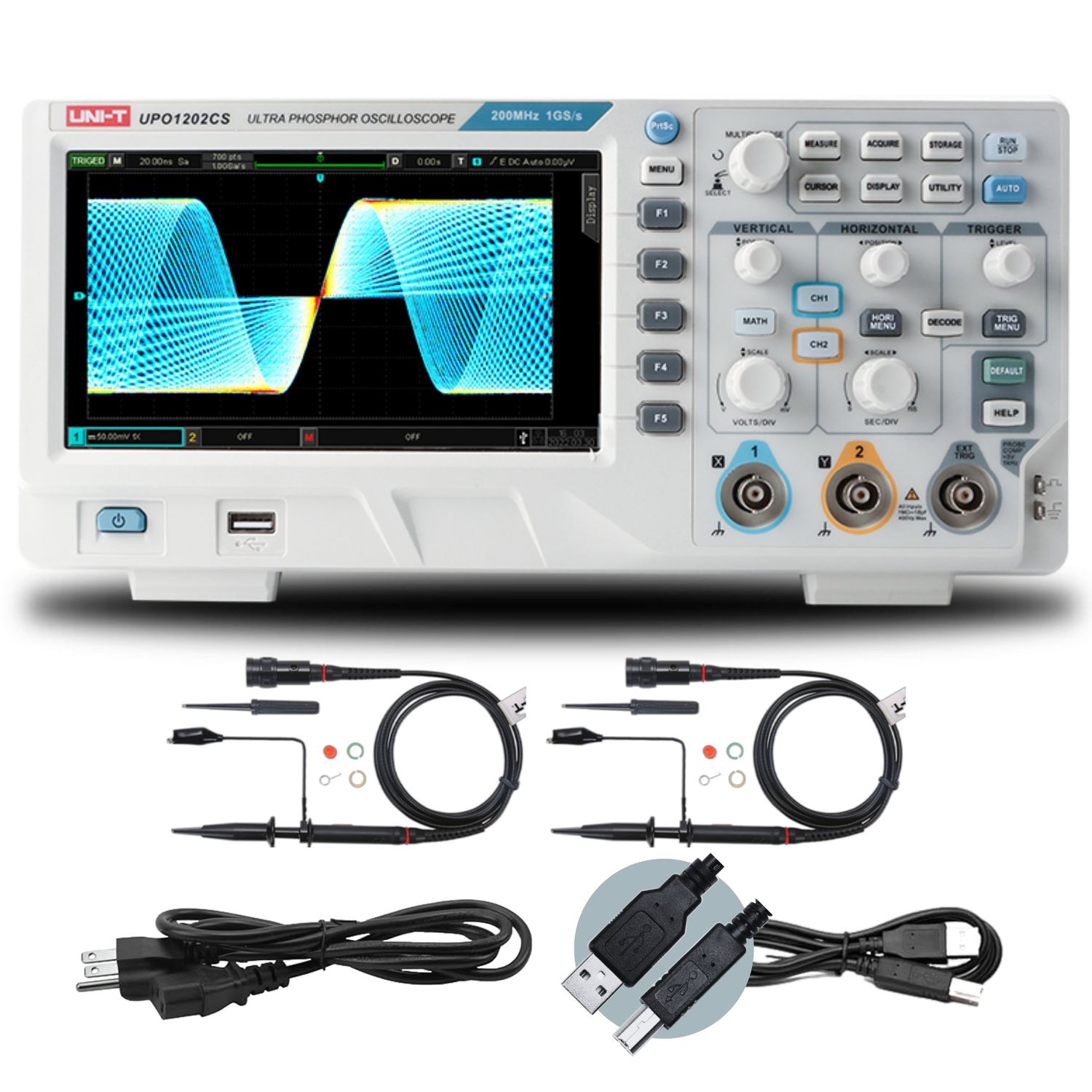

UPO1202CS 200 MHz 2Ch Digital Storage Oscilloscope
$339.00
200 MHz 2-channel digital storage oscilloscope with 1 GSa/s sample rate, 56 Mpts memory depth. Versatile bench oscilloscope for engineering, production, and field applications.
Bandwidth Upgrade
Decode Bundle
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UPO1202CS 200 MHz 2Ch Digital Storage Oscilloscope
Product Details
UPC: 6935750591444
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://instruments.uni-trend.com/download?cate=73
Equipment Type: Digital Oscilloscopes
The UPO1202CS is a 200 MHz two-channel digital storage oscilloscope configured for coursework and curriculum use. It provides a 1 GSa/s real-time sample rate, 56 Mpts of acquisition memory, and Ultra Phosphor 2.0 display on a 7-inch WVGA LCD. The calculated rise time is ≤ 1.75 ns.
The instrument includes a hardware frequency counter, enhanced FFT, and RS-232/UART, I²C, and SPI serial-bus decode as standard. USB-Device and LAN connectivity with SCPI and web-browser access support classroom integration and remote demonstration.
It is sized for university and technical-school laboratories requiring a 200 MHz two-channel scope with protocol decode, network connectivity, and a compact benchtop profile.
Key Features
- Bandwidth=200MHz
- Channels=2Ch
- Sample Rate=1GSa/s
- Memory Depth=56Mpts
- Vertical Resolution=8 bits
Specifications
| Bandwidth | 200 MHz |
| Channels | 2Ch |
| Sample Rate | 1GSa/s |
| Memory Depth | 56Mpts |
| Vertical Resolution | 8 bits |
| Vertical Scale 1M | 1 mV/div to 20 V/div |
| Capture Rate | 500,000 wfms/s |
| Refresh Rate | 500,000 wfms/s |
| Frequency Counter | 7-bit |
| Auto Measurements | 36 |
| Included Bus Protocols | RS232, UART, I2C, SPI |
| Optional Bus Protocols | CAN, LIN |
| Protocol Analysis Count | 3 |
| DVM | 4-bit |
| FFT Points | 64kpts |
| Display Type | TFT LCD |
| Display Size | 7in |
| Interface | USB-Host, USB-Device, LAN, EXT Trig, AUX |
| Weight | 3.0 kg |
| Dimensions | 306 × 138 × 107 mm |
| Operating Temperature | 0 °C - 40 °C |
