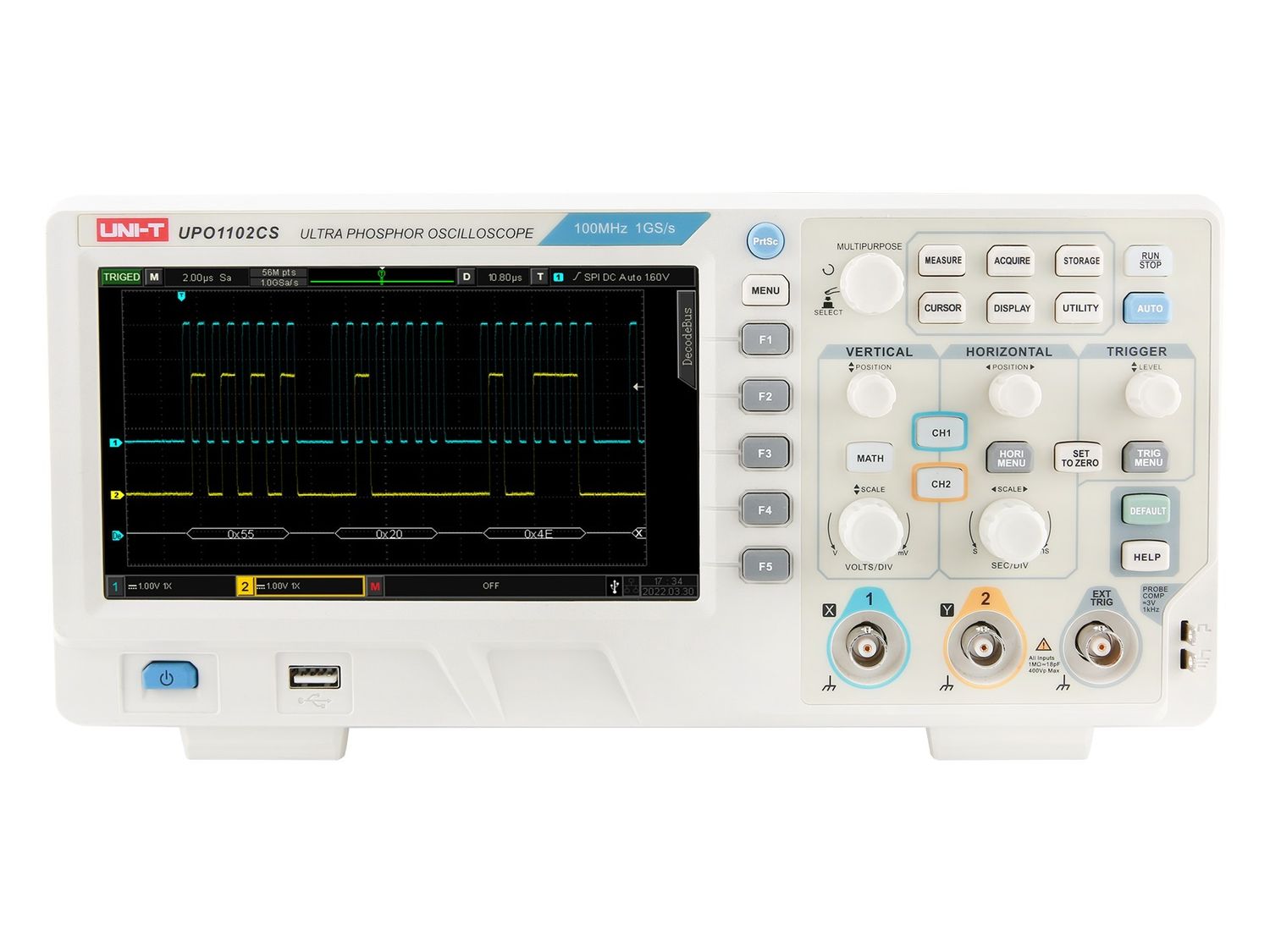

Unleash the Potential of the UNI-T UPO1102CS Digital Phosphor Oscilloscope

Introducing the UNI-T UPO1102CS Digital Phosphor Oscilloscope, a versatile and budget-friendly instrument designed to elevate your electronic and electrical projects across various domains. Whether you're engaged in electronic design, debugging, education, or industrial design, the UPO1102CS has you covered with its advanced features and cutting-edge technology.

Key Specifications

UNI-T UPO1102CS Oscilloscope Web Control feature

• Bandwidth: 100MHz
• Analog Channels: 2
• Real-Time Sample Rate: 1GSa/s
• Max. Memory Depth: 56Mpts
• Waveform Capture Rate: 500,000wfms/s

Unlock Enhanced Functionality with These Exceptional Features

Web Control for Remote Accessibility

The UPO1102CS can be effortlessly connected and controlled remotely through a web page interface. Enjoy the convenience of dual-platform operation via PC and mobile devices, eliminating the need for local program installations and saving valuable time and space.

1Mpts FFT Sampling Point for Precise Frequency Analysis

With 1Mpts FFT sampling points, this oscilloscope empowers you to perform in-depth frequency domain signal analysis. Customize spectrum analyzer functions such as frequency range, detection mode, and spectrum marking, enabling comprehensive signal examination.

UNI-T UPO1102CS Oscilloscope Multi-Scopes feature

Multi-Scopes for Versatile Signal Display

The UPO1102CS excels at displaying waveforms from different clock sources, even when their frequencies significantly differ. This feature simplifies waveform parameter analysis, making it convenient for you to work with diverse signals.

Serial Bus Trigger and Hardware Decoding for Real-Time Insights

Experience real-time decoding of serial bus signals with innovative hardware decoding technology. The UPO1102CS's deep storage of 56Mpts ensures millisecond-level decoding, eliminating the need for extended waiting times. Enjoy uninterrupted waveform refresh rates and vivid digital fluorescence waveform displays. The event list provides decoded data along with timestamp information, offering enhanced insights into your serial bus signals.

UNI-T UPO1102CS Oscilloscope Sampling feature

Deep Storage Depth for Comprehensive Waveform Analysis

With an impressive 56M sampling points per channel, the UPO1102CS excels at maintaining a high sampling rate across a wide time base range. This capability enables detailed examination of waveforms while retaining an overarching view, significantly enhancing your ability to capture and analyze abnormal waveforms.

Ultra-High Capture Rate for Signal Precision

Leveraging advanced digital signal parallel processing technology, the UPO1102CS boasts an exceptional capture rate among its peers. This innovation effectively minimizes signal loss, ensuring your ability to capture even the most elusive abnormal signals with precision.

UNI-T UPO1102CS Oscilloscope Display feature

The UNI-T UPO1102CS Digital Phosphor Oscilloscope redefines what's possible in your electronic and electrical projects. Whether you're a seasoned engineer or a budding enthusiast, this versatile instrument empowers you to tackle complex tasks with confidence. Elevate your projects and capture the essence of innovation with the UPO1102CS. Acquire it today and embark on a journey of enhanced precision and efficiency in your work. Your next breakthrough is within reach!
