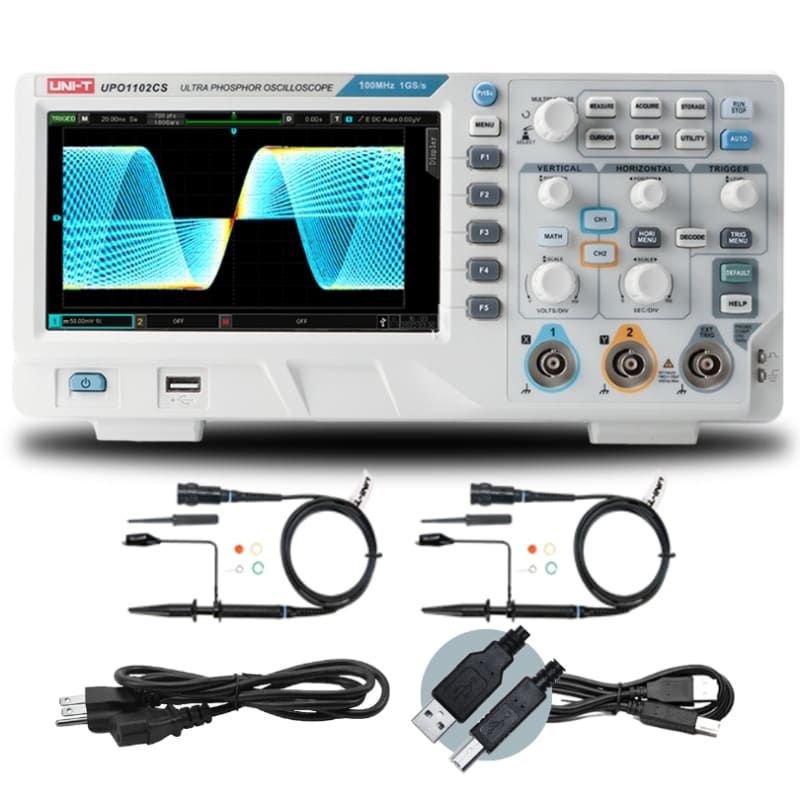

UPO1102CS 100 MHz 2Ch Digital Storage Oscilloscope
$275.00
100 MHz 2-channel digital storage oscilloscope with 1 GSa/s sample rate, 56 Mpts memory depth. Versatile bench oscilloscope for educators and engineering students.
Bandwidth Upgrade
Decode Bundle
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UPO1102CS 100 MHz 2Ch Digital Storage Oscilloscope
Product Details
UPC: 6935750591451
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://instruments.uni-trend.com/download?cate=73
Equipment Type: Digital Oscilloscopes
The UPO1102CS is a 100 MHz two-channel digital storage oscilloscope with 1 GSa/s sample rate, 56 Mpts memory depth, and a 500,000 wfms/s waveform capture rate. Ultra Phosphor 2.0 display technology renders intensity-graded waveforms on a 7-inch TFT LCD, and the calculated rise time is ≤ 3.5 ns.
An independent DVM module runs alongside acquisition, with FFT spectrum analysis for harmonic and EMI work, 36 automated measurements with statistics, and advanced triggering including edge, pulse-width, slope, video, and pattern modes.
Connectivity includes USB, LAN, VGA, an external trigger input, and an AUX output, with driverless web-browser remote control over LAN, suiting it to embedded development, education, and general electronics debug.
Key Features
- Bandwidth=100MHz
- Channels=2Ch
- Sample Rate=1GSa/s
- Memory Depth=56Mpts
- Vertical Resolution=8 bits
Specifications
| Bandwidth | 100 MHz |
| Channels | 2 analog |
| Real-time Sample Rate | 1 GSa/s |
| Memory Depth | 56 Mpts per channel |
| Waveform Capture Rate | 500,000 wfms/s (Fast Acquire mode) |
| Waveform Record | 100,000 frames |
| Rise Time | ≤ 3.5 ns |
| Vertical Resolution | 8 bits |
| Vertical Scale | 1 mV/div to 20 V/div |
| Max Input Voltage (1 MΩ) | 400 V (DC + AC peak) |
| Time-base Scale | 2 ns/div to 1000 s/div |
| Display | 7-inch TFT, 800 × 480 |
| Trigger Types | Edge, Pulse Width, Runt, Window, Nth Edge, Delay, Timeout, Pattern, Duration, Setup/Hold, Slope |
| Serial Decoding | RS232/UART, I2C, SPI, CAN (optional), LIN (optional) |
| FFT | 64K points |
| Automatic Measurements | 36 parameters |
| Interfaces | USB Host, USB Device, LAN, EXT Trig, AUX Out |
| Dimensions (W × H × D) | 306 × 138 × 107 mm |
| Weight | 3.0 kg |
