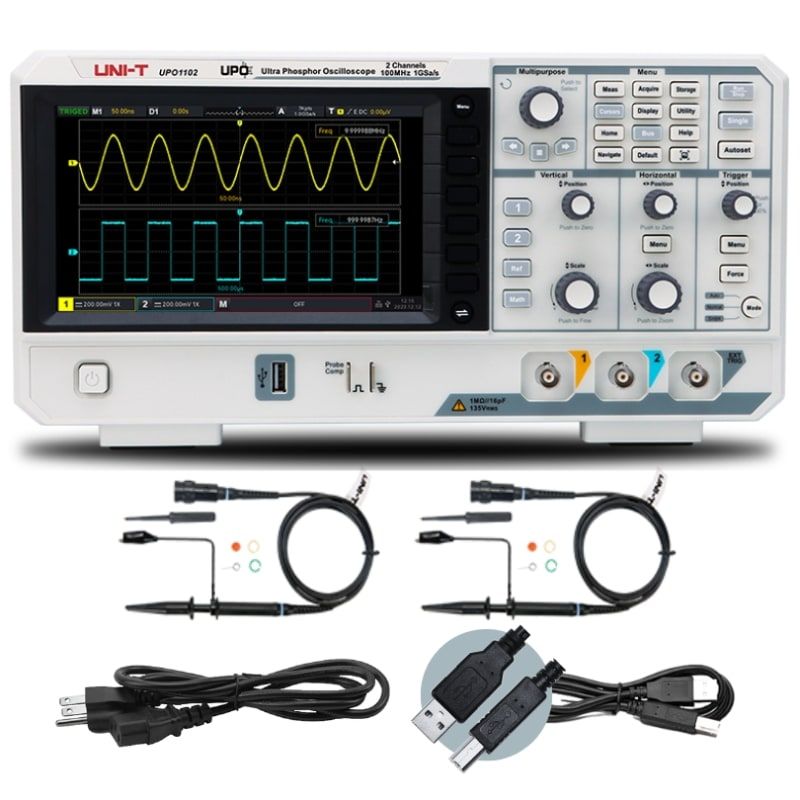

UPO1102 100 MHz 2Ch Digital Storage Oscilloscope
$275.00
100 MHz 2-channel digital storage oscilloscope with 1 GSa/s sample rate, 56 Mpts memory depth. Versatile bench oscilloscope for automotive engineers.
Bandwidth Upgrade
Decode Bundle
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UPO1102 100 MHz 2Ch Digital Storage Oscilloscope
Product Details
UPC: 6935750511275
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://instruments.uni-trend.com/download?cate=91
Equipment Type: Digital Oscilloscopes
The UPO1102 is a 100 MHz two-channel digital storage oscilloscope of the UPO1000 line. It provides a 1 GSa/s real-time sample rate, 56 Mpts of acquisition memory, and a 500,000 wfms/s capture rate with Ultra Phosphor 2.0 display on a 7-inch WVGA LCD. The calculated rise time is ≤ 3.5 ns.
An independent AC/DC true-RMS DVM module runs alongside acquisition, paired with a 7-digit hardware frequency counter and an enhanced FFT with waterfall display and marker measurement. RS-232/UART, I²C, and SPI serial-bus trigger and decode are included as standard. Connectivity includes USB-Host, USB-Device, and LAN with SCPI and web-browser remote control.
It suits 100 MHz two-channel debug, education, and electronics troubleshooting where built-in DVM, frequency counting, and FFT complement the core oscilloscope functions.
Key Features
- Bandwidth=100MHz
- Channels=2Ch
- Sample Rate=1GSa/s
- Memory Depth=56Mpts
- Vertical Resolution=8 bits
Specifications
| Bandwidth | 100 MHz |
| Channels | 2 |
| Real-Time Sample Rate | 1 GSa/s |
| Sample Rate per Channel Configuration | 1 GSa/s on a single channel; 500 MSa/s with both channels active |
| Calculated Rise Time | ≤ 3.5 ns |
| Memory Depth | 56 Mpts |
| Vertical Resolution | 8 bits |
| Vertical Scale (1 MΩ) | 500 µV/div to 20 V/div |
| Maximum Input Voltage | 400 V (DC + AC Vpk) |
| Waveform Capture Rate | 100,000 wfms/s |
| Continuous Frame Recording | 65,000 frames |
| FFT | 1 Mpts enhanced FFT (5 window functions) |
| DVM | Independent module — 4-bit, AC/DC True RMS |
| Frequency Counter | 6-digit hardware |
| Automated Measurements | 36 parameters with statistics and cursor-area scoping |
| Trigger Types | Edge, Pulse Width, Video, Slope, Runt, Over-Amplitude, Delay, Timeout, Duration, Setup/Hold, Nth Edge, Pattern |
| Serial Bus Decoding (Standard) | RS-232/UART, I²C, SPI |
| Optional Protocol Decoders | None available on this platform |
| Display | 7-inch WVGA TFT LCD, 256-level intensity grading |
| Interface | USB-Host (front + rear), USB-Device (rear), LAN (1 GbE), AUX |
| Remote Control | Web browser (no driver), SCPI over LAN |
| Certifications | CE |
| Operating Temperature | 0°C to 40°C |
| Line Voltage | 100–240 VAC, 50/60 Hz |
| Power Consumption | 75 VA maximum |
| Weight | <2.5 kg |
| Dimensions (W × H × D) | 336 × 164 × 105 mm |
