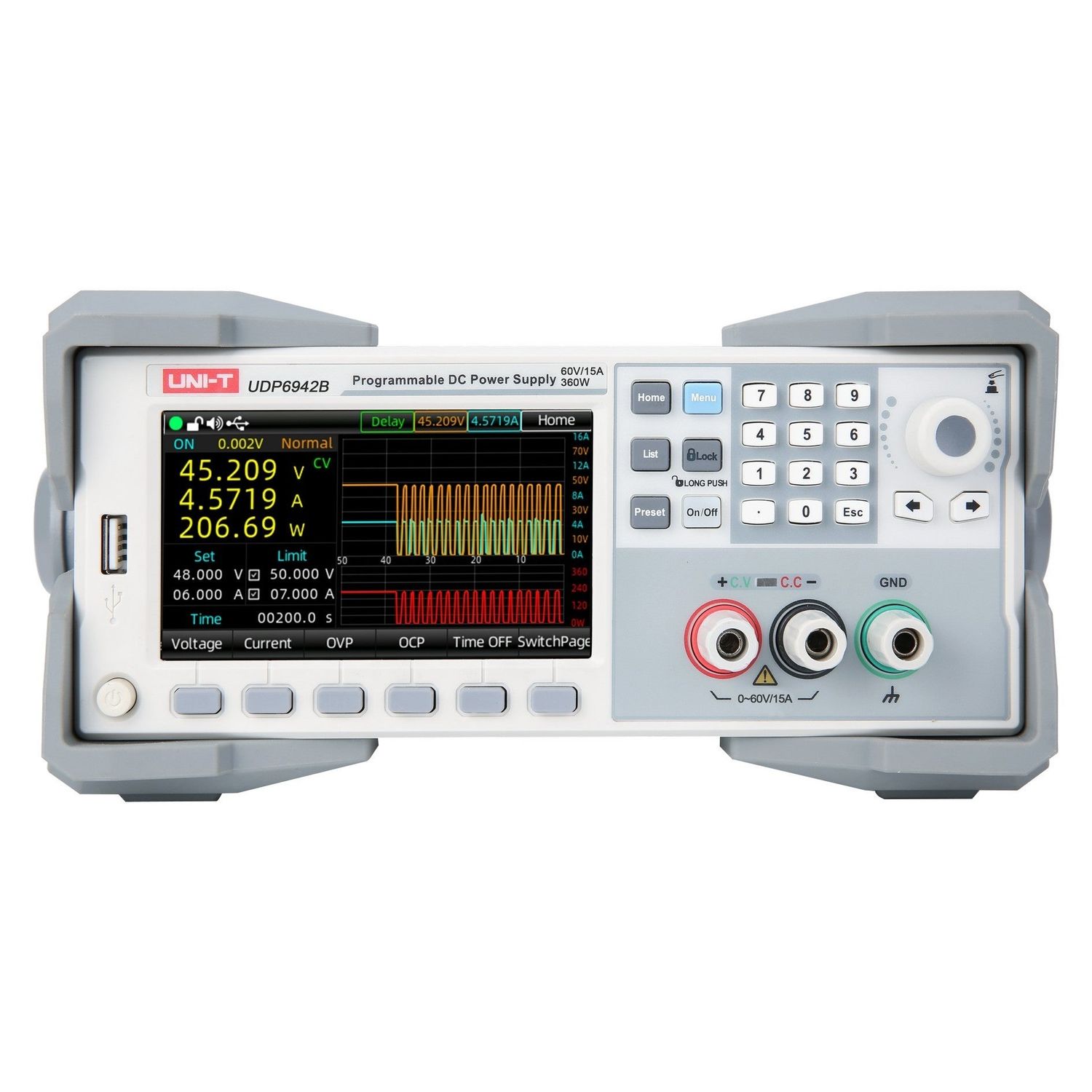

UDP6942B 360W 60V/15A Programmable DC Switching Power Supply
$999.00
1-channel 360W switching DC power supply rated to 60V/15A. Compact footprint with remote interface for automated test, battery simulation, and production environments.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UDP6942B 360W 60V/15A Programmable DC Switching Power Supply
Product Details
UPC: 6935750569429
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://instruments.uni-trend.com/download?cate=38
Equipment Type: DC Power Supply
The UDP6942B is a 360 W programmable DC switching power supply with an auto-ranging 60 V × 15 A output, delivering flexible voltage/current combinations within the rated power from a single instrument. Setting resolution is 1 mV / 0.1 mA.
Independently configurable voltage- and current-slope (VSR/ISR) modes set rise and fall rates for soft start and stop into inrush-prone loads; a built-in 4½-digit DVM monitors a second voltage point on the device under test; and four-wire remote sense holds voltage accurate at the load. A list mode with delay function programs voltage/current sequences for automated profiles and battery-charge simulation, with configurable OVP/OCP thresholds.
A full interface set — USB Device, USB Host, RS-232, RS-485, LAN with web-browser control, and external analog I/O — supports SCPI, Multi-SCPI, and Modbus RTU, and RS-485 master/slave links multiple units for series or parallel operation, suiting it to low-voltage motor-drive testing, inverter input-stage qualification, and DC-DC converter development.
Key Features
- Voltage Out=60V
- Current Out=15A
- Channels=1Ch
- Power Out=360W
- Programmable=Yes
Specifications
| Output Voltage | 0–60 V |
| Output Current | 0–15 A |
| Output Power | 360 W |
| Load Regulation (Voltage) | ≤ 0.01% + 30 mV |
| Load Regulation (Current) | ≤ 0.05% + 6 mA |
| Line Regulation (Voltage) | ≤ 0.01% + 30 mV |
| Line Regulation (Current) | ≤ 0.05% + 6 mA |
| Setting Resolution (Voltage) | 1 mV |
| Setting Resolution (Current) | 0.1 mA |
| Readback Resolution (Voltage) | 0.1 mV (< 10 V), 1 mV (> 10 V) |
| Readback Resolution (Current) | 0.1 mA (< 10 A), 1 mA (> 10 A) |
| Setting Accuracy (Voltage) | ≤ 0.03% + 5 mV |
| Setting Accuracy (Current) | ≤ 0.1% + 15 mA |
| Readback Accuracy (Voltage) | ≤ 0.03% + 5 mV |
| Readback Accuracy (Current) | ≤ 0.1% + 15 mA |
| Ripple & Noise (Voltage) | ≤ 15 mVp-p |
| Ripple & Noise (Current) | ≤ 8 mArms |
| Remote Sense Voltage | 1 V |
| Dimensions (W × H × D) | 215 × 88 × 373.7 mm |
| Weight | 4.0 kg |
