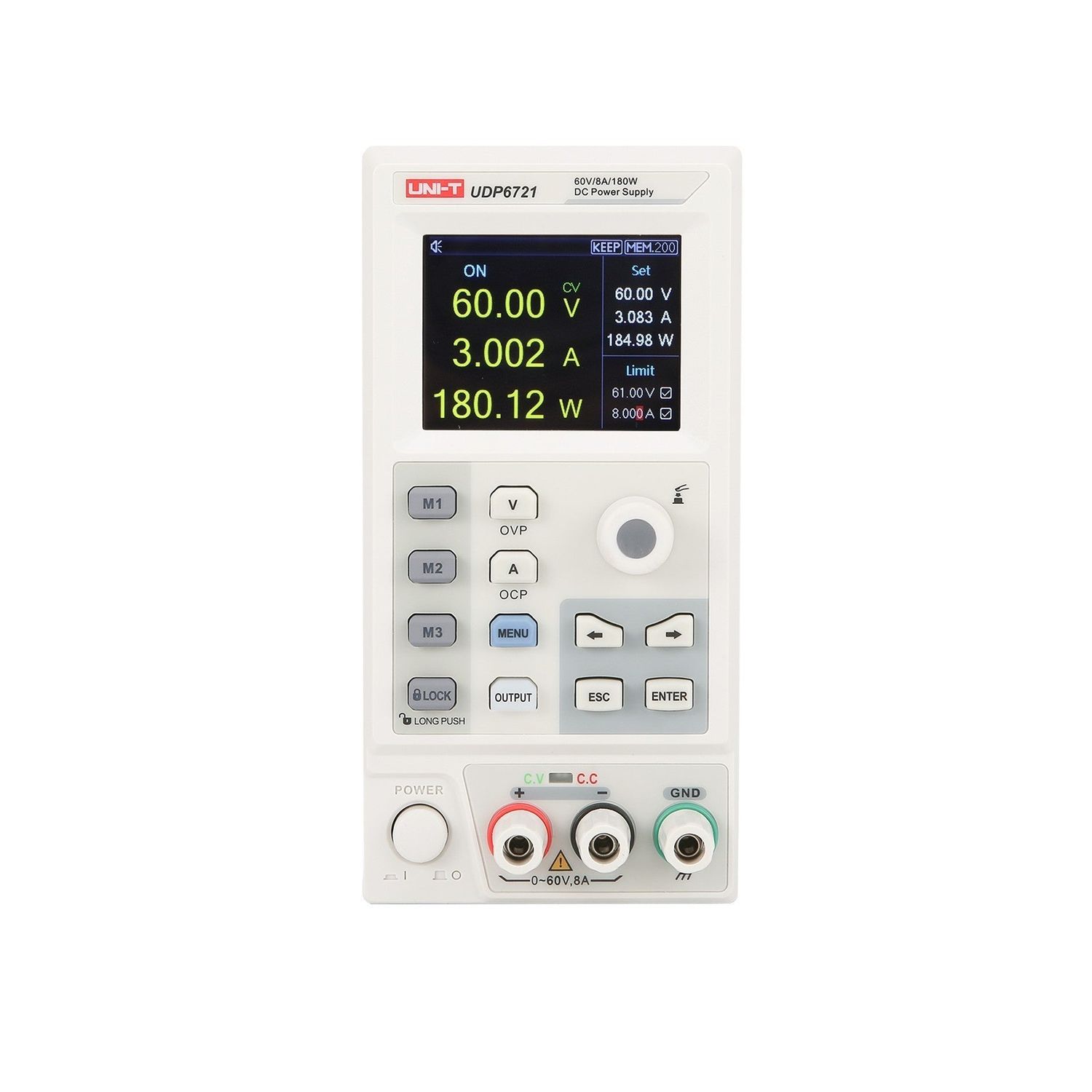

UDP6721 180W 60V/8A Programmable DC Switching Power Supply
$329.00
1-channel 180W switching DC power supply. Compact footprint with remote interface for automated test, battery simulation, and production environments.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UDP6721 180W 60V/8A Programmable DC Switching Power Supply
Product Details
UPC: 6935750567210
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://instruments.uni-trend.com/download?cate=39
Equipment Type: DC Power Supply
The UDP6721 is a 180 W programmable DC switching power supply with a wide-range 60 V × 8 A output. A power ratio of 3.0 lets one unit cover voltage/current combinations that would otherwise need two supplies — up to 60 V at 3 A or 22.5 V at 8 A within the same 180 W envelope.
A programmable list mode runs up to 9 steps per sequence (1 ms to 9,999 s per step, 1–9,999 cycles) with a 9-group trigger delayer, and 600 memory groups store output configurations. Remote-sense compensation holds voltage accurate at the load over long leads, OVP/OCP/OTP thresholds are settable across 0–110% of rating, and a 4-digit dual LED shows voltage and current together.
The supply is operated from the front panel by knob or direct numeric entry, or remotely over RS-232 with full SCPI command coverage, suiting it to product design, board debug, and deployed test fixtures.
Key Features
- Voltage Out=60V
- Current Out=8A
- Channels=1Ch
- Power Out=180W
- Programmable=Yes
Specifications
| Output Rating | |
| Rated Voltage | 60 V |
| Rated Current | 8 A |
| Rated Power | 180 W |
| Max V at Rated Current | 22.5 V |
| Max I at Rated Voltage | 3.00 A |
| Programming Resolution | |
| Setting Resolution | V: 10 mV / I: 1 mA |
| Readback Resolution | V: 10 mV / I: 1 mA |
| Programming Accuracy | V: ≤0.05% + 10 mV / I: ≤0.3% + 5 mA |
| Readback Accuracy | V: ≤0.05% + 10 mV / I: ≤0.3% + 5 mA |
| Regulation | |
| Load Regulation | V: ≤0.01% + 3 mV / I: ≤0.02% + 5 mA |
| Line Regulation | V: ≤0.01% + 3 mV / I: ≤0.02% + 5 mA |
| Ripple & Noise | V: <5 mVrms / <50 mVpp / I: <8 mArms |
| Temperature Coefficient | V: ≤100 ppm/°C / I: ≤300 ppm/°C |
| Display & Memory | |
| Display | 4-digit, 4-digit dual LED display |
| Memory Groups | 600 (M1: 100, M2: 100, M3: 400) |
| List Mode | 9-step list with 1 ms–9999 s per step, repeat 1–9999 cycles |
| Trigger Delayer | 9 trigger groups, 1 ms–9999 s per trigger |
| Protection | |
| OVP / OCP / OTP | OVP, OCP, OTP |
| OVP Set Range | 0–110% of rated |
| OCP Set Range | 0–110% of rated |
| Interface & Calibration | |
| Communication | RS-232 + remote sense |
| Software Calibration | Yes |
| AC Input & Environment | |
| AC Input | 100–240 VAC, 47–63 Hz |
| Operating Temperature | 0–40 °C |
| Operating Humidity | ≤80% RH (non-condensing) |
| Storage Temperature | −10 to 70 °C |
| Altitude | ≤2000 m |
| Pollution Degree | Pollution Degree 2 |
| Cooling | Smart fan (load- and temperature-controlled) |
| Mechanical & Compliance | |
| Dimensions | 87 × 174 × 255 mm |
| Dimensions (in) | 3.43 × 6.85 × 10.04 in |
| Weight | 4.2 kg (9.3 lb) |
| Certifications | CE |
| RoHS | Compliant |
| ECCN | 3A992.a |
