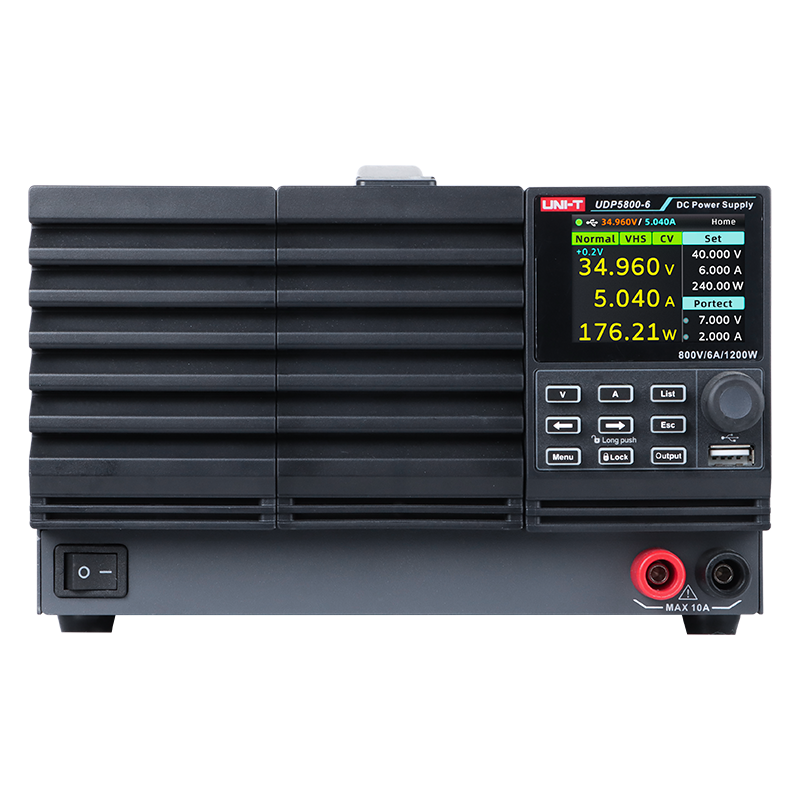

UDP5800-6 1200W 800V/6A Programmable DC Switching Power Supply
$2 409.00
1-channel 1200W switching DC power supply rated to 800V/6A. Wide-output high-voltage source with SCPI control for EV battery pack testing, high-voltage converter development, and aerospace/grid-tied power electronics R&D.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UDP5800-6 1200W 800V/6A Programmable DC Switching Power Supply
Product Details
UPC: 6935750558089
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://instruments.uni-trend.com/download?cate=113
Equipment Type: DC Power Supply
The UDP5800-6 is a single-channel 1200 W programmable DC switching power supply rated to 800 V / 6 A. Voltage resolution is 1 mV below 100 V and 10 mV at or above 100 V; current resolution is 1 mA throughout the range. A front-panel display shows voltage, current, and power simultaneously.
Output is programmable over the full 800 V range with OVP, OCP, OTP, and power-limit protections. List Mode stores programmable voltage/current/dwell sequences for unattended cycling, and the unit accepts remote control over USB-Device, USB-Host, LAN, and Analog I/O using SCPI, supporting integration into automated test systems. The 3+2 year warranty covers the instrument and its calibration period.
It suits high-voltage DC applications requiring 1200 W of output capacity, including EV drive-system and battery-module test, high-voltage DC/DC converter validation, dielectric and insulation characterization, and production-test fixtures operating at the 800 V tier.
Key Features
- Voltage Out=800V
- Current Out=6A
- Channels=1Ch
- Power Out=1200W
- Programmable=Yes
Specifications
| DC Voltage Out | 800 V |
| DC Current Out | 6 A |
| DC Power Out | 1200 W |
| Voltage Resolution | 1 mV (< 100 V) / 10 mV (≥ 100 V) |
| Current Resolution | 1 mA |
| Programmable | Yes |
| Channels | 1Ch |
| Interface | USB-Device, USB-Host, LAN, Analog I/O |
