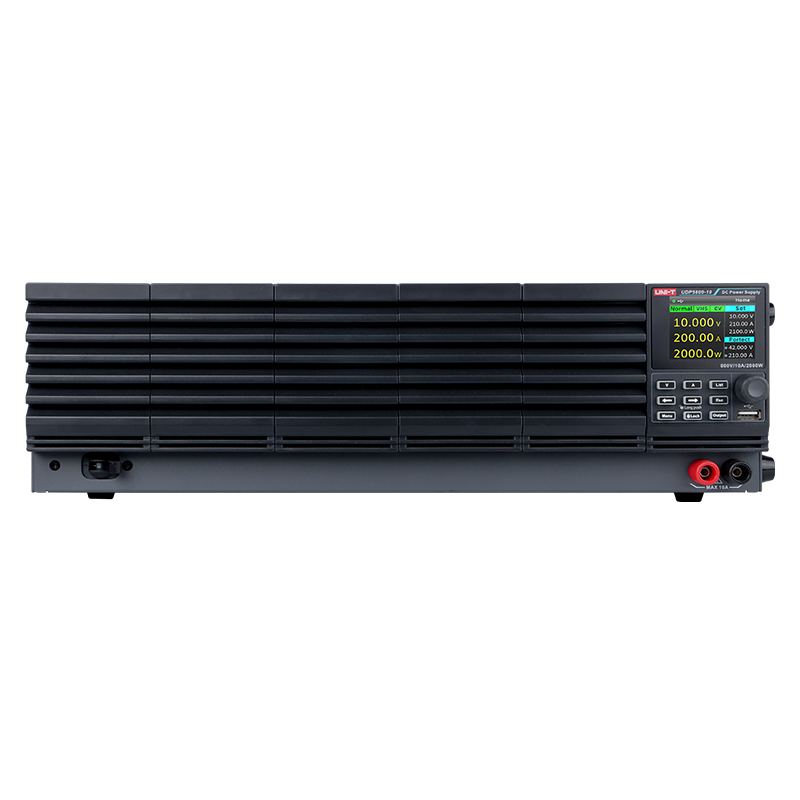

UDP5800-10 2000W 800V/10A Programmable DC Switching Power Supply

The UDP5800-10 is a single-channel 2000 W programmable DC switching power supply rated to 800 V / 10 A and the highest-power model of the UDP5800 series. Voltage resolution is 1 mV below 100 V and 10 mV at or above 100 V; current resolution is 1 mA throughout the range. A front-panel display shows voltage, current, and power simultaneously.

Output is programmable over the full 800 V range with OVP, OCP, OTP, and power-limit protections. List Mode stores programmable voltage/current/dwell sequences for unattended cycling, and the unit accepts remote control over USB-Device, USB-Host, LAN, and Analog I/O using SCPI, supporting integration into automated test systems. The 3+2 year warranty covers the instrument and its calibration period.

It targets demanding high-voltage DC test requirements including EV powertrain and battery-pack validation, high-voltage inverter and motor-drive characterization, dielectric testing, and automated production-test applications needing up to 2 kW at 800 V from a single programmable supply.

Key Features

• Voltage Out=800V
• Current Out=10A
• Channels=1Ch
• Power Out=2000W
• Programmable=Yes
