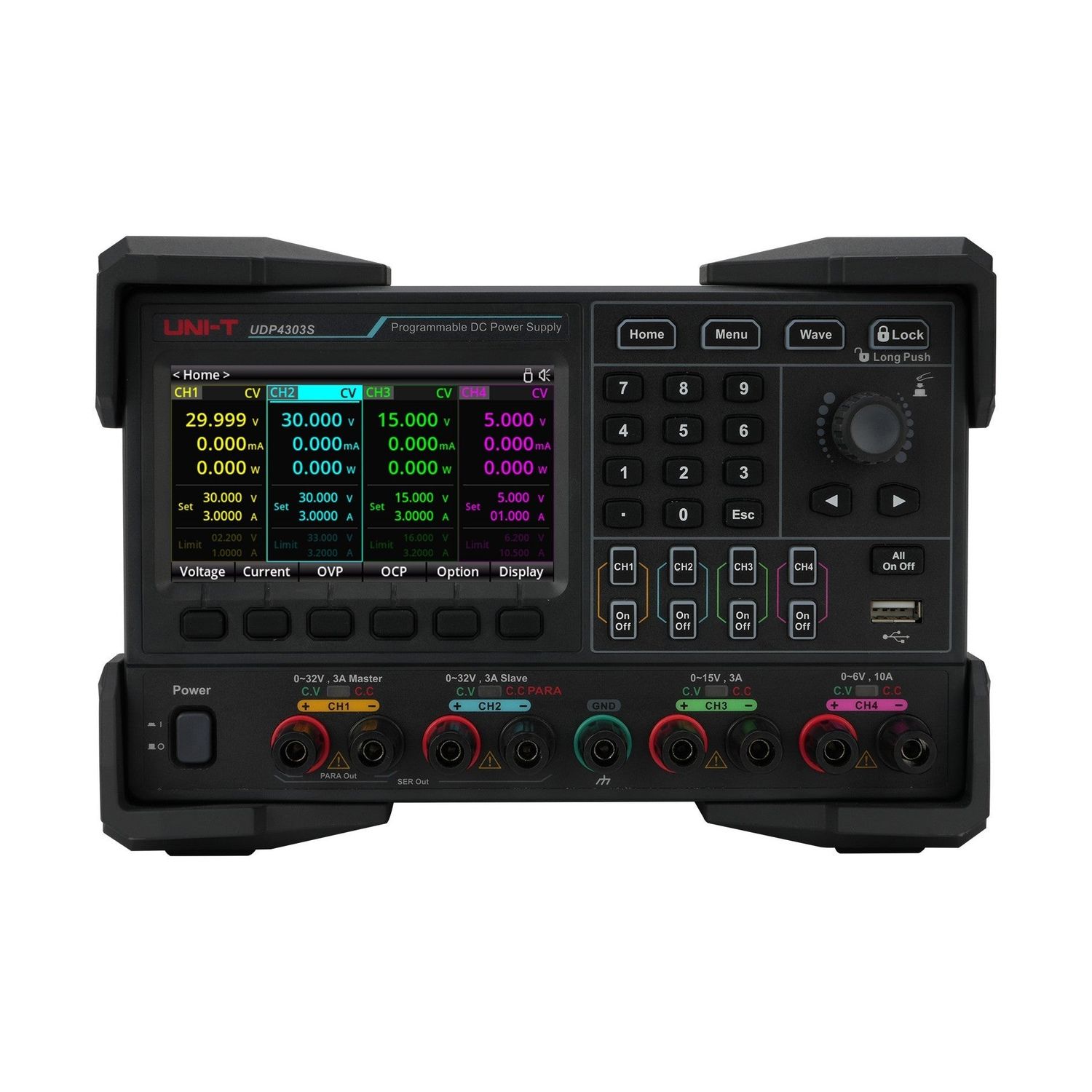

UDP4303S 4Ch 297W 32V/10A Programmable Linear DC Power Supply
$1 399.00
4-channel 297W DC power supply. Reliable bench-top power for development, test, and production.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UDP4303S 4Ch 297W 32V/10A Programmable Linear DC Power Supply
Product Details
UPC: 6935750543139
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://instruments.uni-trend.com/download?cate=99
Equipment Type: DC Power Supply
The UDP4303S is a four-channel precision programmable linear DC power supply with 297 W total output and fully isolated channels: CH1 and CH2 at 0–32 V / 3 A, CH3 at 0–15 V / 3 A, and CH4 at 0–6 V / 10 A. Linear regulation holds output ripple under 350 µVrms, and a low-current mode resolves down to 1 µA across all channels for IoT, sensor, and battery-drain testing.
Output sampling at 8 kSa/s drives a real-time voltage/current/power waveform display, and 1 ms programming-time resolution supports arbitrary waveforms via a 512-group list with sine, ramp, and pulse templates. CH1 and CH2 combine for up to 64 V in series or 6 A in parallel, with four-wire remote sense on all channels, a controllable bleeder circuit, and configurable OCP (0–10 s delay, under 3 ms fastest).
Remote control is provided over USB, LAN, and RS-232 with SCPI, a web-browser interface, and digital trigger I/O, suiting it to precision analog, sensor, and automated test work.
Key Features
- Voltage Out=32V
- Current Out=10A
- Channels=4Ch
- Power Out=297W
- Programmable=Yes
Specifications
| Model | UDP4303S |
| Channels | 4, fully electrically isolated |
| Output Voltage | CH1 & CH2: 0–32V, CH3: 0–15V, CH4: 0–6V |
| Output Current | CH1 & CH2: 0–3A, CH3: 0–3A, CH4: 0–10A |
| Total Power | 297W |
| Load Regulation (Voltage) | <0.01% + 2 mV |
| Load Regulation (Current) | <0.01% + 250 µA |
| Line Regulation (Voltage) | <0.01% + 2 mV |
| Output Ripple & Noise | <350 µVrms / 2 mVpp (20 Hz–20 MHz) |
| Ripple Current | <2 mArms |
| Transient Response | <50 µs to ±15 mV settling |
| Command Processing Time | <10 ms |
| Programming Resolution | Voltage: 1 mV, Current: 0.1 mA |
| Readback Resolution | Voltage: 1 mV, Current: 0.1 mA (low current: 1 µA) |
| Sampling Rate | 8 kSa/s (all channels) |
| Programming Time Resolution | 1 ms (512 groups max) |
| Programming Accuracy (1 yr) | Voltage: CH1–3 ±(0.03%+8 mV), CH4 ±(0.04%+4 mV)
Current: CH1–3 ±(0.15%+5 mA), CH4 ±(0.15%+10 mA) |
| Readback Accuracy (1 yr) | Voltage: CH1–3 ±(0.03%+8 mV), CH4 ±(0.08%+3 mV)
Current: CH1–3 ±(0.15%+5 mA), CH4 ±(0.15%+10 mA) |
| Series Mode (CH1+CH2) | Up to 64V |
| Parallel Mode (CH1+CH2) | Up to 6A |
| Protection | OVP, OCP (0–10s configurable, <3 ms fastest), OTP, Sense protection |
| Display | 4.3-inch TFT LCD (480×272), 6 display styles |
| Interfaces | USB Host, USB Device, LAN, RS-232, Digital I/O (4-line trigger), Sense terminals |
| Web Server | Built-in browser-based control |
| Storage | 10 status + 10 list + 10 delayer files (local), 5 presets, USB export |
| AC Input | 100V/120V/220V/230V ±10%, 50/60 Hz |
| Dimensions (W×H×D) | 225 × 159.6 × 445 mm |
| Weight | 10.5 kg |
| Operating Temperature | 0°C to +40°C |
