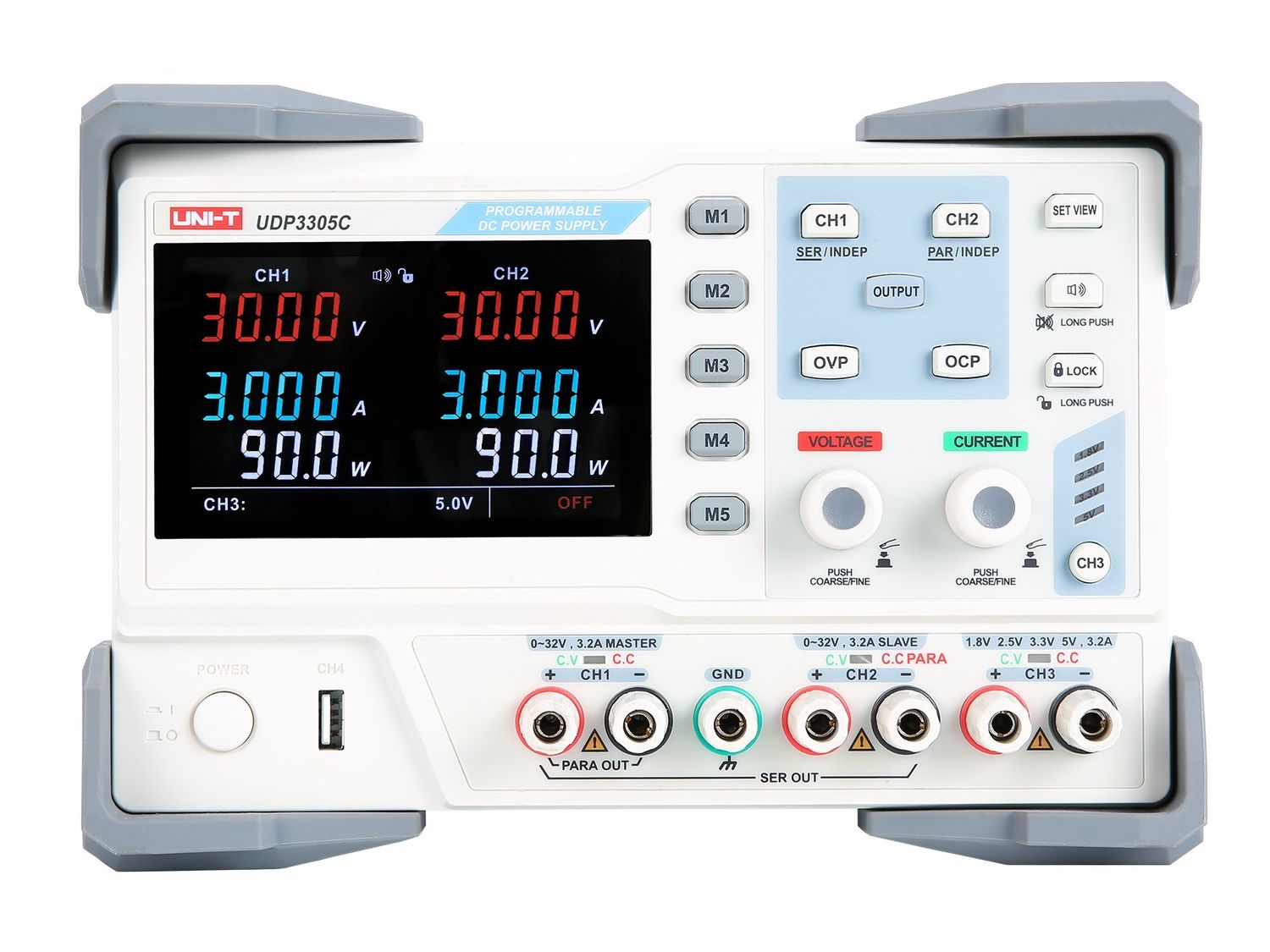

Name: UDP3305C 3Ch 315W Advanced-Series Programmable Linear DC Power Supply
SKU: 181400100029X
Price: 389.0 USD
Availability: InStock

UDP3305C 3Ch 315W Advanced-Series Programmable Linear DC Power Supply

Product Details

Warranty: 3 years

Equipment Type: DC Power Supply

The UDP3000 Series Programmable DC power supply is a cost-effective program control DC power supply with outstanding performance, reliable output and clear interface. The UDP3305C DC power supply has three independent outputs. Two of them are adjustable outputs of 30V/5A, the other one is a fixed selectable output of 1.8V/2.5V/3.3V/5V/3A (fine adjustable). With the constant voltage (CV) and constant current (CC) modes, short circuit and overvoltage protection features, the instrument can perfectly meet various test requirements.

	3 CH outputs, High precision Display 3 independent outputs, 4-digit voltage and current high-precision display: 10mV/1mA
Five sets of settings to save and recall Five groups of M1–M5 settings are saved and recalled, long press to store and short press to recall, making the test work efficient and convenient.
	Buzzer switch and key lock function, shutdown memory function, SET VIEW function Buzzer switch: switch the buzzer according to the working environment Key lock function: prevent accidental touch and wrong setting during normal working process Shutdown memory function: restore the last saved setting value next time the machine is turned on SET VIEW function: call preset value with one key
Remote control DIGITAL I/O interface The remote control power supply CH1/CH2 channels can be output and closed through DIGITAL I/O terminals

UDP3305C 3Ch 315W Advanced-Series Programmable Linear DC Power Supply

3 CH outputs, High precision Display

Five sets of settings to save and recall

Buzzer switch and key lock function, shutdown memory function, SET VIEW function

Remote control DIGITAL I/O interface
