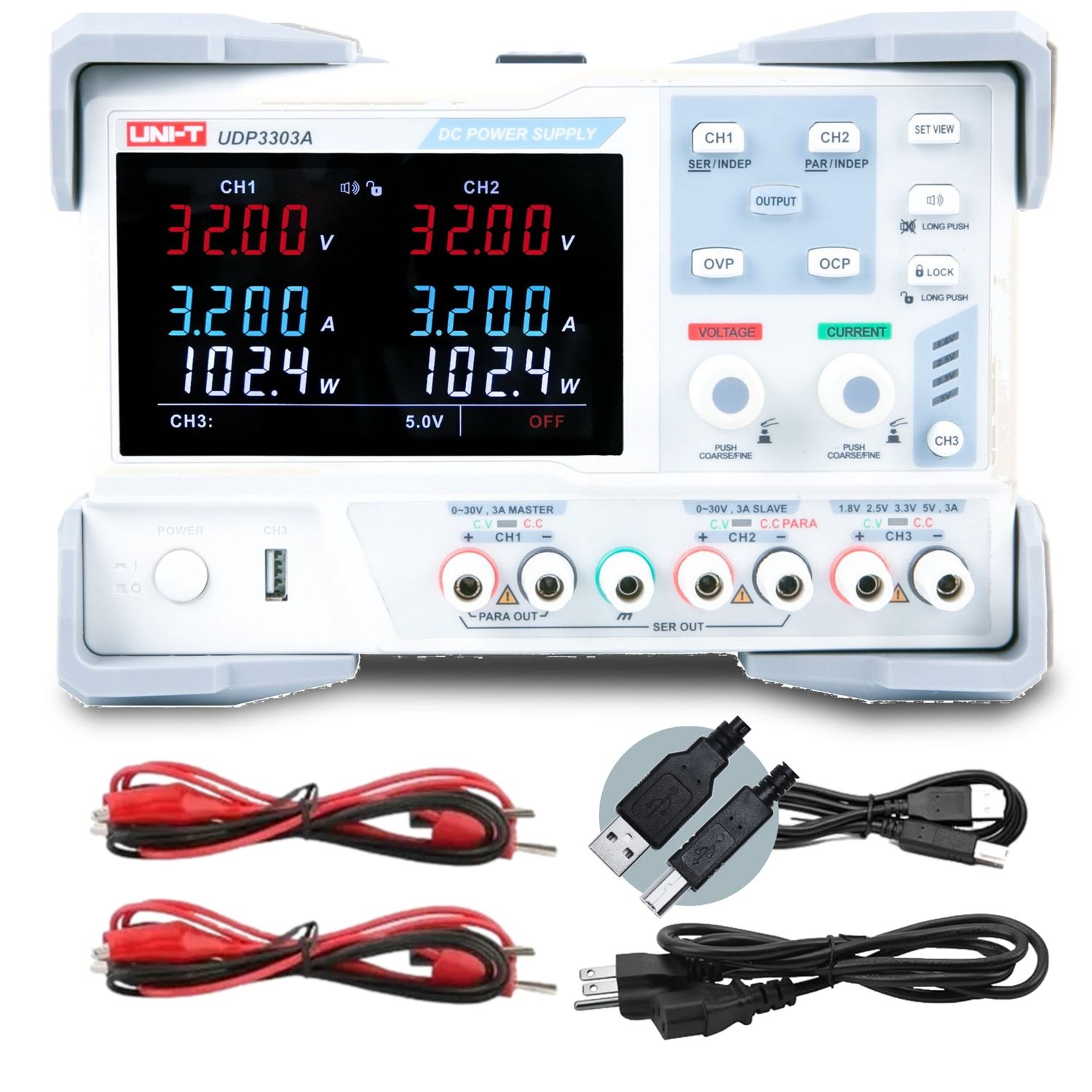

UDP3303A 3Ch 195W 30V/3A Linear DC Power Supply

The UDP3303A is a three-channel linear bench DC power supply with 195 W total output. CH1 and CH2 are adjustable from 0–30 V at 0–3 A, and a third channel switches between fixed 1.8 V, 2.5 V, 3.3 V, and 5 V logic rails at 3.2 A. Linear regulation holds output ripple under 1 mVrms.

CH1 and CH2 combine in series for up to 60 V or in parallel for up to 6 A from the front panel, with a master-slave tracking mode for matched dual-rail testing. Each channel offers 10 mV / 1 mA setting resolution on a 4-digit display, with configurable per-channel OVP/OCP, over-temperature shutdown, keypad lock, and five preset memory groups. A front-panel 5 V / 2 A USB-A port provides charging power.

Operation is front-panel only by knob and keypad, suiting it to low-noise analog and audio work, embedded and digital prototyping, and general bench use.

Key Features

• Voltage Out=30V
• Current Out=3A
• Channels=3Ch
• Power Out=195W
