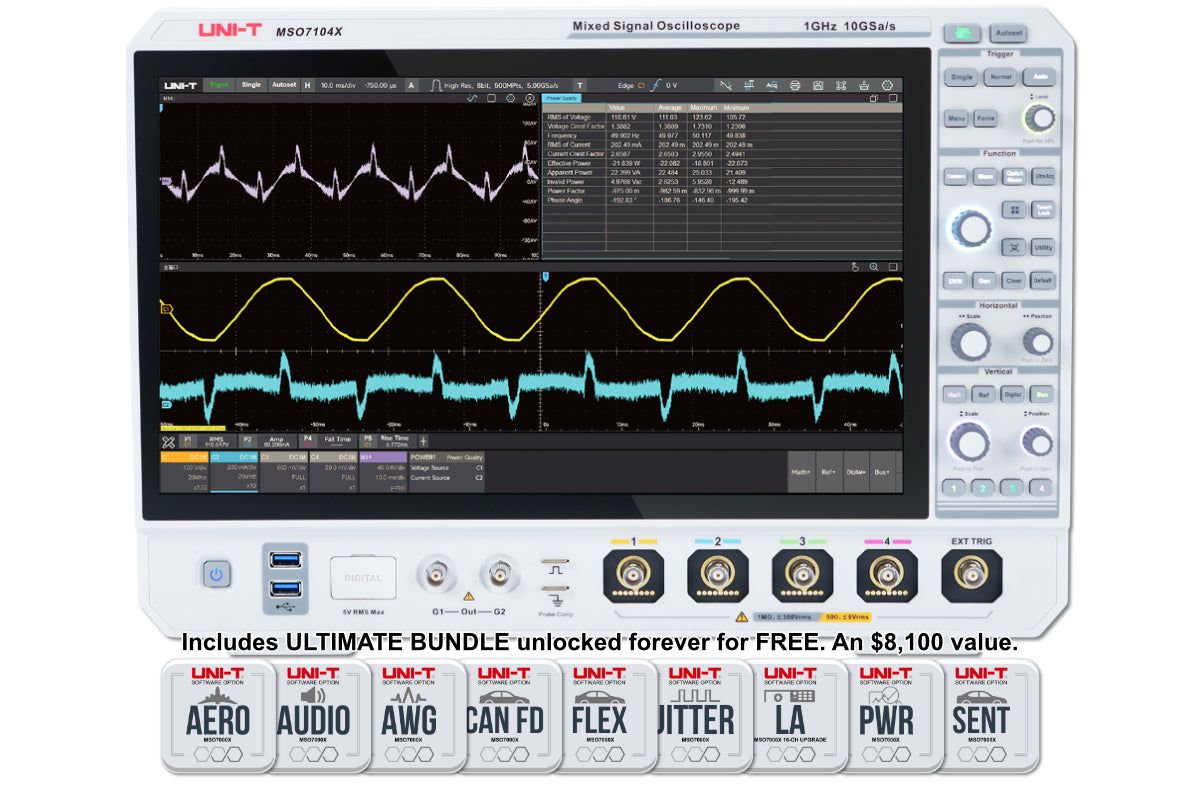

MSO7104X 1 GHz 4Ch Nine-in-One Oscilloscope

The MSO7104X is a 1 GHz, 4-channel mixed signal oscilloscope built on a Windows 10 IoT computing platform with an Intel Core i5 processor, 8 GB RAM, and a 128 GB SSD, and the entry model of the MSO7000X line. It provides a 10 GSa/s real-time sample rate in single-channel mode (5 GSa/s dual, 2.5 GSa/s full four-channel), up to 1 Gpts of acquisition memory, UltraAcq waveform mapping at ≥800,000 wfms/s standard (2,000,000 wfms/s in Sequence mode), and a 15.6-inch FHD 1920×1080 capacitive multi-touch display.

The 8-bit front end reaches up to 12 effective bits via High Resolution acquisition mode and an additional +3 bits via ERes filtering. A calculated rise time of 350 ps resolves leading-edge content on wide-bandgap (GaN, SiC) switching devices, and selectable 50 Ω / 1 MΩ inputs (1 MΩ caps at 500 MHz) cover both general-purpose and RF-grade 50 Ω signal chains on the same front end. The platform integrates oscilloscope, optional 16-channel logic analyzer, enhanced-FFT spectrum analyzer, optional dual-channel arbitrary waveform generator, 4-digit digital voltmeter, 8-bit hardware frequency counter, 11-protocol serial-bus analyzer, optional power analyzer, and optional jitter analyzer with eye diagram. Standard decoding covers RS-232/422/485/UART, I²C, SPI, CAN, and LIN, with CAN-FD, FlexRay, SENT, AudioBus, and MIL-STD-1553/ARINC 429 optional. Mask and limit testing is standard, with SCPI (USBTMC), gigabit LAN, and browser-based remote control.

On-instrument MATLAB and Python post-processing, 48 automated measurements, and the Windows platform suit 1 GHz mixed-signal R&D validation, switching-converter design, high-speed digital interface characterization, and test labs that need an instrumentation platform rather than a pure oscilloscope.

Key Features

• Bandwidth=1GHz
• Channels=4Ch+16D (opt)
• Sample Rate=10GSa/s
• Memory Depth=1Gpts
• Vertical Resolution=8 bits
• Logic Probes=Optional
