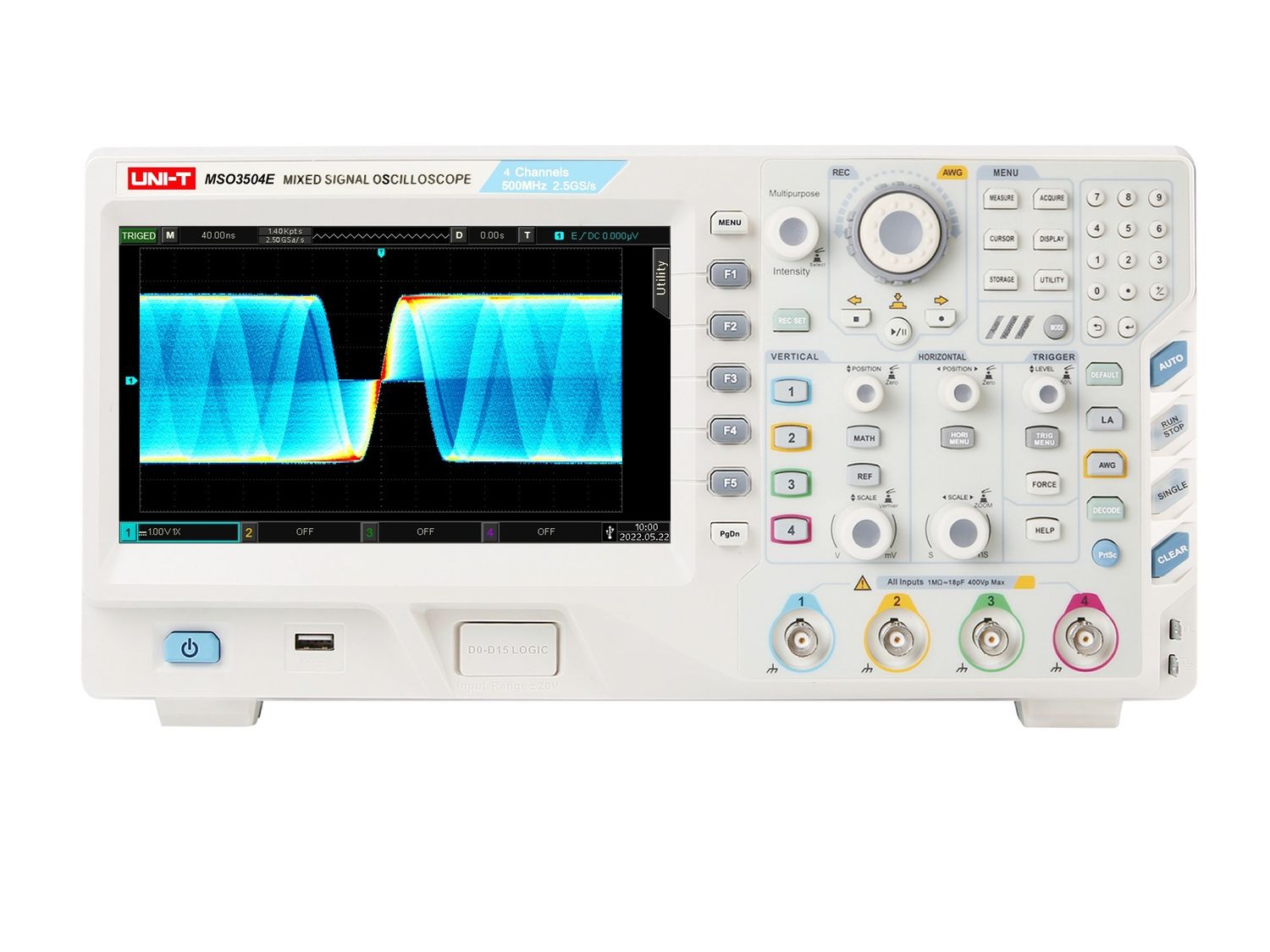

Elevate Your Measurements with the UNI-T MSO3504E Mixed Signal Oscilloscope (MSO)

MSO3504E Oscilloscope Area Trigger

The UNI-T MSO3504E Mixed Signal Oscilloscope (MSO) is the pinnacle of versatility and performance, equipped with four analog input channels for an expanded range of measurement applications. Built on UNI-T's original Ultra Phosphor technology, it combines user-friendliness, exceptional technical specifications, and an array of functional features to streamline your measurement tasks. Whether you work in communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, on-site maintenance, R&D, or education, this oscilloscope is tailored to your needs. Its Fast Acquire technology excels at capturing elusive events such as video signals, jitter, noise, and low waveforms, ensuring precise measurements every time.

UNI-T MSO3504E Mixed Signal Oscilloscope Top Specifications:

• Bandwidth: 500MHz
• Analog Channels: 4
• Digital Channels: 16 (UT-M15 Logic probe included)
• Real-Time Sample Rate: 2.5GSa/s
• Max. Memory depth: 250Mpts

MSO3504E Oscilloscope Brand New Interactive Experience

• Waveform Capture Rate: 200,000wfms/s
• Display: 8in Multi-point Capacitive Touchscreen

Unleash the Power of Versatility

500MHz Bandwidth: The UNI-T MSO3504E Mixed Signal Oscilloscope boasts a 500MHz bandwidth, a testament to its ability to handle high-frequency signals with ease. Adhering to the "Rule of Five," this oscilloscope provides ample bandwidth for applications up to 100MHz and below.

Four Analog Input Channels: With four channels at your disposal, the UNI-T MSO3504E Mixed Signal Oscilloscope allows you to simultaneously measure multiple signals. This is invaluable for debugging circuits, monitoring clock signals alongside data lines in serial protocol work, and analyzing video signals. When you need versatility, these four channels deliver.

Blazing Fast Real-Time Sample Rate: With a real-time sample rate of 2.5GSa/s, the UNI-T MSO3504E Mixed Signal Oscilloscope ensures you capture even the most transient events with unrivaled precision. No detail goes unnoticed.

Exceptional Waveform Capture Rate: The UNI-T MSO3504E Mixed Signal Oscilloscope offers a waveform capture rate of 200,000wfms/s, enabling swift and thorough analysis of complex signal behavior. Dive into harmonic content, distortion, noise characteristics, and more.

MSO3504E Oscilloscope Ultra High Capture Rate

Comprehensive Trigger Functions: Advanced trigger and bus trigger functions empower you to accurately and rapidly capture the signal of interest. Triggers for the UNI-T MSO3504E Mixed Signal Oscilloscope include edge, pulse width, video, ramp, runt pulse, over-amplitude pulse, delay, timeout, duration, setup hold, Nth edge, and pattern trigger.

Efficient Pass/Fail Analysis: Simplify production and quality assurance tasks with the pass/fail test function of the UNI-T MSO3504E Mixed Signal Oscilloscope. Establish standard waveforms and effortlessly compare others against them, instantly identifying signals that fall outside the defined thresholds.

Robust Logic Analysis: The UNI-T MSO3504E Mixed Signal Oscilloscope excels in logic analysis, serving parallel bus analysis, protocol decoding, and timing measurements. Customize logical 1 and 0 values and utilize features like Rank Selection, Data Bus Setting, Group Setting, Event Lists, and more.

Multi-Function Instrument: Beyond its oscilloscope capabilities, the UNI-T MSO3504E Mixed Signal Oscilloscope functions as a versatile multi-function instrument. It acts as a frequency meter and a digital voltmeter (DVM), supporting multi-channel independent AC/DC true RMS measurements for comprehensive data gathering.

Swift Full Memory Hardware Decoding: Experience a significant improvement in decoding speed, thanks to full-memory hardware decoding and a deep storage capacity of 250Mpts on the UNI-T MSO3504E Mixed Signal Oscilloscope. Decoding time is reduced from seconds to milliseconds, enabling real-time decoding and enhancing problem diagnosis efficiency.

Generous Memory Depth: With 250Mpts of memory depth per channel, the UNI-T MSO3504E Mixed Signal Oscilloscope maintains a high sampling rate across an extended time base range. Capture abnormal waveforms with ease, even in prolonged time intervals.

MSO3504E Oscilloscope Rich Trigger Function

Intuitive Channel Split Screen Function: Analyze waveform details effortlessly using the original Multi-Scopes technology. Customize each channel's frequency, amplitude, and waveform settings to gain a comprehensive view of your measurements.

Vivid 256-Level Grayscale Display: Powered by the original Ultra Phosphor display technology the UNI-T MSO3504E Mixed Signal Oscilloscope ensures a lasting display of waveform details and occasional abnormalities. Observe accumulated effects over extended periods without interruption.

Ultra-High Capture Rate: Leveraging innovative digital signal parallel processing technology, the UNI-T MSO3504E Mixed Signal Oscilloscope achieves an ultra-high capture rate of 200,000wfms/s in normal sampling and an astounding 1,000,000wfms/s in Fast Acquire mode. Efficiently capture transient signals and conduct in-depth analysis.

XY Mode for Phase Measurement: XY mode, short for XY plot mode, is a specialized feature in electrical engineering instrumentation and measurement equipment. It is primarily employed in the context of oscilloscopes and similar instruments. In this mode, the UNI-T MSO3504E Mixed Signal Oscilloscope takes two input signals, typically voltage waveforms, and plots one signal on the X-axis and the other on the Y-axis to create a unique graphical representation of their relationship.

MSO3504E Oscilloscope Logic Analysis Probe

Rich Measurement Functions: With the UNI-T MSO3504E Mixed Signal Oscilloscope, you will benefit from 36 different automatic parameter measurement types, significantly improving measurement efficiency and accuracy across various waveforms.

Brand New Interactive Experience: The 8-inch touch screen, featuring gesture operations such as click, slide, zoom, edit, and drag, ensures a smoother and more convenient measurement experience. Master the device quickly, with traditional button and knob operation options retained for added flexibility.

Protocol Trigger and Decode Options: Explore a wide array of trigger and decoding options available for the UNI-T MSO3504E Mixed Signal Oscilloscope (MSO). Discover industry-specific packages and individual options for RS232, I2C, SPI, CAN, CAN-FD, LIN, or FlexRay under the Options tab.

Elevate your measurements and achieve unparalleled versatility with the UNI-T MSO3504E Mixed Signal Oscilloscope. Get yours today!

MSO3504E Oscilloscope Web Control

MSO3504E Oscilloscope LA Logic Analyzer

MSO3504E Oscilloscope Bode Plot

MSO3504E Oscilloscope Full Memory Hardware Decoding

MSO3504E Oscilloscope Maximum Memory Depth

MSO3504E Oscilloscope XY Mode

MSO3504E Oscilloscope Rich Measurement Functions
