Experience Excellence in Measurement with the UNI-T MSO3354E Mixed Signal Oscilloscope (MSO)

MSO3354E Oscilloscope LA Logic Analyzer

The UNI-T MSO3354E Mixed Signal Oscilloscope (MSO) is your gateway to multifunctionality, high performance, and unmatched value, all powered by UNI-T's cutting-edge Ultra Phosphor technology. Designed with engineers in mind, this oscilloscope seamlessly combines ease of use, exceptional technical indicators, and a wide array of functional features, enabling you to complete your measurement tasks efficiently. Whether you're working in communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, on-site maintenance, or R & D / education, the MSO3354E is your ideal companion.

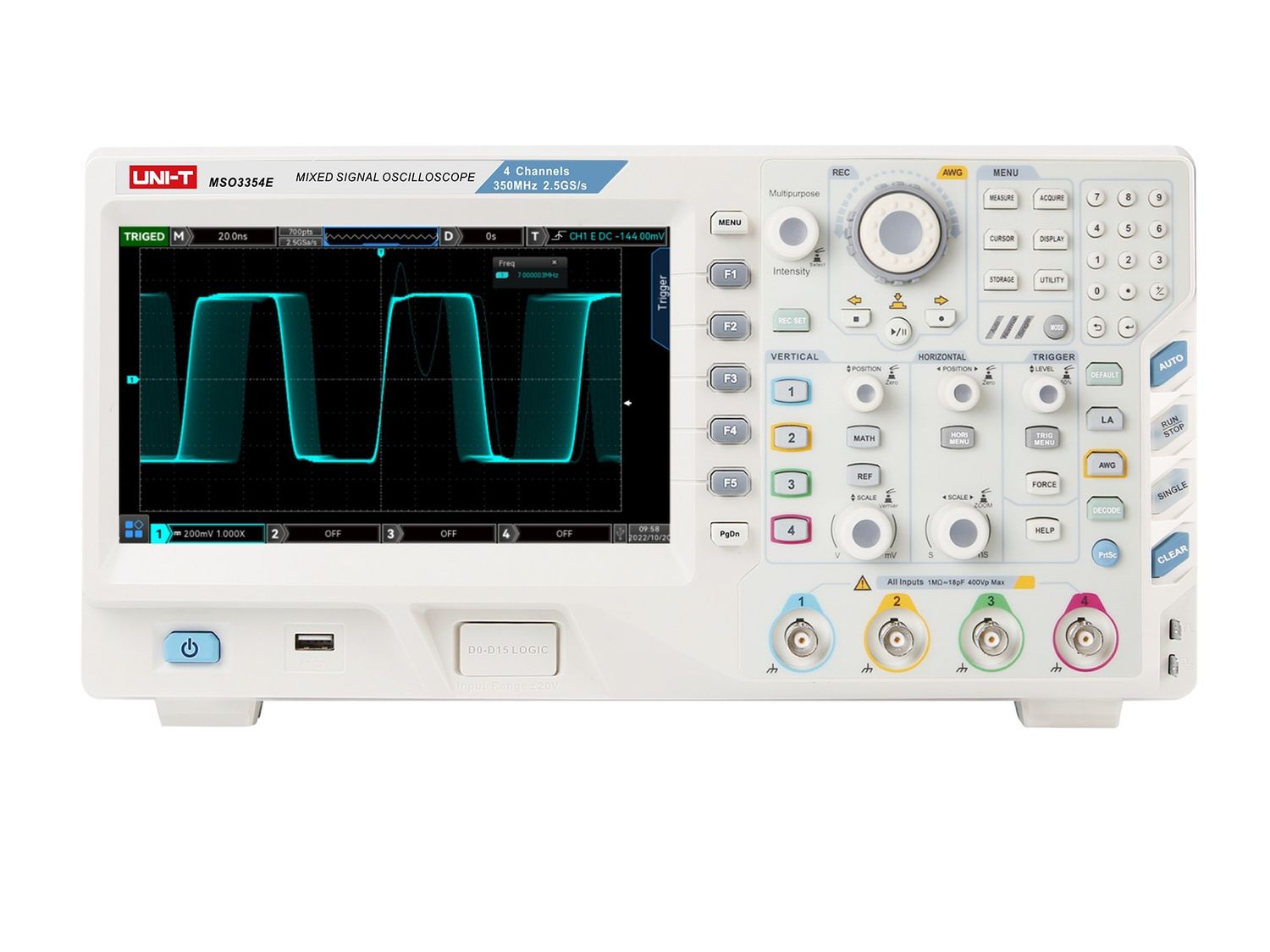

UNI-T MSO3354E Mixed Signal Oscilloscope Top Specifications:

• Bandwidth: 350MHz
• Analog Channels: 4
• Digital Channels: 16 (UT-M15 Logic probe included)
• Real-Time Sample Rate: 2.5GSa/s
• Max. Memory depth: 250Mpts


MSO3354E Oscilloscope Maximum Memory Depth

• Waveform Capture Rate: 200,000wfms/s
• Display: 8in Multi-point Capacitive Touchscreen

Key Features and Benefits of the UNI-T MSO3354E Mixed Signal Oscilloscope (MSO):

• Impressive 350MHz Bandwidth: When assessing an oscilloscope, like the UNI-T MSO3354E Mixed Signal Oscilloscope, the bandwidth is a critical consideration. This oscilloscope boasts a substantial 350MHz bandwidth, ensuring you're equipped to tackle a wide range of devices and circuits. Adhering to the industry-standard "Rule of Five," this oscilloscope provides five times the bandwidth needed for your fastest signals, making it suitable for applications up to 70MHz and below.
• 4 Analog Input Channels: With its four analog input channels, the UNI-T MSO3354E Mixed Signal Oscilloscope empowers you to measure multiple signals simultaneously. This capability is invaluable for debugging circuits with multiple signals and is particularly useful in serial protocol work, enabling the monitoring of clock signals alongside data lines, enhancing video signal analysis, and more.


MSO3354E Oscilloscope Bode Plot

• 1M pts Enhanced FFT Analysis: Dive deep into frequency domain measurement with the UNI-T MSO3354E Mixed Signal Oscilloscope's comprehensive FFT analysis capabilities. Enjoy full-screen, split-screen, and waterfall chart views for swift exploration. Leverage FFT for uncovering harmonic content, detecting distortion in measurement systems, analyzing noise in DC power supplies, and exploring vibration analysis.
• Extensive Trigger Functions: Achieve precision in your measurements with an extensive array of advanced trigger and bus trigger functions. From edge and pulse width triggers to video, ramp, runt pulse, and more, the UNI-T MSO3354E Mixed Signal Oscilloscope ensures accurate and rapid capture and display of your signal of interest.
• Enhanced Area Trigger: Elevate your signal capture capabilities with the area trigger, which seamlessly complements basic, advanced, and protocol triggers, enabling you to efficiently capture various occasional and complex characteristic signals.
• Efficient Pass/Fail Analysis: The pass/fail test function simplifies quality assurance and production tasks. Configure a standard waveform, establish high and low limits, and let the UNI-T MSO3354E Mixed Signal Oscilloscope identify signals that fall outside these thresholds, ensuring rigorous quality control.


MSO3354E Oscilloscope Full Memory Hardware Decoding

• Logic Analysis Probe UT-M15: Streamline the analysis of digital signals with the included UT-M15 probe, which comes equipped with two 8-channel probes. Connecting to the device under test is a breeze, especially when dealing with square pins, as the UT-M15 can be directly connected with 8X2 square pin headers with pins of 2.54mm. It boasts excellent electrical characteristics, including a 101kΩ input impedance and a mere 9.0pF capacitive load.
• Robust Logic Analyzer: The UNI-T MSO3354E Mixed Signal Oscilloscope isn't just an oscilloscope; it's also a versatile logic analyzer, ideal for parallel bus analysis, protocol decoding, and timing measurements. Use preset or user-defined values to determine logical 1 and 0, and explore advanced functions like Rank Selection, Data Bus Setting, Group Setting, Event Lists, and more.
• Multi-Function Instrument: Beyond its oscilloscope capabilities, the UNI-T MSO3354E Mixed Signal Oscilloscope also serves as a frequency meter and a digital voltmeter (DVM). Enjoy multi-channel independent AC/DC true RMS measurements for added versatility.
• Swift Full Memory Hardware Decoding: Experience lightning-fast decoding performance thanks to full-memory hardware decoding, even with deep storage of 250Mpts. Say goodbye to lengthy decoding times, as milliseconds now replace seconds, ensuring real-time decoding for swift problem diagnosis. Recorded waveforms also support full-memory hardware real-time decoding.
• Generous Memory Depth: The UNI-T MSO3354E Mixed Signal Oscilloscope boasts a substantial memory depth of 250Mpts per channel. This means you can maintain a high sampling rate across a wider time base range while preserving the overall waveform and intricate details, enhancing your ability to capture abnormal waveforms.


MSO3354E Oscilloscope Rich Measurement Functions

• Intuitive Channel Split Screen Function: Explore waveform analysis with ease, courtesy of the Multi-Scopes technology. Customize each channel with different frequency, amplitude, and waveform settings, facilitating a deeper understanding of your measurements.
• Vivid 256-Level Grayscale Display: Harness the power of Ultra Phosphor display technology to observe waveforms and occasional abnormalities over extended periods, ensuring comprehensive waveform analysis.
• Ultra-High Capture Rate: With the UNI-T MSO3354E Mixed Signal Oscilloscope you will utilize innovative digital signal parallel processing technology to achieve an impressive ultra-high capture rate of 200,000wfms/s in normal sampling and a staggering 1,000,000wfms/s in Fast Acquire mode. Efficiently capture occasional signals for in-depth analysis.
• XY Mode for Phase Measurement: Expedite phase difference measurements between two signals using the XY mode cursor measurement function, streamlining your analysis.
• Rich Measurement Functions: Benefit from access to 36 automatic parameter measurement types, significantly enhancing your measurement efficiency and accuracy across various waveforms.
• Intuitive Interactive Experience: The UNI-T MSO3354E Mixed Signal Oscilloscope features an 8-inch touch screen with support for various gesture operations, ensuring smooth and convenient measurement actions. Master it quickly, all while retaining traditional button and knob operation options.
• Protocol Trigger and Decode Options: Dive deeper into your work with an extensive array of trigger and decoding options available for the UNI-T MSO3354E Mixed Signal Oscilloscope. Explore industry-specific packages or select individual options for RS232, I2C, SPI, CAN, CAN-FD, LIN, or FlexRay.

Unlock unparalleled measurement capabilities with the UNI-T MSO3354E Mixed Signal Oscilloscope (MSO). Elevate your work and experience exceptional value and performance that rivals the best in the market. Don't miss this opportunity to revolutionize your measurement tasks with this remarkable instrument.

MSO3354E Oscilloscope Web Control

MSO3354E Oscilloscope Logic Analysis Probe

MSO3354E Oscilloscope Area Trigger

MSO3354E Oscilloscope Ultra High Capture Rate

MSO3354E Oscilloscope XY Mode

MSO3354E Oscilloscope Rich Trigger Function

MSO3354E Oscilloscope Brand New Interactive Experience
