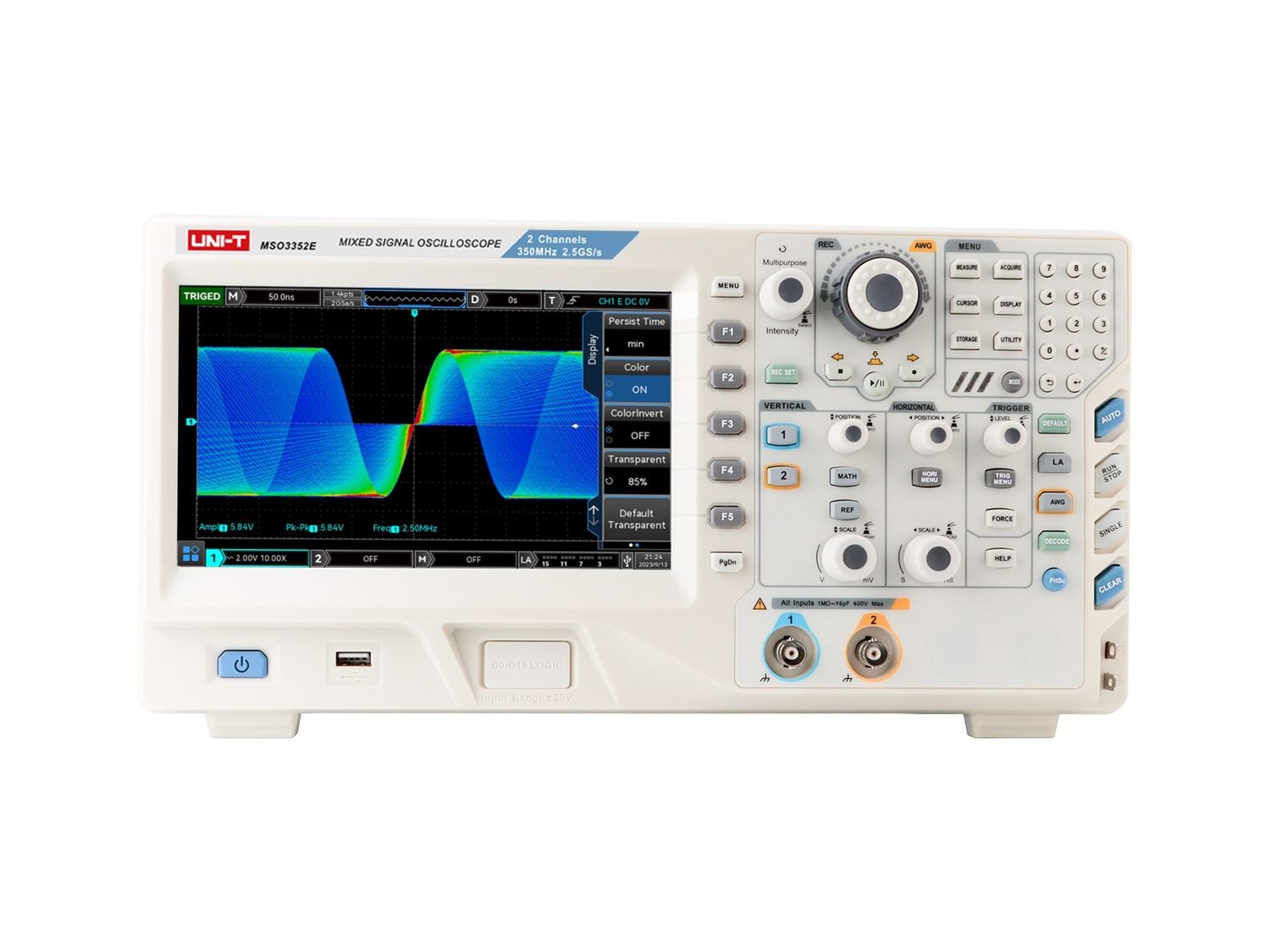

Discover the UNI-T MSO3352E Mixed Signal Oscilloscope (MSO) – Your Gateway to Unmatched Value and Performance

MSO3352E Oscilloscope Web Control

Calling all professional electrical engineers! If you're on the lookout for an oscilloscope that combines cutting-edge features with incredible affordability, the UNI-T MSO3352E is your answer. This multifunctional, high-performance digital phosphor oscilloscope, powered by UNI-T's original Ultra Phosphor technology, is poised to revolutionize your measurement capabilities.

UNI-T MSO3352E Mixed Signal Oscilloscope Top Specifications:

• Bandwidth: 350MHz
• Analog Channels: 2
• Digital Channels: 16 (UT-M15 Logic probe included)
• Real-Time Sample Rate: 2.5GSa/s
• Max. Memory depth: 250Mpts
• Waveform Capture Rate: 200,000wfms/s


MSO3352E Oscilloscope LA Logic Analyzer

• Display: 8in Multi-point Capacitive Touchscreen

Key Reasons to Choose the UNI-T MSO3352E Mixed Signal Oscilloscope (MSO):

• 350MHz Bandwidth: When it comes to oscilloscopes, bandwidth matters. The UNI-T MSO3352E Mixed Signal Oscilloscope offers a remarkable 350MHz bandwidth, ensuring you're prepared to handle a diverse range of devices and circuits. According to the industry-standard "Rule of Five," this oscilloscope provides five times the bandwidth needed for your fastest signals, making it ideal for applications up to 70MHz and below.
• 1M pts Enhanced FFT Analysis: Dive deep into frequency domain measurement with the UNI-T MSO3352E Mixed Signal Oscilloscope's comprehensive FFT analysis capabilities. Enjoy full-screen, split-screen, and waterfall chart views for swift exploration. Use FFT to uncover harmonic content, detect distortion in measurement systems, analyze noise in DC power supplies, and delve into vibration analysis.
• Extensive Trigger Functions: Precision is paramount in your work, and the UNI-T MSO3352E Mixed Signal Oscilloscope delivers with a wealth of advanced trigger options. From edge and pulse width triggers to video, ramp, runt pulse, and more, you can accurately and swiftly capture and display signals of interest.


MSO3352E Oscilloscope Full Memory Hardware Decoding

• Area Trigger: Elevate your signal capture capabilities by harnessing the area trigger. Combine it with basic, advanced, and protocol triggers to efficiently capture various complex characteristic signals.
• Pass/Fail Analysis: Streamline your production and quality assurance tasks with the pass/fail test function. Set a standard waveform, establish high and low limits, and let the UNI-T MSO3352E Mixed Signal Oscilloscope identify any measured signal falling outside these thresholds, ensuring rigorous quality control.
• Logic Analysis Probe UT-M15: Simplify digital signal analysis with the UT-M15 probe included with the UNI-T MSO3352E Mixed Signal Oscilloscope. Its user-friendly design makes device connections a breeze, and it boasts exceptional electrical characteristics, including a 101kΩ input impedance and a mere 9.0pF capacitive load.
• Versatile Multi-Function Instrument: Beyond its role as an oscilloscope, the UNI-T MSO3352E Mixed Signal Oscilloscope doubles as a frequency counter and a digital voltmeter (DVM). Enjoy multi-channel independent AC/DC true RMS measurements for added versatility.
• Full Memory Hardware Decoding: Experience lightning-fast decoding performance thanks to full-memory hardware decoding, even with deep storage of 250Mpts. Say goodbye to lengthy decoding times, as milliseconds now replace seconds, ensuring real-time decoding for swift problem diagnosis. Recorded waveforms also support full-memory hardware real-time decoding.


MSO3352E Oscilloscope XY Mode

• Generous Memory Depth: The UNI-T MSO3352E Mixed Signal Oscilloscope boasts a substantial memory depth of 250Mpts per channel. This means you can maintain a high sampling rate across a wider time base range while preserving the overall waveform and intricate details, enhancing your ability to capture abnormal waveforms.
• Channel Split Screen Function: Discover user-friendly waveform analysis with the Multi-Scopes technology on the UNI-T MSO3352E Mixed Signal Oscilloscope. Customize each channel with different frequency, amplitude, and waveform settings, facilitating a deeper understanding of your measurements.
• Vivid 256-Level Grayscale Display: Harness the power of Ultra Phosphor display technology to observe waveforms and occasional abnormalities over extended periods, ensuring comprehensive waveform analysis.
• Ultra-High Capture Rate: Utilize innovative digital signal parallel processing technology to achieve an impressive ultra-high capture rate of 200,000wfms/s in normal sampling and a staggering 1,000,000wfms/s in Fast Acquire mode. Use the UNI-T MSO3352E Mixed Signal Oscilloscope to efficiently capture occasional signals for in-depth analysis.
• XY Mode for Phase Measurement: Expedite phase difference measurements between two signals using the XY mode cursor measurement function in the UNI-T MSO3352E Mixed Signal Oscilloscope, streamlining your analysis.


MSO3352E Oscilloscope Maximum Memory Depth

• Rich Measurement Functions: Enjoy access to 36 automatic parameter measurements, significantly enhancing your measurement efficiency and accuracy across various waveforms.
• Intuitive Interactive Experience: The UNI-T MSO3352E Mixed Signal Oscilloscope features an 8-inch touch screen with support for various gesture operations, ensuring smooth and convenient measurement actions. Master it quickly, all while retaining traditional button and knob operation options.
• Protocol Trigger and Decode Options: Dive deeper into your work with an extensive array of trigger and decoding options available for the UNI-T MSO3352E Mixed Signal Oscilloscope. Explore industry-specific packages or select individual options for RS232, I2C, SPI, CAN, CAN-FD, LIN, or FlexRay.

Make the smart choice today and experience the exceptional value and performance offered by the UNI-T MSO3352E Mixed Signal Oscilloscope (MSO). Join the ranks of engineers who have unlocked new possibilities with this remarkable instrument and elevate your measurement game to unprecedented heights. Don't miss out on this opportunity to revolutionize your work.

MSO3352E Oscilloscope Bode Plot

MSO3352E Oscilloscope Area Trigger

MSO3352E Oscilloscope Ultra High Capture Rate

MSO3352E Oscilloscope Rich Measurement Functions

MSO3352E Oscilloscope Rich Trigger Function

MSO3352E Oscilloscope Logic Analysis Probe

MSO3352E Oscilloscope Brand New Interactive Experience
