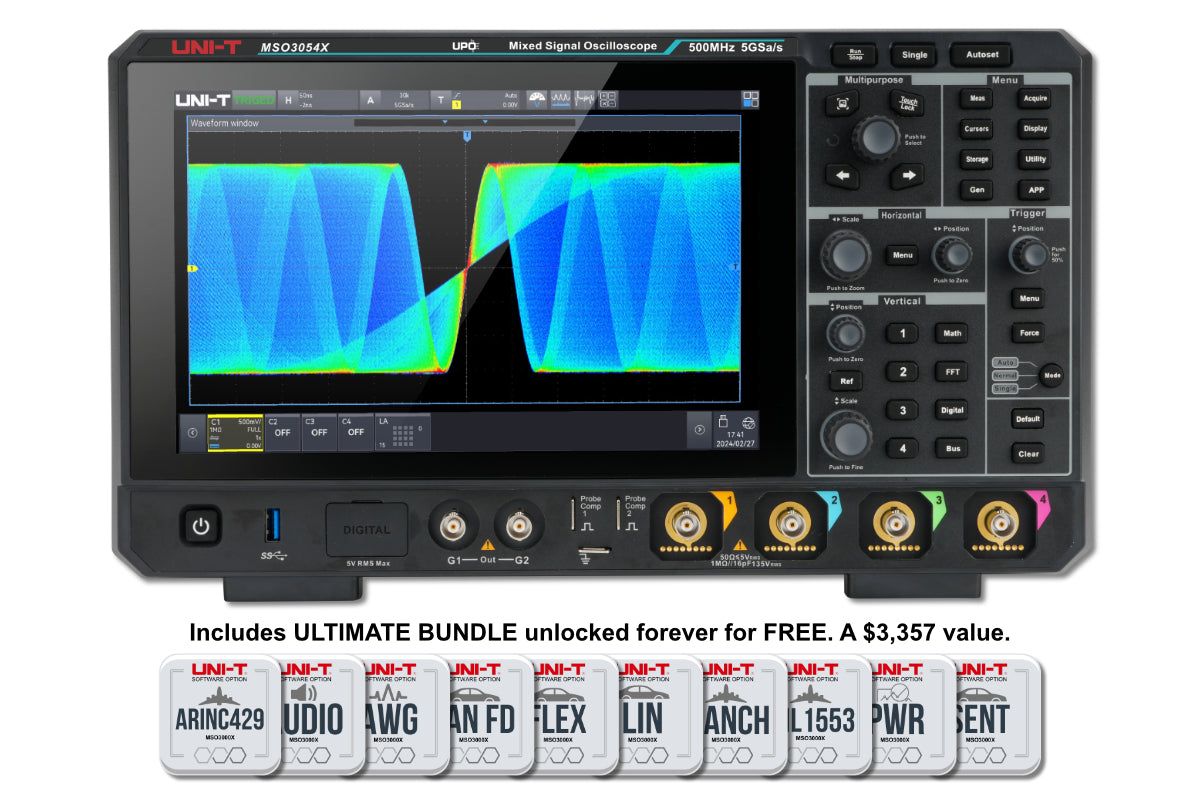

MSO3054X 500 MHz 4Ch Mixed Signal Oscilloscope
$3 599.00
500 MHz 4-channel mixed signal oscilloscope with 5 GSa/s sample rate, 500 Mpts memory depth. Versatile nine-in-one platform for engineering, production, and field applications.
Bandwidth Upgrade
Decode Bundle
Add-on Options
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
MSO3054X 500 MHz 4Ch Mixed Signal Oscilloscope
Product Details
UPC: 6935750530597
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://instruments.uni-trend.com/download?cate=96
Equipment Type: Digital Oscilloscopes
The MSO3054X is a 500 MHz, 4-channel mixed signal oscilloscope. It provides a 5 GSa/s real-time sample rate (interleave), 500 Mpts of acquisition memory, and Ultra Phosphor 3.0 waveform mapping up to 2,000,000 wfms/s in Sequential Mode (800,000 wfms/s standard) on a 10.1-inch capacitive multi-touch display.
The 8-bit front end extends to 12 effective bits with ERES, and a calculated rise time of ≤0.7 ns captures rise-time and overshoot detail on faster MCU and FPGA designs, switching-converter gate drives, and mid-bandwidth signal-integrity work. The instrument integrates oscilloscope, optional 16-channel logic analyzer, optional arbitrary waveform generator, 1.25 GHz spectrum analyzer, 4-digit digital voltmeter, 7-digit hardware frequency counter, protocol analyzer, Bode plot, and optional power analyzer. Twelve protocol decoders span computer, automotive, audio, and aerospace bus families — RS-232/422/485/UART, I²C, and SPI standard, with CAN, CAN-FD, LIN, FlexRay, SENT, Audio, MIL-STD-1553B, ARINC 429, and Manchester optional. An optional 50 MHz dual-channel, 16-bit AWG includes the Bode plot analyzer. Remote control is available over USB 3.0, LAN (VXI-11), SCPI, and a built-in web server, and firmware updates are free.
With 500 Mpts memory for long protocol-event and transient capture, zone triggering, and 54 automated measurements, it suits mixed-signal R&D validation, power-electronics characterization, and engineering benches that need protocol decode, spectrum, generator, and power analysis alongside scope acquisition.
Key Features
- Bandwidth=500MHz
- Channels=4Ch+16D (opt)
- Sample Rate=5GSa/s
- Memory Depth=500Mpts
- Vertical Resolution=8 bits
- Logic Probes=Optional
Specifications
| Specification | MSO3054X |
| Analog Bandwidth | 500 MHz |
| Calculated Rise Time (10% to 90%, typical) | ≤0.7 ns |
| Analog Channels | 4 (plus 1 external trigger channel) |
| Digital Channels | 16 (with optional UT-M15 probe pod) |
| Maximum Real-Time Sample Rate | 5 GSa/s (interleave) / 2.5 GSa/s (non-interleave) |
| Maximum Digital Sample Rate | 1.25 GSa/s |
| Maximum Memory Depth | 500 Mpts |
| Vertical Resolution | 8-bit native; up to 12-bit via ERES |
| Standard Capture Rate | 800,000 wfms/s |
| Sequential Mode Capture Rate | 2,000,000 wfms/s (up to 200,000 frames recorded) |
| Trigger Types | Edge, pulse width, ramp, runt pulse, over-amplitude pulse, delay, timeout, duration, setup & hold, Nth edge, code pattern, video, zone |
| Protocol Decoding (Standard) | RS-232/422/485/UART, I²C, SPI |
| Protocol Decoding (Optional) | CAN, CAN-FD, LIN, FlexRay, SENT, Audio (I²S/LJ/RJ/TDM), MIL-STD-1553B, ARINC 429, Manchester |
| Spectrum Analyzer (FFT) | 0 Hz to 1.25 GHz, up to 4 Mpts FFT, 4 traces, 4 detections, waterfall |
| AWG (Optional MSO3000X-AWG) | 50 MHz, 2 channels, 16-bit, 250 MSa/s; includes Bode plot analyzer |
| Power Analysis (Optional MSO3000X-PWR) | Power quality, harmonic analysis, switching loss, ripple analysis, loop analysis, safe operating area |
| Automated Measurements | 54 (analog channels); up to 27 displayed simultaneously |
| Display | 10.1-inch 1280×800 capacitive multi-touch |
| Interfaces | USB 3.0 Host (3) / USB 3.0 Device (1) / LAN (VXI-11) / HDMI / Gen Out (2) / 10 MHz In/Out / AUX Out |
| Remote Control | SCPI; built-in WebServer (PC and mobile) |
| Certifications | CE, cETLus |
