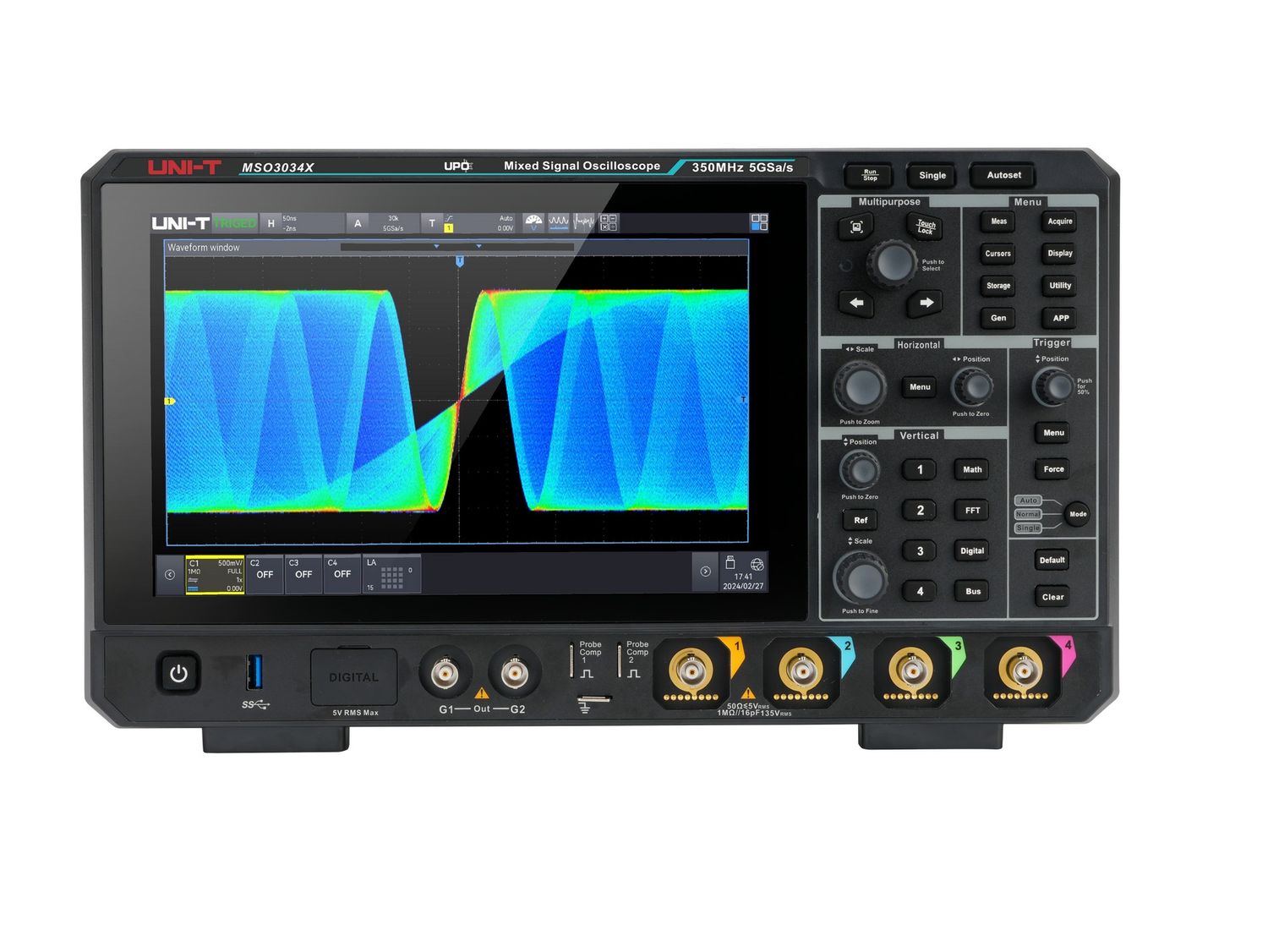

MSO3034X 350MHz 4Ch Mixed Signal Oscilloscope - FREE ULTIMATE Bundle ends 03/31/26

UNI-T MSO3000X 9-in-1

MSO3000X series integrates 9 instrument functions, which includes Digital Oscilloscope, Logic Analyzer, Function/Arbitrary Waveform Generator, Spectrum Analyzer, Digital Voltmeter, High-Precision Frequency Counter, Protocol Analyzer, Bode plot Analyzer and Power Analyzer. This oscilloscope offers a cost-effective solution for users.

• Bandwidth: 350 MHz (also available: MSO3054X: 500 MHz)
• Vertical Resolution: 8-bit, 12-bit ERES
• 4 Analog Ch/16 Digital Ch, Logic Analyzer SW included (probes optional)
• Max Sample Rate: 5 GSa/s per channel
• Memory Depth: 500 Mpts per channel
• Max Capture Rate: 800,000 wfms/s per channel (2,000,000 wfms/s per channel (Sequence Mode)
• Arb Waveform Generator: Dual Channel 50 MHz option
• 10.1-Inch UltraPhosphor 3 Touchscreen Display
• 5-Year Warranty

Features and Benefits Summary

• Analog channel bandwidth: 350 MHz/500 MHz
• Real-time sampling rate of the analog channel is up to 5 GSa/s. The maximum sampling rate of the digital channel is 1.25 GSa/s
• 4 analog channels, 16 digital channels. Maximum memory depth: 500 Mpts
• The maximum waveform capture rate is 800,000 wfms/s (sequence mode: 2,000,000 wfms/s)
• 9 instrument functions: Digital Oscilloscope, Logic Analyzer (requires UT-M15), Function/Arbitrary Waveform Generator (option), Spectrum Analyzer, Digital Voltmeter, Frequency Counter, Protocol Analyzer, Bode Plot Analyzer and Power Analyzer (option)
• Built-in dual-channel 50MHz function/arbitrary waveform generator. Supports loading on-screen oscilloscope data for real-time arbitrary waveform output. Additionally, it includes multiple built-in arbitrary waveforms, enhancing its versatility and functionality.
• Bode plot loop test analysis to analyze the system stability
• Parameter measurement adds histogram and line graph display
• Up to 200,000 frames of uninterrupted hardware real-time waveform recording and analysis, with USB memory export support waveform recording and analysis
• Maximum 4 Mpts enhanced FFT, supporting the spectrum analyzer function of frequency setting, waterfall curve, detection setting, and marker
• 54 kinds of parameter measurement
• Multi-channel 7-digit hardware frequency counter, supporting adjustable frequency refresh time and effective digit
• 4-digit Digital Voltmeter (DVM): DC, AC RMS, and DC+AC RMS
• Multiple trigger types: edge, pulse width, ramp, runt pulse, over-amplitude pulse, delay, timeout, duration, setup & hold, Nth edge, and code pattern
• Protocol trigger and decoding functions. Included: RS, 232/UART, I2C, SPI. Optional: CAN, CAN-FD, LIN, FlexRay, AUDIO, MIL-STD-1553B, Manchester, SENT, ARINC429
• Zone triggering for capturing accidental signal and observing complicated signal
• Ultra Phosphor 3.0 super phosphor display effect, up to 256 grey display
• 10.1-inch 1280x800 HD capacitive multi-touch screen, supporting gesture control: click, slide, zoom, edit, and drag
• Multiple peripheral interfaces: USB 3.0 Host, USB 3.0 Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail, DVM), Gen Out, HDMI
• SCPI (Standard Command for Programmable Instrument)
• Built-in Webserver for accessing and controlling the instrument through a browser, supporting PC/Mobile phone device for cross-platform access to the instrument

The 9-in-1 "X-Factor"

Digital Oscilloscope

• Bandwidth: 350 MHz/500 MHz
• Maximum real-time sampling rate: 5 GSa/s
• Maximum memory depth: 500 Mpts
• 4 analog channels, 1 external trigger channel

MSO3000X DSO Screen

Logic Analyzer (Option)

• 16-channel logic analyzer can be used with purchase of a UT-M15 logic analyzer probe (option)
• Logic analyzer software already installed
• Maximum sampling rate: 1.25 GSa/s
• Maximum memory depth: 500 Mpts
• Minimum detectable pulse width 800ps
• Digital probe provides high 8-bit and low 8-bit signal input port, it simplifies the connection of DUT. When connecting to square pins, UT-M15 can be connected directly to 8x2 square pins 2.54 mm
• Logic analyzer probe UT-M15 has great electrical features, the input impedance is 101 Ω±1%, but the capacitive load is only 9.0 pF

UNI-T UT-M15 16ch Logic Analyzer Probe

Function/Arbitrary Waveform Generator (Option)

• 50 MHz equivalent performance dual channel output
• Sampling rate: 250 MSa/s
• Vertical resolution: 16-bit
• Built-in multiple standard waves: Sine, square, pulse, ramp, arbitrary, noise, and DC
• AM, FM, ASK, FSK, and sweep output

MSO3000X AWG

Spectrum Analyzer

• Standard enhanced FFT, up to 4 Mpts, 4 channels signal analysis
• Frequency range: 0 Hz to 1.25 GHz
• Waterfall curve
• 4 traces and 4 detections
• Mark type: Auto, manual, and threshold
• Marker point list

MSO3000X Spectrum Analyzer

Digital Voltmeter

• 4-digit voltmeter
• DC/ACRMS/AC+DCRMS
• Limit alarm

MSO3000X DVM

High-Precision Frequency Counter

• 7-digit hardware frequency counter
• Adjustable frequency counter refresh time and effective digit
• Totalizer

MSO3000X Frequency Counter

Bode Plot Analyzer

• Included with Function/Arbitrary Waveform Generator option
• Frequency response analysis
• Loop stability analysis
• Filter analysis
• Amplifier analysis

MSO3000X Bode

Protocol Analyzer

• 12 kinds of trigger protocol and decoding, including computer serial bus, embedded serial bus, automobile, aerospace, and audio
• Decoding can be operated in the pause and record modes
• Event list and search function

MSO3000X Protocol Analyzer

Power Analyzer (Option)

• Power quality
• Harmonic analysis
• Safety operation area*
• Switching loss*
• Ripple wave analysis
• Loop analysis

MSO3000X Power Analyzer

* Power analysis support is subject to the latest firmware on the official website.

Warranty & Support

All UNI-T MSO3000X Series oscilloscopes include a 3-year warranty covering parts and labor under normal use. Standard accessories (including probes and cables) are covered by a 1-year warranty. Register your MSO3000X for a free, 2-year warranty extension.
