UNI-T MSO3024HD | 200MHz High-Resolution Mixed Signal Oscilloscope

Overview

The UNI-T MSO3024HD High-Resolution Oscilloscope delivers accessible precision for engineers and technicians seeking reliable measurements in today's electronic systems. With a solid 200 MHz bandwidth, 2.5 GSa/s real-time sampling rate, and sophisticated 12-bit vertical resolution, this entry-level professional instrument provides 16 times greater vertical precision than conventional 8-bit oscilloscopes. The MSO3024HD features 4 analog channels and 16 digital channels with an impressive 500 Mpts storage depth, creating an affordable yet powerful solution for debugging embedded systems, educational applications, and general electronic design.

Equipped with UNI-T's innovative Ultra Phosphor 3.0 technology, the MSO3024HD achieves excellent waveform capture rates of up to 1,500,000 wfms/s with 256 levels of gray temperature colors. The responsive digital trigger system ensures reliable triggering with minimal jitter, while the user-friendly 10.1-inch capacitive touch screen with multi-gesture support makes operation intuitive for users of all experience levels. The comprehensive nine-in-one functionality provides exceptional value for educational institutions, small businesses, and engineers working with diverse electronic systems.

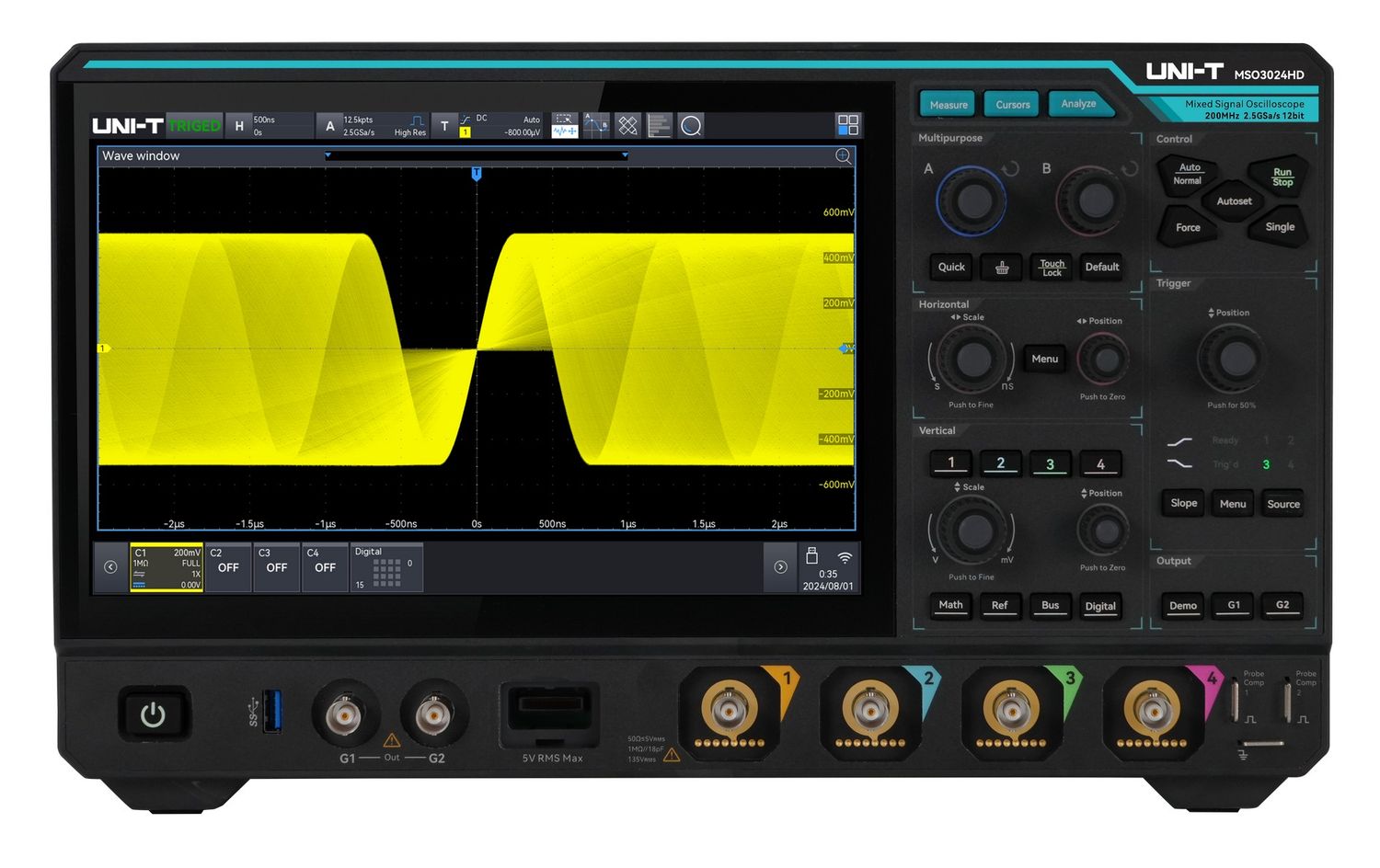

UNI-T MSO3024HD 200MHz High-Resolution Mixed Signal Oscilloscope

Key Features

• Precision 12-bit Architecture - ADC with 4096 quantization levels for detailed signal visualization
• Reliable Performance - 200 MHz bandwidth, 2.5 GSa/s sampling rate, and 500 Mpts memory depth
• Versatile Mixed-Signal Analysis - 4 analog channels with 16 digital channels for comprehensive debugging
• Ultra Phosphor 3.0 Technology - Fast waveform capture rate of 1,500,000 wfms/s for reliable anomaly detection
• Cost-Effective Multi-Instrument Platform - Nine instruments integrated into one affordable package
• User-Friendly Interface - 10.1-inch HD capacitive multi-touch screen with intuitive controls
• Flexible Triggering Options - Multiple trigger types including edge, pulse width, video, and zone triggering
• Comprehensive Measurements - 54 automatic parameter measurements with statistical analysis and visualization
• Essential Protocol Analysis - Support for common serial buses with optional protocol expansion
• Modern Connectivity - USB host/device, LAN (VXI11), HDMI, and Wi-Fi for flexible operation

Accessible 12-bit High-Resolution Technology

The MSO3024HD features advanced 12-bit ADC technology that delivers 4096 vertical quantization levels—16 times more than standard 8-bit oscilloscopes with just 256 levels—providing remarkable vertical resolution for detecting subtle signal variations. This high-resolution architecture can be further enhanced with the ERES (Enhanced Resolution) feature, which increases vertical resolution up to 16-bit for applications requiring maximum precision.

With an impressively low noise floor of only 70 μVrms at full bandwidth, the MSO3024HD delivers clean waveforms with minimal distortion. This ensures accurate measurement results for your everyday applications, making the MSO3024HD ideal for educational settings, general electronics debugging, and entry-level professional test applications where signal clarity and measurement confidence are essential.

12-bit high-resolution ADC sampling with ERES enhances resolution up to 16-bit, providing 4096 to 65536 quantization levels

Ultra Phosphor 3.0 Technology

The Ultra Phosphor 3.0 technology in the MSO3024HD enables impressive waveform capture rates of up to 1,500,000 waveforms per second in sequence mode. This excellent performance, combined with 256 levels of color temperature display, significantly enhances your ability to observe real signal behavior and identify occasional events that conventional oscilloscopes might miss.

The efficient 8-channel parallel graph mapping architecture with 20 Gbps processing capability ensures responsive capture of signal anomalies, making the MSO3024HD valuable for educational demonstrations, general troubleshooting, and development of moderately complex digital systems. This advanced visualization technology helps students and engineers understand signal behavior and identify timing relationships more intuitively than traditional oscilloscope displays.

Ultra Phosphor 3.0 technology with efficient signal processing for clear visualization of signal behavior

Value-Focused Nine-in-One Integration

The MSO3024HD combines nine essential instruments into one cost-effective platform, offering exceptional value for educational institutions, small businesses, and budget-conscious engineers. This practical integration enhances testing efficiency while minimizing equipment investment and conserving valuable workspace.

The integrated instruments include:

1. Digital Oscilloscope - High-resolution signal analysis with 200 MHz bandwidth
2. Logic Analyzer - 16 digital channels with 1.25 GSa/s sampling for digital system debugging
3. Function/Arbitrary Waveform Generator (optional) - 50 MHz dual-channel signal generation
4. Spectrum Analyzer - Enhanced FFT analysis with up to 4 Mpts resolution
5. Digital Voltmeter - 4-digit measurement with multiple modes
6. High-precision Frequency Counter - 7-digit hardware implementation
7. Protocol Analyzer - Serial bus decoding for common interfaces
8. Bode Plot Analyzer (optional) - Frequency response testing for educational demonstrations
9. Power Analyzer (optional) - Practical power measurements for everyday applications

Nine instruments integrated into one affordable platform, maximizing equipment value and minimizing bench space requirements

Essential Protocol Analysis

The MSO3024HD includes fundamental serial bus triggering and decoding capabilities to assist with debugging of common embedded systems. Standard protocol support includes everyday interfaces such as RS232/UART, I²C, SPI, and CAN, with optional support for additional protocols:

• CAN-FD - For modern automotive networks
• LIN - Supporting basic automotive body electronics
• FlexRay - For safety-critical vehicle systems
• Audio - Including common digital audio formats
• MIL-STD-1553B - For specialized aerospace applications
• Manchester - Supporting industrial encoding schemes
• SENT - For automotive sensor communications
• ARINC429 - Used in commercial avionics

The convenient event list display allows users to view decoded protocol data alongside physical waveforms, while the search function helps locate specific patterns within longer acquisitions. This makes the MSO3024HD an excellent learning tool for students studying communication protocols and a practical debugging instrument for everyday electronic systems.

Essential protocol analysis with clear waveform correlation and intuitive data presentation

Practical Power Analysis

The MSO3024HD offers practical power analysis capabilities suitable for educational demonstrations and everyday power electronics testing. With the optional power analysis package, users gain access to useful measurements including:

• Power quality assessment - Understanding basic power parameters
• Ripple analysis - Examining power supply output quality
• Harmonic examination - Visualizing frequency components
• Loop analysis - Basic control system testing
• Switching loss measurement - Evaluating power converter efficiency
• Safe operating area verification - Ensuring component reliability

Users can connect appropriate voltage and current probes to obtain clear visualization of power parameters. This integrated approach makes power analysis accessible to students, hobbyists, and engineers working with everyday power electronics, providing practical insights without the complexity and cost of specialized power analyzers.

Practical power analysis capabilities for educational and general electronic applications

User-Friendly Triggering and Signal Isolation

The MSO3024HD features an intuitive zone trigger function that simplifies capturing specific signal behaviors without complex trigger configuration. Using the touch interface or mouse gestures, users can simply draw rectangular zones on the screen to define "must intersect" or "must not intersect" regions, with the oscilloscope triggering only when signals meet these visual criteria.

This approachable method makes advanced triggering accessible to users of all experience levels, from students learning oscilloscope operation to engineers working on everyday troubleshooting tasks. For educational environments and general electronics work, this visual triggering capability can significantly reduce the learning curve while helping focus on the signals that matter most.

Zone triggering enables intuitive signal isolation without complex trigger configuration

Practical Measurement Toolset

The MSO3024HD offers 54 types of automated parameter measurements with the capability to display up to 27 measurement parameters simultaneously. Each statistical summary page presents 9 parameters that can be visualized as histograms and trend charts for improved understanding.

The parameter snapshot feature displays 39 measurement items for single-channel analysis, with results continuously updated during acquisition. These comprehensive measurement capabilities make the MSO3024HD an excellent teaching tool for electronics courses, while providing the practical metrics needed for everyday electronic design and troubleshooting tasks. The statistical functions help users understand signal stability and variation over time, adding context to simple parameter readings.

Comprehensive measurement capabilities with statistical analysis and visual presentation

Accessible Spectrum Analysis

The built-in spectrum analyzer function features enhanced FFT capabilities with up to 4 Mpts resolution for detailed signal analysis, covering frequencies from DC to 2.5 GHz. The analyzer includes useful features such as waterfall displays for visualizing frequency changes over time, multiple traces with different detection methods, and practical marker functions for frequency measurement.

This accessible frequency domain analysis allows students and engineers to understand signal spectral content, identify interference sources, and evaluate filter performance without needing a separate spectrum analyzer. For educational demonstrations, general troubleshooting, and everyday electronic design, these capabilities provide valuable insights into system behavior at an affordable price point.

Practical spectrum analysis with FFT capability and straightforward marker functions

Technical Specifications

Parameter	Specification
Analog Bandwidth	200 MHz
Rise Time (10-90%, typical)	≤1.80 ns
Channels	4 analog + 16 digital + 2 generator outputs
Maximum Sampling Rate	2.5 GSa/s (analog), 1.25 GSa/s (digital)
Vertical Resolution	12-bit (up to 16-bit with ERES)
Maximum Memory Depth	500 Mpts (analog), 250 Mpts (digital)
Waveform Capture Rate	500,000 wfms/s (normal), 1,500,000 wfms/s (sequence)
Input Impedance	1 MΩ ±2% ∥ 18 pF ±3 pF or 50 Ω ±1.5%
Vertical Scale Range	500 μV/div to 10 V/div (1 MΩ), 500 μV/div to 1 V/div (50 Ω)
Time Base Range	2 ns/div to 1 ks/div
Display	10.1-inch 1280×800 HD capacitive multi-touch screen
Dimensions (W×H×D)	364 mm × 209 mm × 106 mm
Weight	3.83 kg

MSO3000HD Series Comparison Table

Feature	MSO3054HD	MSO3034HD	MSO3024HD
Analog Bandwidth	500 MHz	350 MHz	200 MHz
Calculated Rise Time	≤0.80 ns	≤1.00 ns	≤1.80 ns
Maximum Sample Rate	2.5 GSa/s	2.5 GSa/s	2.5 GSa/s
Time Base Range	500 ps/div to 1 ks/div	1 ns/div to 1 ks/div	2 ns/div to 1 ks/div
Included Probes	UT-P07A (500 MHz)	UT-P08A (350 MHz)	UT-P05 (200 MHz)

MSO3000HD Series Options and Upgrades

Option	Description	Benefit to User
MSO3000HD-BW2MT5M	200MHz to 500MHz Bandwidth Upgrade	Maximum bandwidth increase to support higher-frequency applications as needs evolve
MSO3000HD-BW2MT3M5	200MHz to 350MHz Bandwidth Upgrade	Cost-effective performance boost for moderate bandwidth requirements
MSO3000HD-BND	All Serial Bus Triggering and Decoding Options	Comprehensive protocol analysis solution at the most economical price point
MSO3000HD-AUTO	Automotive Serial Bus Package (CAN, CAN-FD, LIN, FlexRay, SENT)	Complete automotive protocol solution for educational and entry-level automotive work
MSO3000HD-LIN	Automotive LIN Bus Protocol Package	Affordable automotive bus analysis for body electronics applications
MSO3000HD-AWG	Dual-channel Function/Arbitrary Waveform Generator (Includes Bode Plot)	Cost-effective signal generation capability with educational applications
MSO3000HD-PWR	Power Analysis Package	Accessible power measurement tools for everyday power electronics tasks
UT-M15	16-channel Logic Analyzer Probe	Enables digital channel functionality for complete mixed-signal analysis

Application Areas

Educational and Training Environments

The MSO3024HD is perfectly suited for educational laboratories and training facilities, offering an ideal balance of functionality and affordability. The 200 MHz bandwidth is more than adequate for demonstrating fundamental electronic principles, while the 12-bit resolution allows students to visualize signal details that would be lost on basic oscilloscopes. The intuitive touch interface reduces the learning curve for new users, allowing instructors to focus on teaching electronic concepts rather than instrument operation.

The nine-in-one functionality makes the MSO3024HD an exceptional value for educational budgets, providing multiple test instruments at a fraction of the cost of separate devices. Students can learn oscilloscope fundamentals, digital troubleshooting with the logic analyzer, protocol analysis for embedded systems courses, and even power electronics with the optional power analysis package. For academic institutions seeking maximum educational value from their equipment investment, the MSO3024HD delivers comprehensive capabilities at an accessible price point.

General Electronic Design and Testing

For small businesses, independent designers, and electronics hobbyists, the MSO3024HD provides professional-grade measurement capabilities without the premium price of higher-bandwidth models. The 200 MHz bandwidth adequately serves most general electronics applications, including microcontroller-based designs, consumer electronics, IoT devices, and basic communication systems. The 12-bit resolution ensures accurate measurements of analog signals, while the deep memory allows capture of extended sequences for thorough analysis.

The comprehensive protocol analysis capabilities support debugging of common serial buses used in everyday embedded designs, while the mixed-signal functionality allows simultaneous monitoring of analog and digital signals. For small companies developing moderately complex electronic products, the MSO3024HD offers the essential measurement capabilities needed for successful design verification at a cost that fits limited R&D budgets. The bandwidth upgrade options also provide a future growth path as design requirements evolve.

Field Service and Maintenance

Field service technicians and maintenance personnel will appreciate the MSO3024HD's combination of comprehensive functionality and reasonable cost. The 200 MHz bandwidth is sufficient for troubleshooting most installed electronic systems, while the high-resolution display and 12-bit ADC provide the signal clarity needed to identify subtle issues in aging equipment. The intuitive touch interface simplifies operation in challenging field environments, reducing setup time and allowing technicians to focus on problem-solving.

The portable form factor and versatile connectivity options make the MSO3024HD suitable for mobile service applications, while the nine-in-one functionality eliminates the need to carry multiple test instruments to service calls. For maintenance departments supporting diverse electronic systems, the MSO3024HD's breadth of capabilities—from basic signal measurement to protocol analysis and power quality assessment—makes it an economical yet powerful addition to the service toolkit.

Package Contents

• UNI-T MSO3024HD High-Resolution Oscilloscope
• Power cord
• 4× UT-P05 passive probes (200 MHz)
• USB 3.0 cable (UT-D30)
• BNC-BNC direct-through line (UT-L45)
• BNC-to-alligator clip cable (UT-L02A)
• Quick start guide
• Calibration certificate

Frequently Asked Questions

Is the 200 MHz bandwidth of the MSO3024HD sufficient for my everyday electronic testing needs?

The 200 MHz bandwidth of the MSO3024HD is well-suited for a wide range of everyday electronic applications. This bandwidth is more than adequate for testing and debugging microcontroller-based systems, IoT devices, consumer electronics, automotive sensors, and most industrial control equipment. It can easily handle common serial buses like I²C (up to 5 MHz), SPI (up to 50 MHz), and CAN (up to 1 MHz). For digital signals, the 200 MHz bandwidth can accurately capture edge transitions with rise times as fast as 1.8 ns, which covers most general-purpose digital systems. While it may not be sufficient for high-speed digital interfaces like USB 3.0 or DDR memory, the MSO3024HD provides excellent signal fidelity for the vast majority of everyday electronic design and troubleshooting tasks. The bandwidth upgrade options also allow you to expand capabilities later if your requirements evolve.

What practical benefits does the 12-bit resolution offer compared to standard 8-bit oscilloscopes?

The 12-bit resolution in the MSO3024HD provides several tangible benefits for everyday electronic work. First, with 4096 vertical levels (compared to just 256 in 8-bit oscilloscopes), you can see much finer signal details even when using the full vertical range of the oscilloscope. This is particularly valuable when measuring small signal components riding on larger voltages, such as ripple on power supply outputs or small sensor variations. Second, the higher resolution allows you to zoom in on portions of waveforms while maintaining clear signal definition, unlike 8-bit scopes that become "blocky" when magnified. Third, measurement accuracy improves significantly, especially for automated parameters like amplitude and timing measurements. For educational settings, this higher resolution helps students see real-world signal behaviors more clearly, and for general troubleshooting, it helps identify subtle signal anomalies that might go unnoticed on lower-resolution instruments.

How does the MSO3024HD benefit educational environments specifically?

The MSO3024HD offers several specific advantages for educational settings. The combination of 12-bit resolution and intuitive touch interface makes it easier for students to visualize and understand electronic concepts compared to older, low-resolution oscilloscopes. The nine-in-one functionality provides access to multiple instruments (oscilloscope, logic analyzer, spectrum analyzer, etc.) at a fraction of the cost of separate devices, maximizing educational value per budget dollar. The 200 MHz bandwidth is more than sufficient for demonstrating most electronic principles taught in undergraduate and technical programs. The mixed-signal capabilities allow for comprehensive labs covering both analog and digital concepts, while the protocol analysis features support modern embedded systems curricula. Additionally, the zone triggering and measurement tools simplify operation for beginners while still offering advanced capabilities for upper-level coursework. The optional function generator further extends classroom applications without requiring additional equipment purchases.

Can I use the MSO3024HD effectively for troubleshooting various electronic systems?

The MSO3024HD is exceptionally well-suited for general electronic troubleshooting across diverse applications. Its 200 MHz bandwidth covers most everyday electronic systems, while the 12-bit resolution helps identify subtle signal problems that might be missed with lower-resolution instruments. The deep memory allows you to capture extended signal sequences at high sample rates, which is invaluable for finding intermittent issues. The mixed-signal capability lets you monitor analog signals and digital control lines simultaneously, providing complete system visibility. For field service applications, the zone triggering feature simplifies capturing elusive events without complex trigger setup. The protocol analysis capabilities help diagnose communication problems in embedded systems, while the optional power analysis package supports troubleshooting power-related issues. Whether you're servicing industrial equipment, repairing consumer electronics, or maintaining communication systems, the MSO3024HD provides the essential tools needed for efficient problem diagnosis in a single, portable instrument.

What upgrade paths are available if my bandwidth needs increase in the future?

The MSO3024HD offers flexible upgrade paths to protect your initial investment as your measurement needs evolve. UNI-T provides two bandwidth upgrade options: the MSO3000HD-BW2MT3M5 upgrade increases bandwidth from 200 MHz to 350 MHz, while the MSO3000HD-BW2MT5M upgrade takes you all the way to 500 MHz. These upgrades can be purchased and installed at any time without shipping your oscilloscope back to the factory—simply download the license file to a USB drive and install it through the oscilloscope's menu system. Beyond bandwidth, you can also add functionality through software options like the power analysis package (MSO3000HD-PWR), function generator (MSO3000HD-AWG), or additional protocol decoders. This modular approach allows you to start with an affordable entry-level configuration and add capabilities as your projects become more demanding, ensuring your test equipment grows with your needs without requiring complete replacement.

How does the nine-in-one functionality improve my workflow and save costs?

The MSO3024HD's nine-in-one functionality delivers substantial workflow and cost benefits for various users. For educational institutions, it dramatically reduces equipment costs while providing students access to multiple instrument types within a single platform. Small businesses and independent designers benefit from significant space savings and reduced capital investment compared to purchasing separate specialized instruments. From a workflow perspective, having multiple functions in one device eliminates the need to transfer signals between instruments, preserving signal integrity and reducing setup complexity. The consistent user interface across all functions minimizes the learning curve when switching between different measurement types. Time correlation between different measurement domains (time, frequency, protocol) provides more comprehensive system insights than isolated instruments could offer. For budget-conscious users in education, small business, and general electronics, this integrated approach maximizes measurement capabilities while minimizing equipment costs—a compelling value proposition that makes advanced test capabilities more accessible.
