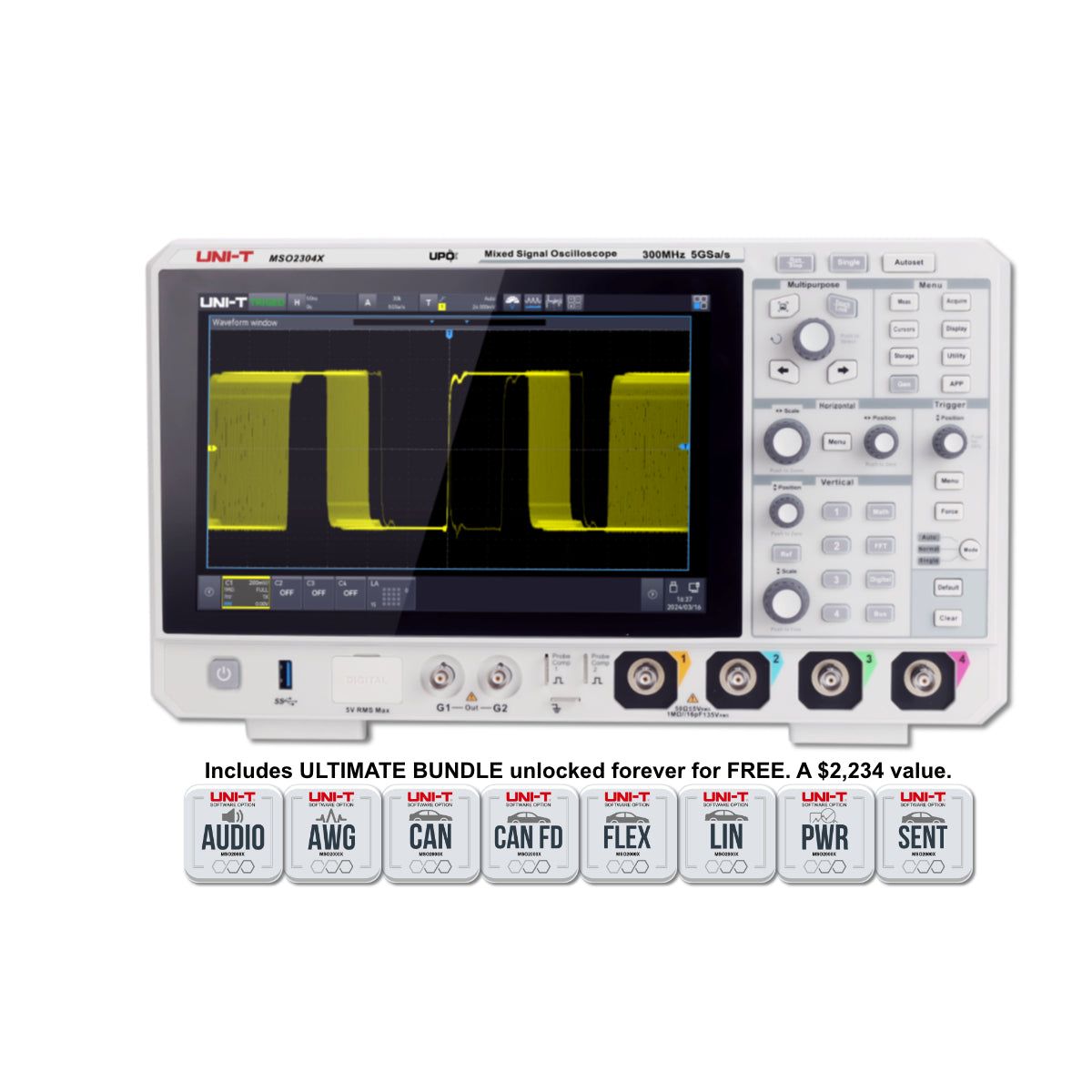

MSO2304X 300 MHz 4Ch Mixed Signal Oscilloscope
$2 199.00
300 MHz 4-channel mixed signal oscilloscope with 5 GSa/s sample rate, 100 Mpts memory depth. Nine-in-one instrument suited for production, field service, and multi-domain troubleshooting.
Bandwidth Upgrade
Decode Bundle
Add-on Options
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
MSO2304X 300 MHz 4Ch Mixed Signal Oscilloscope
Product Details
UPC: 6935750522066
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://instruments.uni-trend.com/download?cate=97
Equipment Type: Digital Oscilloscopes
The MSO2304X is a 300 MHz, 4-channel mixed signal oscilloscope of the MSO2000X line. It provides a 5 GSa/s real-time sample rate (interleave), 100 Mpts of memory depth, and Ultra Phosphor 3.0 waveform mapping up to 2,000,000 wfms/s in Sequential Mode on a 10.1-inch capacitive multi-touch display. It targets four-channel mixed-signal R&D validation and power-electronics characterization.
The 8-bit front end extends to 12 effective bits with ERES, and a calculated rise time of ≤1.17 ns supports general mixed-signal and signal-integrity work. The instrument integrates nine bench functions: oscilloscope, optional 16-channel logic analyzer, optional arbitrary waveform generator, 2.5 GHz spectrum analyzer, 4-digit digital voltmeter, 7-digit hardware frequency counter, protocol analyzer, Bode plot, and optional power analyzer. RS-232/UART, I²C, and SPI decoding is standard; CAN, CAN-FD, LIN, FlexRay, SENT, and Audio are available as software licenses that do not expire. An optional 50 MHz dual-channel, 16-bit, 250 MSa/s arbitrary waveform generator includes the Bode plot analyzer. Remote control is available over USB 3.0, LAN (VXI-11), SCPI, and a built-in web server, and firmware updates are free.
With 56 automated measurements, zone triggering, and a 1280×800 multi-touch display, it suits embedded-systems teams consolidating a basic scope, separate generator, spectrum analyzer, and protocol decoder into a single footprint.
Key Features
- Bandwidth=300MHz
- Channels=4Ch+16D (opt)
- Sample Rate=5GSa/s
- Memory Depth=100Mpts
- Vertical Resolution=8 bits
- Logic Probes=Optional
Specifications
| Specification | MSO2304X |
| Analog Bandwidth | 300 MHz |
| Calculated Rise Time (10% to 90%, typical) | ≤1.17 ns |
| Analog Channels | 4 |
| Digital Channels | 16 (with optional UT-M15 probe pod) |
| Maximum Real-Time Sample Rate | 5 GSa/s (interleave) / 2.5 GSa/s (non-interleave) |
| Maximum Digital Sample Rate | 1.25 GSa/s |
| Maximum Memory Depth | 100 Mpts |
| Vertical Resolution | 8-bit native; up to 12-bit via ERES |
| Standard Capture Rate | 500,000 wfms/s |
| Sequential Mode Capture Rate | 2,000,000 wfms/s |
| Hardware Real-Time Recording | 125,000 frames |
| Minimum Detectable Pulse Width (digital) | 800 ps |
| Trigger Types | Edge, pulse width, ramp, runt pulse, over-amplitude pulse, delay, timeout, duration, setup & hold, Nth edge, code pattern, video, zone |
| Protocol Decoding (Standard) | RS-232/UART, I²C, SPI |
| Protocol Decoding (Optional) | CAN, CAN-FD, LIN, FlexRay, SENT, Audio (I²S/LJ/RJ/TDM) |
| Spectrum Analyzer (FFT) | 0 Hz to 2.5 GHz, up to 4 Mpts FFT, 4 traces, 4 detections, waterfall |
| AWG (Optional MSO2000X-AWG) | 50 MHz, 2 channels, 16-bit, 250 MSa/s; includes Bode plot analyzer |
| Power Analysis (Optional MSO2000X-PWR) | Power quality, harmonic analysis, surge current, ripple analysis, loop analysis |
| Automated Measurements | 56 (analog channels); up to 27 displayed simultaneously |
| Digital Voltmeter | 4-digit (DC, AC RMS, DC+AC RMS) |
| Frequency Counter | 7-digit hardware counter |
| Display | 10.1-inch 1280×800 capacitive multi-touch, 24-bit color |
| Interfaces | USB 3.0 Host (3) / USB 3.0 Device (1) / LAN (VXI-11) / HDMI / Gen Out (2) / 10 MHz In/Out / AUX Out |
| Remote Control | SCPI; built-in WebServer (PC and mobile) |
| Power Source | 100–240 VAC, 50/60 Hz; 120 W max |
| Certifications | CE |
