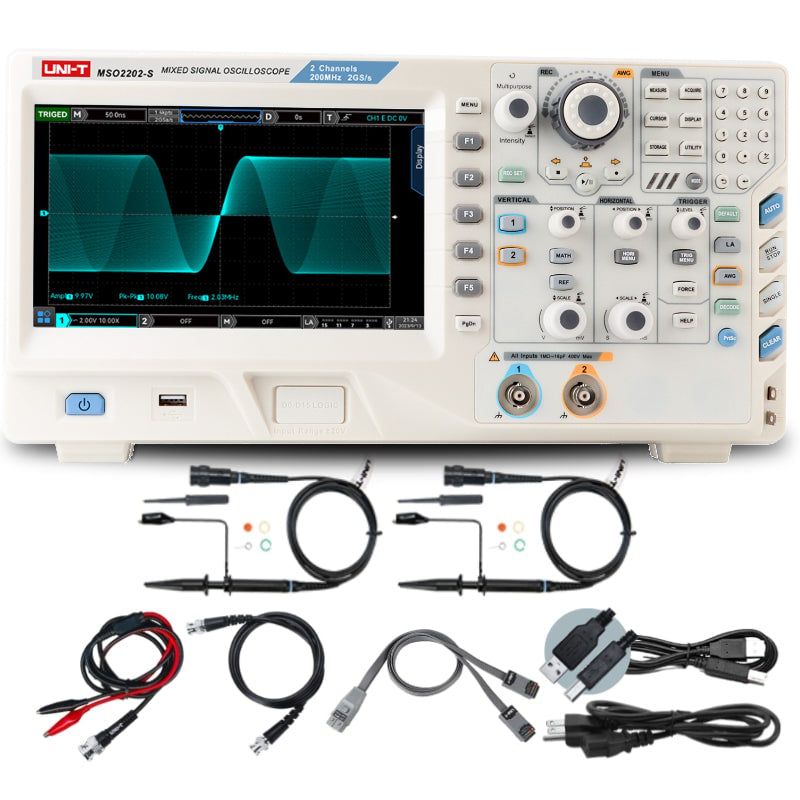

MSO2202-S 200 MHz 2+16Ch Mixed Signal Oscilloscope with Signal Generator
$1 499.00
200 MHz 2+16 channel mixed signal oscilloscope with 2 GSa/s sample rate, 56 Mpts memory depth, and a built-in 50 MHz arbitrary waveform generator. Suited for production, field service, and automotive engineers.
Decode Bundle
Add-on Options
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
MSO2202-S 200 MHz 2+16Ch Mixed Signal Oscilloscope with Signal Generator
Product Details
UPC: 6935750522134
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://instruments.uni-trend.com/download?cate=74
Equipment Type: Digital Oscilloscopes
The MSO2202-S is a 200 MHz two-channel mixed signal oscilloscope with an integrated dual-channel arbitrary waveform generator. It provides a 2 GSa/s real-time sample rate, 56 Mpts of acquisition memory, and Ultra Phosphor 2.0 waveform display on a 7-inch 800×480 TFT LCD. The calculated rise time is ≤ 1.75 ns.
The 8-bit front end includes ERES processing, 30 automated measurements, and serial-bus trigger and decode for RS-232/UART, I²C, and SPI. The built-in AWG outputs sine, square, ramp, pulse, noise, DC, and arbitrary waveforms on two independent channels. An optional 16-channel logic analyzer pod extends the channel set to 2+16. Remote control is available via USB-Device and LAN with SCPI and web-browser access.
It suits 200 MHz embedded debug benches that need oscilloscope, signal generation, and protocol decode together in a compact two-channel instrument.
Key Features
- Bandwidth=200MHz
- Channels=2Ch+16D
- Sample Rate=2GSa/s
- Memory Depth=56Mpts
- Vertical Resolution=8 bits
- Logic Probes=Yes
Specifications
| Bandwidth | 200 MHz |
| Channels | 2Ch+16D |
| Sample Rate | 2GSa/s |
| Memory Depth | 56Mpts |
| Vertical Resolution | 8 bits |
| Vertical Scale 1M | 500µV/div to 20 V/div |
| Capture Rate | 200,000 wfms/s |
| Refresh Rate | 1,000,000 wfms/s |
| Frequency Counter | 7-bit |
| Auto Measurements | 36 |
| Logic Probes | Included |
| Optional Bus Protocols | RS232, UART, I2C, SPI, CAN, CAN-FD, LIN, FlexRay |
| Protocol Analysis Count | 7 |
| Signal Generator | Included |
| AWG Channels | 2 |
| AWG Frequency | 50 MHz |
| Waveforms | Sine, Square, Ramp, Pulse, Noise, DC, Arbitrary |
| Modulation Types | AM, FM |
| Arb Memory Depth | 512Kpts |
| Square Pulse Frequency | 15 MHz |
| Display Type | TFT LCD |
| Display Size | 8in |
| Touch Screen | Yes |
| Interface | LAN, USB-Device, VGA, EXT, AUX, AWG |
