MSO2104X 100MHz 4Ch Mixed Signal Oscilloscope - FREE ULTIMATE Bundle ends 03/31/26
$0.00
FREE ULTIMATE BUNDLE SALE!!! Through 03/31/2026 get our Ultimate Bundle option ($2,234) for FREE with the purchase of the MSO2104X. Give your test bench the X-Factor. This 100MHz, 9-in-one instrument deserves to be the centerpiece of your test rig. Start off with a high-sample rate, deep memory, and an easy-to-use touchscreen. Out of the box the MSO2000X operates as a Digital Phosphor Oscilloscope, Spectrum Analzyer, Digital Voltmeter, High-Precision Frequency Counter, and Protocol Analyzer. Affordably extend it to add a 16Ch Logic Analyzer, 2Ch 50MHz Waveform Generator, Bode Plot Analyzer, and Power Analyzer. Combine all of this with the piece of mind of up to 5 years worry free use with our no-charge warranty extension. All with up to 5 years warranty.
In stock
Save this product for later
Product Details
UPC: 6935750521441
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://instruments.uni-trend.com/download?cate=97
Equipment Type: Digital Oscilloscopes

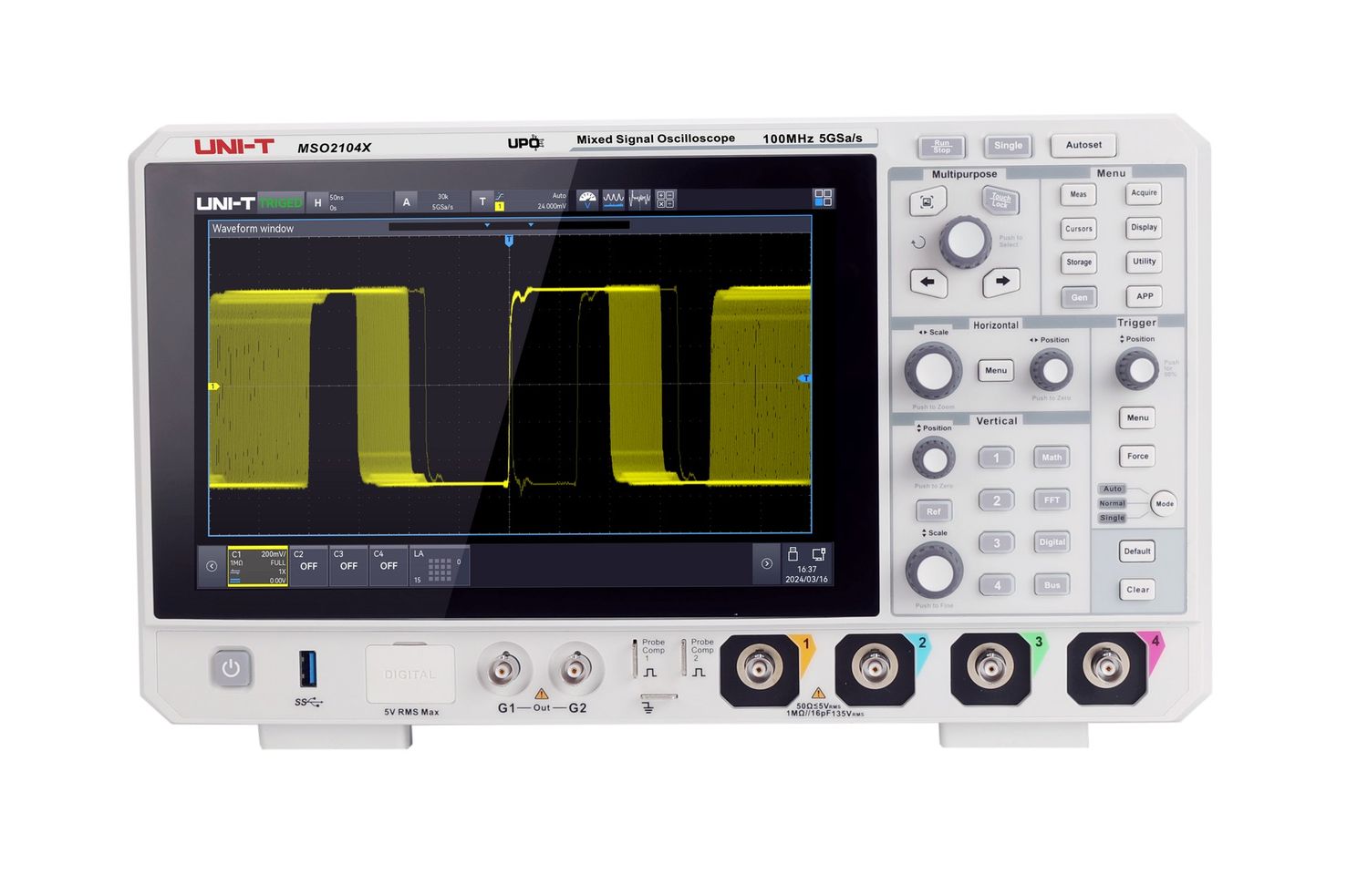

MSO2000X series integrates 9 instrument functions, which includes Digital Oscilloscope, Logic Analyzer, Function/Arbitrary Waveform Generator, Spectrum Analyzer, Digital Voltmeter, High-Precision Frequency Counter, Protocol Analyzer, Bode plot Analyzer and Power Analyzer. This oscilloscope offers a cost-effective solution for users.
- Bandwidth: 100MHz (also available: MSO2204X: 200MHz, and MSO2304X: 300MHz)
- Vertical Resolution: 8-bit, 12-bit ERES
- 4 Analog Ch/16 Digital Ch, Logic Analyzer SW included (probes optional)
- Max Sample Rate: 5GSa/s per channel
- Memory Depth: 100Mpts per channel
- Max Capture Rate: 500,000 wfms/s per channel (Sequence mode: 2,000,000 wfms/s)
- Arb Waveform Generator: Dual Channel 50MHz option
- 10.1-Inch UltraPhosphor 3 Touchscreen Display
- 5-Year Warranty
Features and Benefits Summary
- Analog channel bandwidth: 100 MHz/200 MHz/300 MHz
- Real-time sampling rate of the analog channel is up to 5 GSa/s. The maximum sampling rate of the digital channel is 1.25 GSa/s
- 4 analog channels, 16 digital channels. Maximum memory depth: 100 Mpts
- The maximum waveform capture rate is 500,000 wfms/s (sequence mode: 2,000,000 wfms/s)
- 9 instrument functions: Digital Oscilloscope, Logic Analyzer (requires UT-M15), Function/Arbitrary Waveform Generator (option), Spectrum Analyzer, Digital Voltmeter, Frequency Counter, Protocol Analyzer, Bode Plot Analyzer and Power Analyzer (option)
- Built-in dual-channel 50MHz function/arbitrary waveform generator. Supports loading on-screen oscilloscope data for real-time arbitrary waveform output. Additionally, it includes multiple built-in arbitrary waveforms, enhancing its versatility and functionality.
- Bode plot loop test analysis to analyze the system stability
- Parameter measurement adds histogram and line graph display
- Up to 200,000 frames of uninterrupted hardware real-time waveform recording and analysis, with USB memory export support waveform recording and analysis
- Maximum 4 Mpts enhanced FFT, supporting the spectrum analyzer function of frequency setting, waterfall curve, detection setting, and marker
- 54 kinds of parameter measurement
- Multi-channel 7-digit hardware frequency counter, supporting adjustable frequency refresh time and effective digit
- 4-digit Digital Voltmeter (DVM): DC, AC RMS, and DC+AC RMS
- Multiple trigger types: edge, pulse width, ramp, runt pulse, over-amplitude pulse, delay, timeout, duration, setup & hold, Nth edge, and code pattern
- Protocol trigger and decoding functions. Included: RS232/UART, I2C, SPI. Optional: CAN, CAN-FD, LIN, FlexRay, AUDIO, SENT
- Zone triggering for capturing accidental signal and observing complicated signal
- Ultra Phosphor 3.0 super phosphor display effect, up to 256 grey display
- 10.1-inch 1280x800 HD capacitive multi-touch screen, supporting gesture control: click, slide, zoom, edit, and drag
- Multiple peripheral interfaces: USB 3.0 Host, USB 3.0 Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail, DVM), Gen Out, HDMI
- SCPI (Standard Command for Programmable Instrument)
- Built-in Webserver for accessing and controlling the instrument through a browser, supporting PC/Mobile phone device for cross-platform access to the instrument
The 9-in-1 "X-Factor"
Digital Oscilloscope
- Bandwidth: 100 MHz/200 MHz/300 MHz
- Maximum real-time sampling rate: 5GSa/s
- Maximum memory depth: 100 Mpts
- 4 analog channels, 1 external trigger channel
Logic Analyzer (Option)
- 16-channel logic analyzer can be used with purchase of a UT-M15 logic analyzer probe (option)
- Logic analyzer software already installed
- Maximum sampling rate: 1.25 GSa/s
- Maximum memory depth: 100 Mpts
- Minimum detectable pulse width 800ps
- Digital probe provides high 8-bit and low 8-bit signal input port, it simplifies the connection of DUT. When connecting to square pins, UT-M15 can be connected directly to 8x2 square pins 2.54 mm
- Logic analyzer probe UT-M15 has great electrical features, the input impedance is 101 Ω±1%, but the capacitive load is only 9.0 pF
Function/Arbitrary Waveform Generator (Option)
- 50 MHz equivalent performance dual channel output
- Sampling rate: 250 MSa/s
- Vertical resolution: 16-bit
- Built-in multiple standard waves: Sine, square, pulse, ramp, arbitrary, noise, and DC
- AM, FM, ASK, FSK, and sweep output
Spectrum Analyzer
- Standard enhanced FFT, up to 4 Mpts, 4 channels signal analysis
- Frequency range: 0 Hz to 1.25 GHz
- Waterfall curve
- 4 traces and 4 detections
- Mark type: Auto, manual, and threshold
- Marker point list
Digital Voltmeter
- 4-digit voltmeter
- DC/ACRMS/AC+DCRMS
- Limit alarm
High-Precision Frequency Counter
- 7-digit hardware frequency counter
- Adjustable frequency counter refresh time and effective digit
- Totalizer
Bode Plot Analyzer
- Included with Function/Arbitrary Waveform Generator option
- Frequency response analysis
- Loop stability analysis
- Filter analysis
- Amplifier analysis
Protocol Analyzer
- 9 kinds of trigger protocol and decoding, including computer serial bus, embedded serial bus, automobile, aerospace, and audio
- Decoding can be operated in the pause and record modes
- Event list and search function
Power Analyzer (Option)
- Power quality
- Harmonic analysis
- Safety operation area*
- Ripple wave analysis
- Loop analysis
* Power analysis support is subject to the latest firmware on the official website.
Warranty & Support
All UNI-T MSO2000X Series oscilloscopes include a 3-year warranty covering parts and labor under normal use. Standard accessories (including probes and cables) are covered by a 1-year warranty. Register your MSO2000X for a free, 2-year warranty extension.
