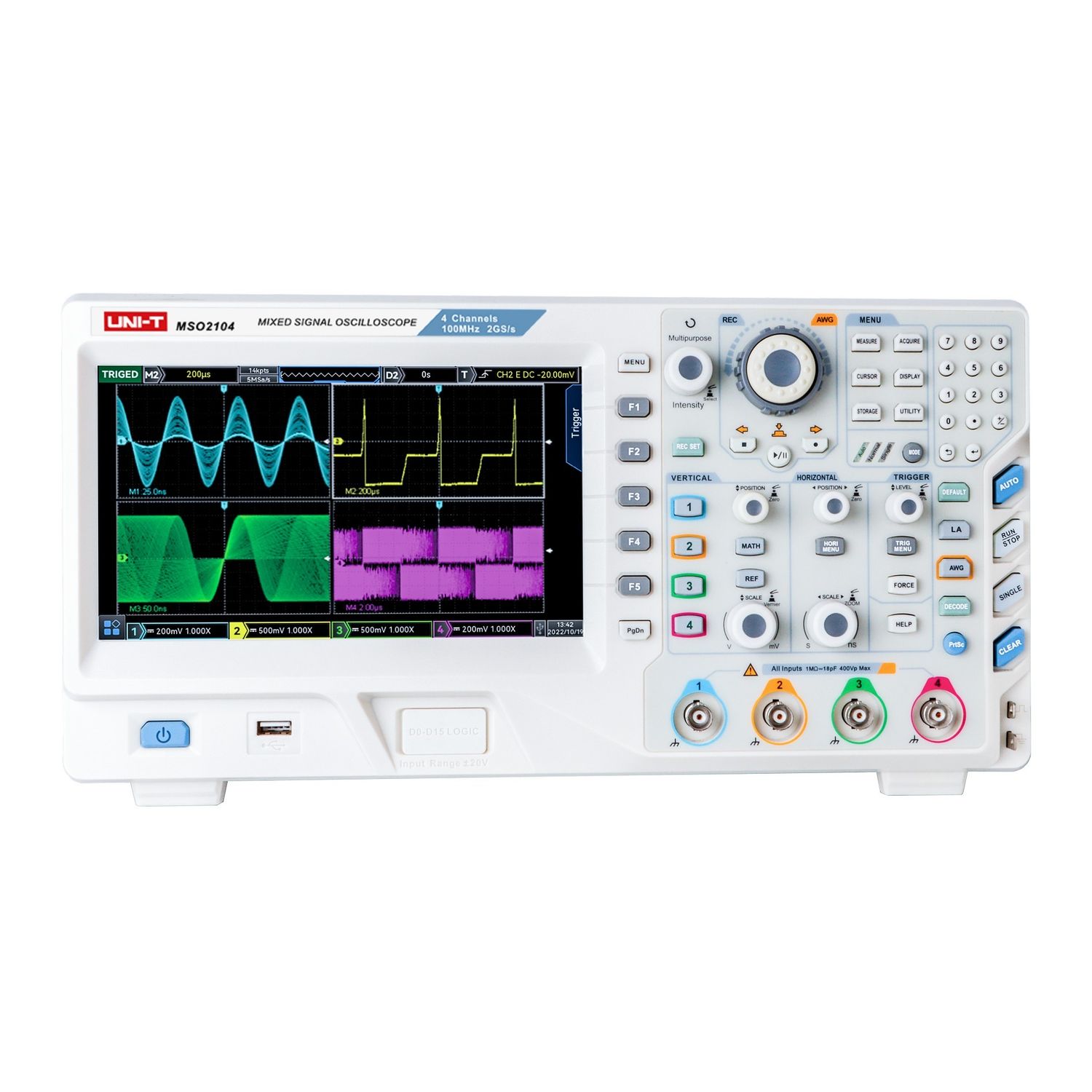

Unleash the Power of Precision with the UNI-T MSO2104 Mixed Signal Oscilloscope (MSO)

MSO2104 Oscilloscope Full memory hardware decoding

Experience the pinnacle of measurement and analysis with the UNI-T MSO2104 Mixed Signal Oscilloscope (MSO). Built on UNI-T's original Ultra Phosphor technology, this multifunctional, high-performance oscilloscope combines ease of use with exceptional technical prowess and an array of functional features. Whether you're involved in communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, on-site maintenance, R&D, or education, the MSO2104 is your go-to tool.

UNI-T MSO2104 Mixed Signal Oscilloscope Key Specifications:

• BANDWIDTH: 100MHz
• ANALOG CHANNELS: 4
• DIGITAL CHANNELS: 16 (UT-M15 Logic probe included)
• REAL-TIME SAMPLE RATE: 2GSa/s
• MAX. MEMORY DEPTH: 56Mpts
• WAVEFORM CAPTURE RATE: 1,000,000wfms/s


MSO2104 Oscilloscope 4M pts enhanced FFT

• DISPLAY: 8in Multi-point Capacitive Touchscreen

Versatile Performance: Seamlessly tackle design, debugging, and testing tasks in various fields, making your measurement work faster and more efficiently.

Enhanced Channel Capacity: With four analog channels and 16 digital channels (including the UT-M15 Logic probe), you have the flexibility to measure multiple signals simultaneously. This is invaluable for debugging circuits, monitoring serial protocols, and analyzing video signals.

Built-in AWG: The MSO2104 features a dual-channel function arbitrary waveform generator that outputs sine waves, square waves, ramp waves, pulse waves, arbitrary waves, noise, and DC signals, with a maximum sine wave frequency output of 50MHz.

Bode Plot Analysis: Characterize the frequency response of electronic designs effortlessly, whether it's passive filters, amplifier circuits, or switch-mode power supplies.

Advanced FFT Analysis: Utilize FFT (Fast Fourier Transform) mathematical operations to convert time-domain signals into frequency-domain signals. Analyze harmonic content, distortion in measurement systems, noise in DC power supplies, and perform vibration analysis.

Rich Trigger Functions: Precisely capture and display signals of interest with advanced trigger options like edge, pulse width, video, and more.

MSO2104 Oscilloscope LA Logic Analyzer

Logic Analysis Probe UT-M15: Simplify digital signal analysis with the UT-M15, which includes two 8-channel probes for easy device under test connection. It boasts excellent electrical characteristics with an input impedance of 101kΩ and a capacitive load of only 9.0pF.

Robust Logic Analyzer: Ideal for parallel bus analysis, protocol decoding, and timing measurements. Features such as Rank Selection, Data Bus Setting, Group Setting, and Event Lists enhance your analysis capabilities.

Full Memory Hardware Decoding: Experience lightning-fast decoding thanks to deep storage of 56Mpts, enabling real-time decoding and efficient problem diagnosis.

Enhanced Memory Depth: The oscilloscope maintains a high sampling rate across a wider time base range, improving the capture rate of abnormal waveforms.

Channel Split Screen: Utilize Multi-Scopes technology for a user-friendly waveform display. Customize each channel with different frequency, amplitude, and waveform settings.

256-Level Grayscale Display: Observe waveform details and occasional abnormalities with ease, thanks to Ultra Phosphor display technology.

MSO2104 Oscilloscope 256-level grayscale display

Ultra High Capture Rate: Innovative digital signal parallel processing technology allows for an ultra-high capture rate of 200,000wfms/s in normal sampling and 1,000,000wfms/s in Fast Acquire mode, ensuring efficient capture of occasional signals.

XY Mode: Quickly measure phase differences between two signals with XY mode cursor measurement.

Rich Measurement Functions: Enjoy up to 36 automatic parameter measurements, significantly enhancing measurement efficiency and accuracy.

User-Friendly Interface: The 8-inch touch screen offers a range of gesture operations, including click, slide, zoom, edit, and drag. This, coupled with traditional button and knob operation options, ensures a seamless and optimized interactive experience.

Elevate your electrical engineering work with the UNI-T MSO2104 Mixed Signal Oscilloscope (MSO). Get yours today to embark on a journey of precision and efficiency like never before!
