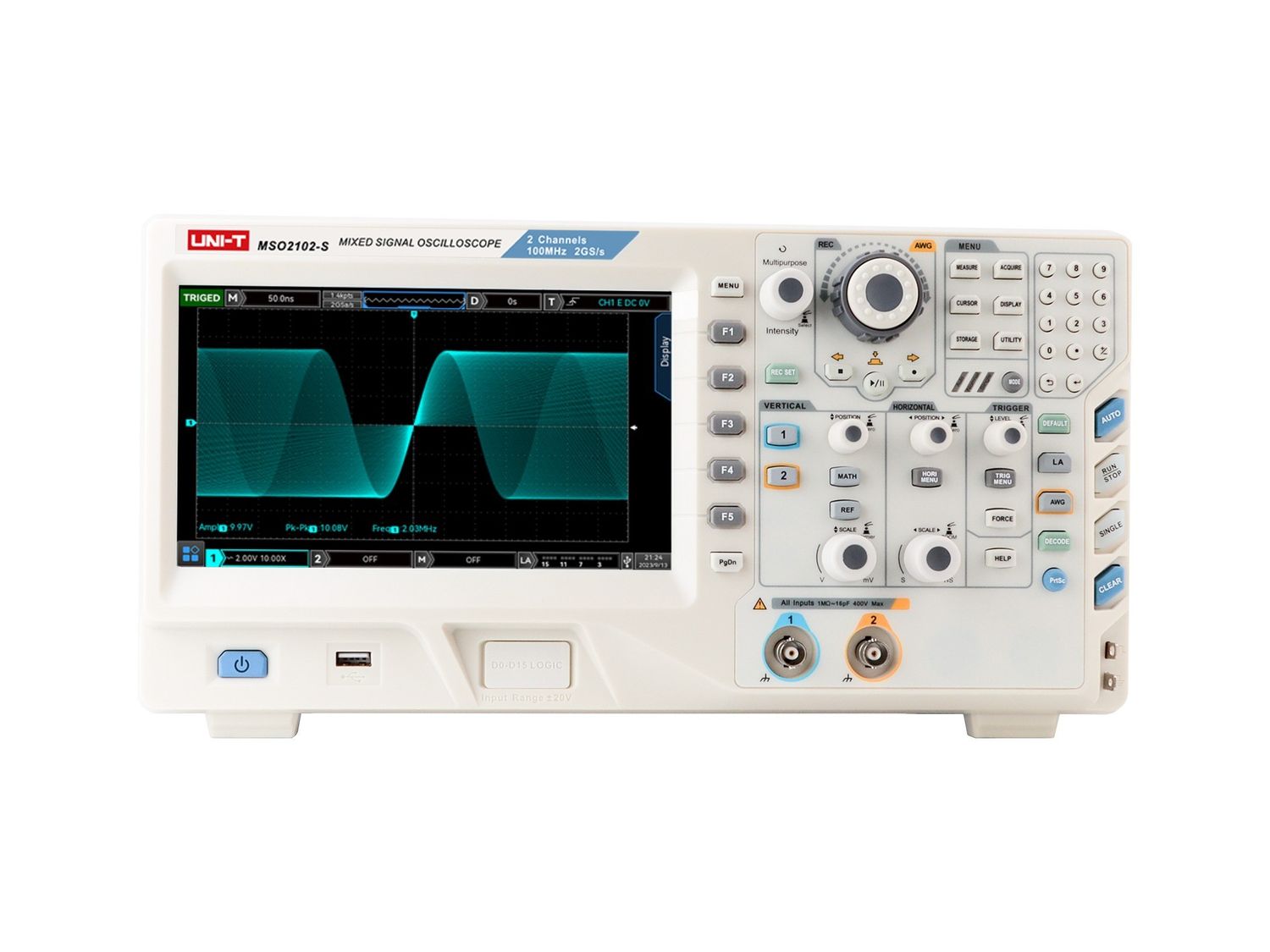

Unlock Precision Measurement with the UNI-T MSO2102-S Mixed Signal Oscilloscope (MSO)

MSO2102-S Oscilloscope Channel split screen function

When it comes to precision measurement and analysis, the UNI-T MSO2102-S Mixed Signal Oscilloscope (MSO) stands out as a multifunctional powerhouse. Powered by UNI-T's original Ultra Phosphor technology, it seamlessly combines ease of use with outstanding technical capabilities and a plethora of features. If you're an electrical engineer or professor in need of a versatile oscilloscope, this is your solution.

Key Features and Specifications:

• Versatility: Designed to cater to various fields, including communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, on-site maintenance, R&D, and education. The UNI-T MSO2102-S Mixed Signal Oscilloscope is your trusted companion for design, debugging, and testing.
• Signal Precision: The UNI-T MSO2102-S Mixed Signal Oscilloscope Fast Acquire technology ensures accurate capture of abnormal events such as video, jitter, noise, and low-wave signals, empowering you to work with confidence.


MSO2102-S Oscilloscope XY mode

• Multi-Channel Capability: With two analog channels and an impressive 16 digital channels (with the included UT-M15 Logic probe), you have the versatility you need to handle complex tasks.
• Built-in Arbitrary Waveform Generator (AWG): The UNI-T MSO2102-S Mixed Signal Oscilloscope boasts a dual-channel function arbitrary waveform generator capable of producing sine waves, square waves, ramp waves, pulse waves, arbitrary waves, noise, and DC signals. The maximum frequency output of the sine wave is 50MHz.
• Bode Plot: Utilize the AWG on the UNI-T MSO2102-S Mixed Signal Oscilloscope to characterize the frequency response of electronic designs with ease, whether it's passive filters, amplifier circuits, or switch-mode power supplies.
• Advanced FFT Analysis: Transform time-domain signals into frequency-domain signals using Fast Fourier Transform (FFT). With the UNI-T MSO2102-S Mixed Signal Oscilloscope you can easily analyze harmonic content, distortion, noise in DC power supplies, and perform vibration analysis.
• Rich Trigger Functions: Capture and display signals accurately on the UNI-T MSO2102-S Mixed Signal Oscilloscope with a wide range of advanced trigger options, including edge, pulse width, video, and more.
• Logic Analysis Probe UT-M15: For digital signal analysis, the included UT-M15 has two 8-channel probes, simplifying connection to the device under test. It offers excellent electrical characteristics with an input impedance of 101kΩ and a capacitive load of only 9.0pF.
• Robust Logic Analyzer: Ideal for parallel bus analysis, protocol decoding, and timing measurements. The UNI-T MSO2102-S Mixed Signal Oscilloscope offers features like Rank Selection, Data Bus Setting, Group Setting, and Event Lists to enhance your analysis capabilities.


MSO2102-S Oscilloscope AWG Function

• Full Memory Hardware Decoding: Experience lightning-fast decoding with the UNI-T MSO2102-S Mixed Signal Oscilloscope’s deep storage of 56Mpts, enabling real-time decoding and efficient problem diagnosis.
• Enhanced Memory Depth: The UNI-T MSO2102-S Mixed Signal Oscilloscope maintains a high sampling rate across a wider time base range, improving the capture rate of abnormal waveforms.
• Channel Split Screen: Utilize Multi-Scopes technology for a user-friendly waveform display. Customize each channel of the UNI-T MSO2102-S Mixed Signal Oscilloscope with different frequency, amplitude, and waveform settings.
• 256-Level Grayscale Display: With Ultra Phosphor display technology, the UNI-T MSO2102-S Mixed Signal Oscilloscope allows you to observe waveform details and any abnormalities with ease.
• Ultra-High Capture Rate: Innovative digital signal parallel processing technology enables an ultra-high capture rate of 200,000wfms/s in normal sampling and 1,000,000wfms/s in Fast Acquire mode, ensuring the UNI-T MSO2102-S Mixed Signal Oscilloscope can provide efficient capture of occasional signals.


MSO2102-S Oscilloscope Area trigger

• XY Mode: The UNI-T MSO2102-S Mixed Signal Oscilloscope allows you to quickly measure phase differences between two signals with XY mode cursor measurement.
• Rich Measurement Functions: Benefit from up to 36 automatic parameter measurements with the UNI-T MSO2102-S Mixed Signal Oscilloscope, enhancing measurement efficiency and accuracy.
• User-Friendly Interface: The UNI-T MSO2102-S Mixed Signal Oscilloscope 8-inch touch screen supports a variety of gesture operations, making measurements smoother and more convenient. Traditional button and knob operation options are also available, ensuring an optimized interactive experience.

Elevate your electrical engineering work with the UNI-T MSO2102-S Mixed Signal Oscilloscope (MSO). Purchase now to experience precision like never before!
