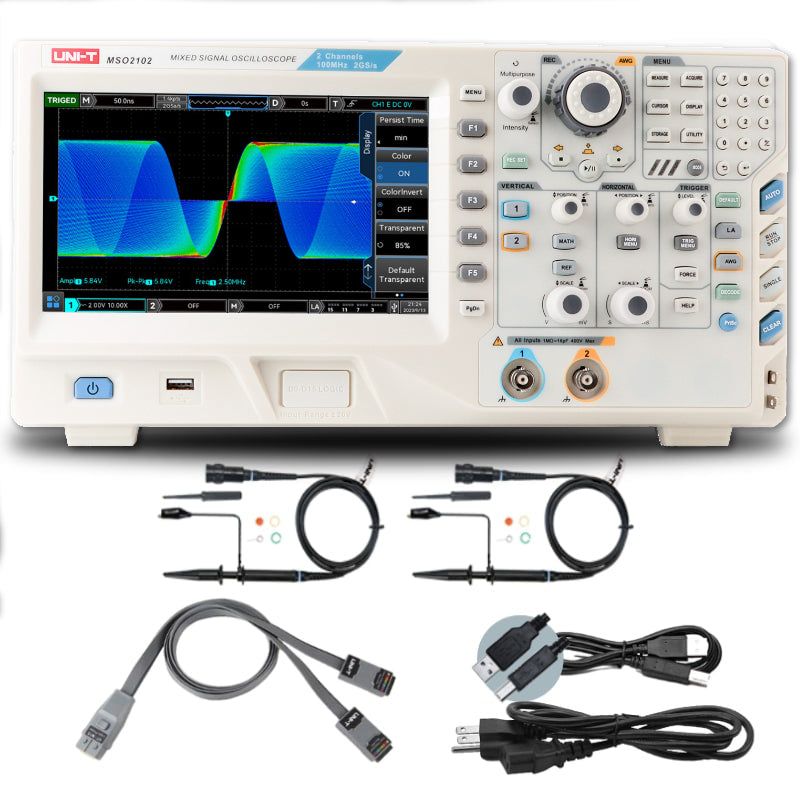

MSO2102 100 MHz 2+16Ch Mixed Signal Oscilloscope
$999.00
100 MHz 2+16 channel mixed signal oscilloscope with 2 GSa/s sample rate and 56 Mpts memory depth. Suited for production, field service, and automotive engineers.
Decode Bundle
Add-on Options
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
MSO2102 100 MHz 2+16Ch Mixed Signal Oscilloscope
Product Details
UPC: 6935750521380
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://instruments.uni-trend.com/download?cate=74
Equipment Type: Digital Oscilloscopes
The MSO2102 is a 100 MHz two-channel mixed signal oscilloscope and the entry model of the MSO2000 line. It provides a 2 GSa/s real-time sample rate, 56 Mpts of acquisition memory, and Ultra Phosphor 2.0 waveform display on a 7-inch 800×480 TFT LCD. The calculated rise time is ≤ 3.5 ns.
The 8-bit front end includes ERES processing, edge/pulse/video/slope/timeout/runt/pattern/Nth-edge triggering, 30 automated measurements, and serial-bus trigger and decode for RS-232/UART, I²C, and SPI standard. An optional 16-channel logic analyzer pod extends the channel set to 2+16 mixed-signal capture. Remote control is available via USB-Device and LAN with SCPI and driverless web-browser access.
It suits benchtop debug and education applications where a compact 100 MHz mixed-signal footprint and standard protocol decode are the primary requirements.
Key Features
- Bandwidth=100MHz
- Channels=2Ch+16D
- Sample Rate=2GSa/s
- Memory Depth=56Mpts
- Vertical Resolution=8 bits
- Logic Probes=Yes
Specifications
| Bandwidth | 100 MHz |
| Channels | 2Ch+16D |
| Sample Rate | 2GSa/s |
| Memory Depth | 56Mpts |
| Vertical Resolution | 8 bits |
| Vertical Scale 1M | 500µV/div to 20 V/div |
| Capture Rate | 200,000 wfms/s |
| Refresh Rate | 1,000,000 wfms/s |
| Frequency Counter | 7-bit |
| Auto Measurements | 36 |
| Logic Probes | Included |
| Optional Bus Protocols | RS232, UART, I2C, SPI, CAN, CAN-FD, LIN, FlexRay |
| Protocol Analysis Count | 7 |
| Display Type | TFT LCD |
| Display Size | 8in |
| Touch Screen | Yes |
| Interface | LAN, USB-Device, VGA, EXT, AUX |
