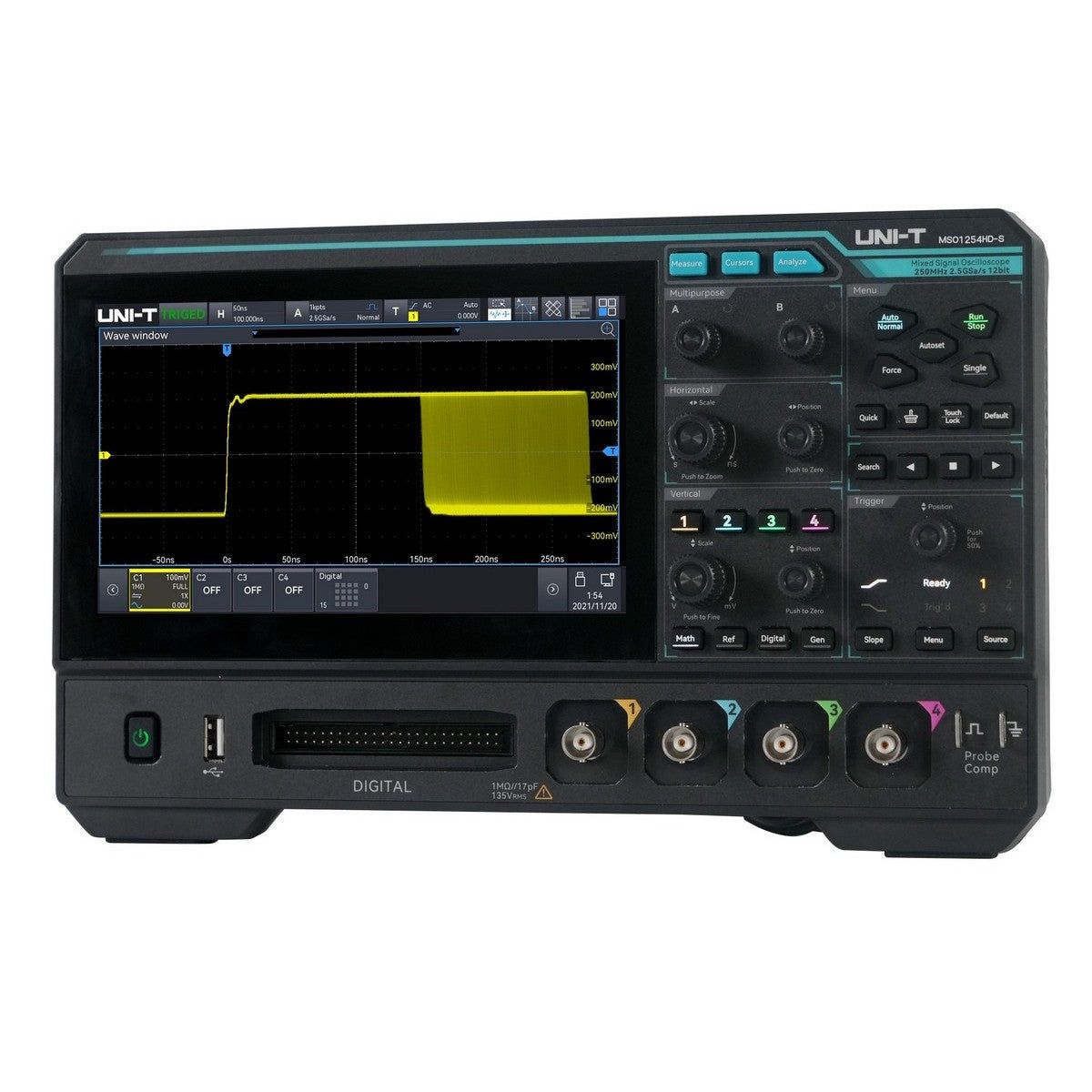

MSO1254HD-S 250 MHz 4Ch 12-Bit MSO with Signal Generator

The MSO1254HD-S is a 250 MHz, 4-channel mixed signal oscilloscope built on a native 12-bit ADC architecture with an integrated 1-channel 25 MHz arbitrary waveform generator. It samples at 2.5 GSa/s with 100 Mpts of memory depth per channel and captures up to 1,000,000 wfms/s on a 7-inch capacitive touchscreen with Ultra Phosphor 3.0 acquisition. It is positioned for embedded prototyping, curriculum-grade laboratory work, and stimulus-response testing in a single instrument.

The native 12-bit ADC resolves 4,096 vertical levels at the full 250 MHz bandwidth without ERES averaging or a sample-rate trade, while the built-in 25 MHz generator drives the device under test from the same front panel and enables Bode plot analysis of power-supply control loops and filter circuits without a second instrument. Standard protocol decoding covers RS-232/UART, I²C, SPI, RS-422, RS-485, CAN, CAN-FD, LIN, and Audio at no added cost, and an optional 16-channel logic probe pod adds mixed-signal debugging. A built-in spectrum analyzer (FFT up to 1 Mpts), 12-parameter power analysis, and 56 automated measurements with statistics are included. Connectivity covers USB Host, USB Device, LAN, AUX Out, HDMI, and Generator Out.

The platform consolidates oscilloscope, optional logic analyzer, spectrum analyzer, protocol analyzer, digital voltmeter, frequency counter, arbitrary waveform generator, Bode plotter, and power analyzer functions in one instrument, suited to embedded-systems development, switching-power analysis, precision sensor work, and teaching benches.

Key Features

• Bandwidth=250MHz
• Channels=4Ch+16D (opt)
• Sample Rate=2.5GSa/s
• Memory Depth=100Mpts
• Vertical Resolution=12 bits
• Logic Probes=Optional
