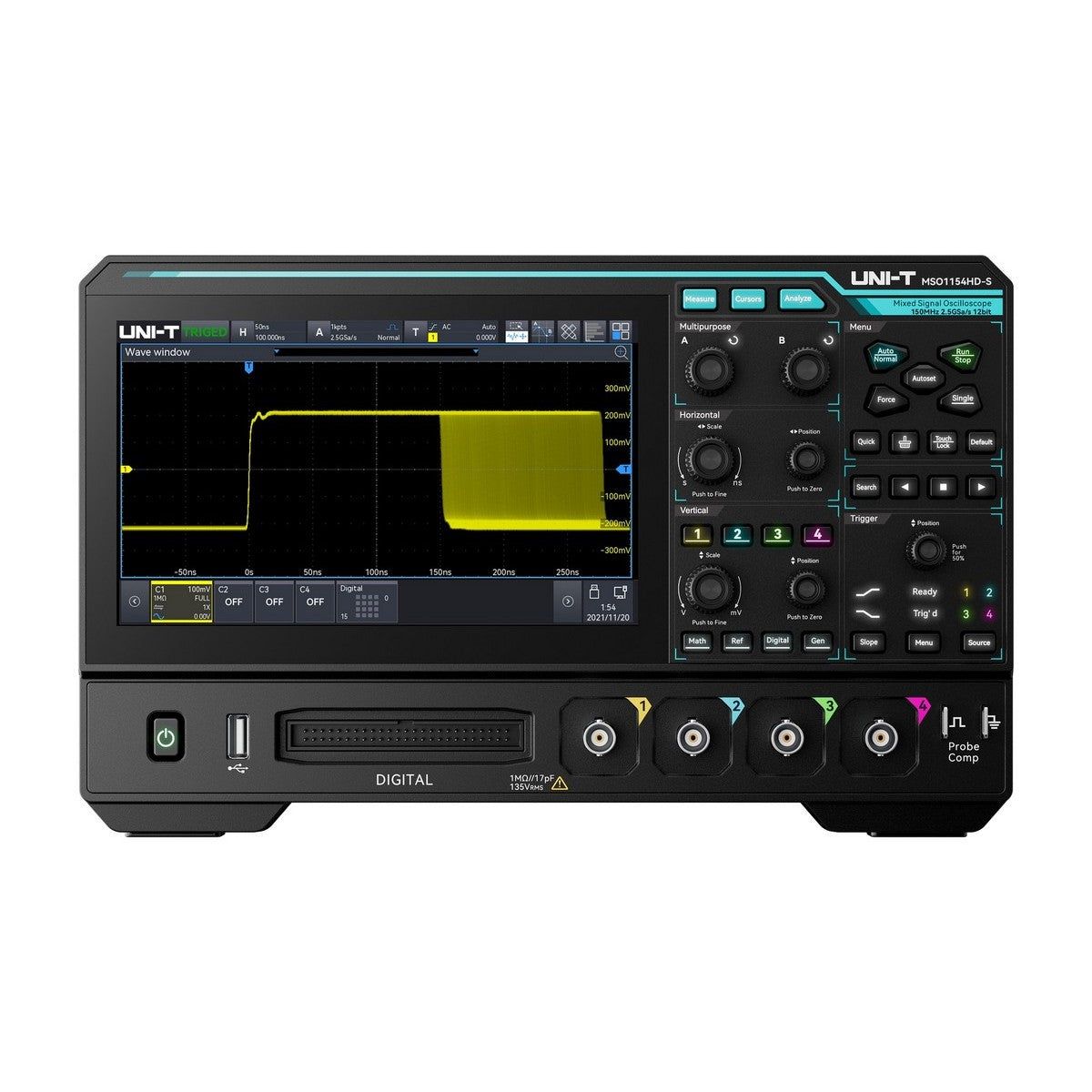

MSO1154HD 150 MHz 4Ch 12-Bit Mixed Signal Oscilloscope

The MSO1154HD is a 150 MHz, 4-channel mixed signal oscilloscope built on a native 12-bit ADC architecture. It samples at 2.5 GSa/s with 100 Mpts of memory depth per channel and captures up to 1,000,000 wfms/s on a 7-inch capacitive touchscreen with Ultra Phosphor 3.0 acquisition. It is positioned for embedded prototyping and curriculum-grade laboratory work.

The native 12-bit ADC resolves 4,096 vertical levels at the full 150 MHz bandwidth without ERES averaging or a sample-rate trade, so small ripple on a switching rail and subtle amplifier gain compression appear directly on screen. Standard protocol decoding covers RS-232/UART, I²C, SPI, RS-422, RS-485, CAN, CAN-FD, LIN, and Audio at no added cost, and an optional 16-channel logic probe pod adds mixed-signal debugging. A built-in spectrum analyzer (FFT up to 1 Mpts), 12-parameter power analysis, and 56 automated measurements with statistics are included. Connectivity covers USB Host, USB Device, LAN, AUX Out, and HDMI.

The platform consolidates oscilloscope, optional logic analyzer, spectrum analyzer, protocol analyzer, digital voltmeter, frequency counter, and power analyzer functions in one instrument, suited to embedded-systems development, switching-power analysis, precision sensor work, and teaching benches.

Key Features

• Bandwidth=150MHz
• Channels=4Ch+16D (opt)
• Sample Rate=2.5GSa/s
• Memory Depth=100Mpts
• Vertical Resolution=12 bits
• Logic Probes=Optional
